Anti-terrorism Fire Suppression System For Mining Vehicles

UN ECE R107 Anti-terrorism Fire Suppression System For Mining Vehicles

UN ECE R107 Certificated Anti-terrorism Fire Suppression System For Mining Vehicles are most commonly used in different mining vehicles, different industrial equipment, such as truck, tractor, bus, military vehicle, on-road equipment and off-road equipment. Because they are non-conductive, they can be utilized to not only quell fires in ordinary combustible materials, but also on flammable liquid fires that involve live electrical equipment.

Working Principle of pneumatic model:

Detection Tube ruptures to hole when temperature reach 140℃, and release pressure through the hole.(Or pushing the manual button of detection tube,pressure releasing from themanual button.

The resulting drop in pressure causes the head valve to be activated. At the same time the fire arlar was activated.

Valve was opened and agent was discharged through the discharge tubing to the nozzles.

Agent covering the area and suppressing the fire quickly and thoroughly.

This system is totally automatic and is totally independent of electricity.

Working Principle of electrical model:

There is 3 temperature sensor installed in the engine room, temperature sensor feedback the the temperature to the control panel. The control panel can indicate the temperature at anytime. The control panel was installed in the driver room, driver can see the temperature at anytime.

Once the Temperature of engine room increase to 100℃, the control panel will activate the fire alarm. Driver will stop and check the situation. If necessary, driver will push the manual button on the control panel to activate the system.

Once the temperature still increasing, and reach to 140℃, the temperature sensor feedback the signal to control panel, the control panel will activate the solenoid Valve, the solenoid Valve open and discharge agent to extinguish fire.

It can be used to different Mining Vehicle, such as loading machine,wheel loader, excavator, bulldozer, and other Construction Vehicles.

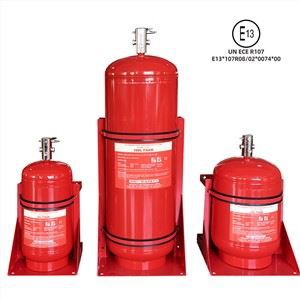

UN ECE R107 & CE Certification;

Fast detection and high efficiency;

Rechargeable;

Adapted to harsh environments;

Lightweight, not burdensome to equipment;

Simple installation and maintenance;

Control panel shows real-time temperature;

Available in many different agents: dry powder, foam water mist, etc

Suitable for Heavy equipment, Mining Vehicles, Ship, Boat, Truck, wheel loader, Excavator, Bus, Rooter, etc
