Products Description

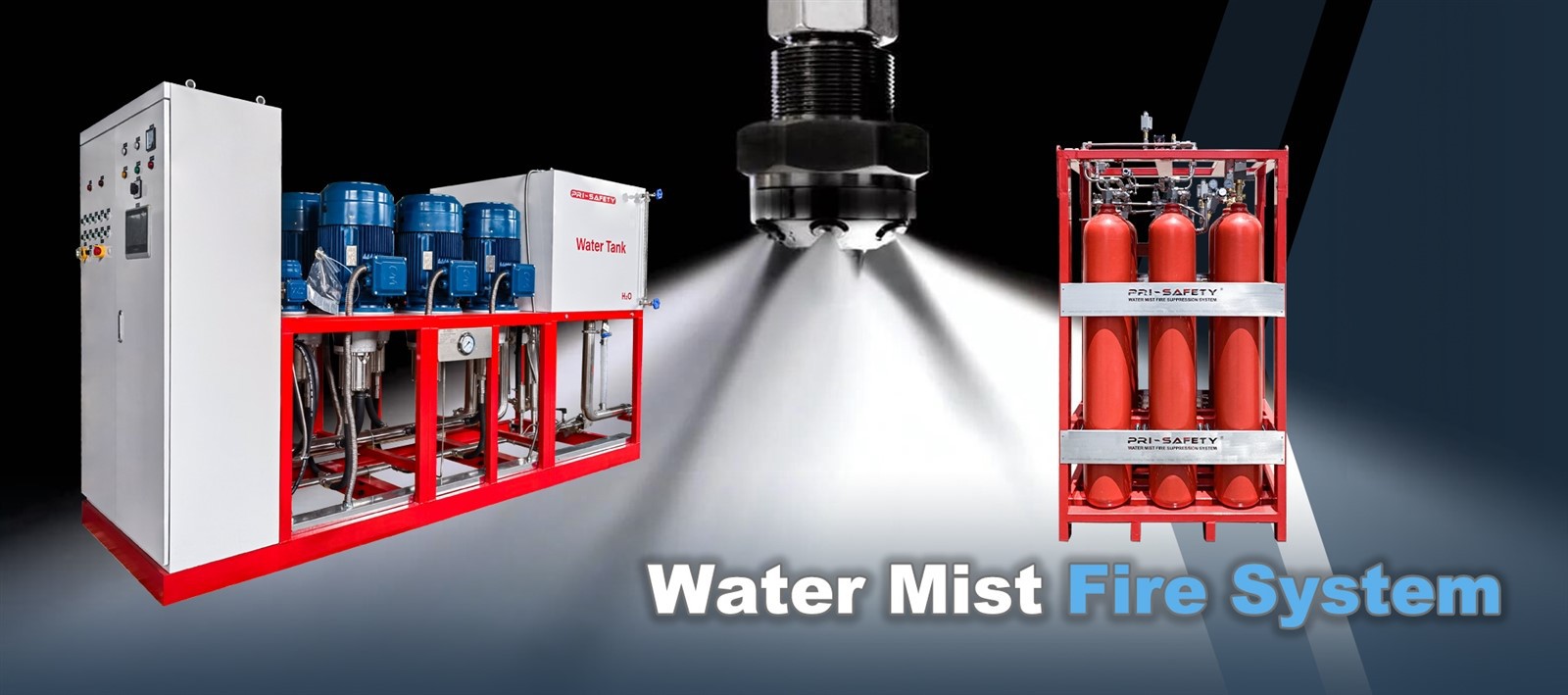

A water mist system is a fire protection system which uses very fine water sprays (i.e. water mist). The small water droplets allow the water mist to control, suppress or extinguish fires by:
- Cooling both the flame and surrounding gases by evaporation
- Displacing oxygen by evaporation
- Attenuating radiant heat by the small droplets themselves
- Immediate activation
- High efficiency in the suppression of a wide variety of fires
- Minimized water damage
- Environmentally sound characteristics
- No toxic problems
| ADG Container | |
|
Brand
|
PRI-SAFETY |
|
Low pressure system
|
≤175psi
|
|
Intermediate pressure system
|
175psi~500psi
|
|
High pressure system
|
≥500psi
|
Specifications

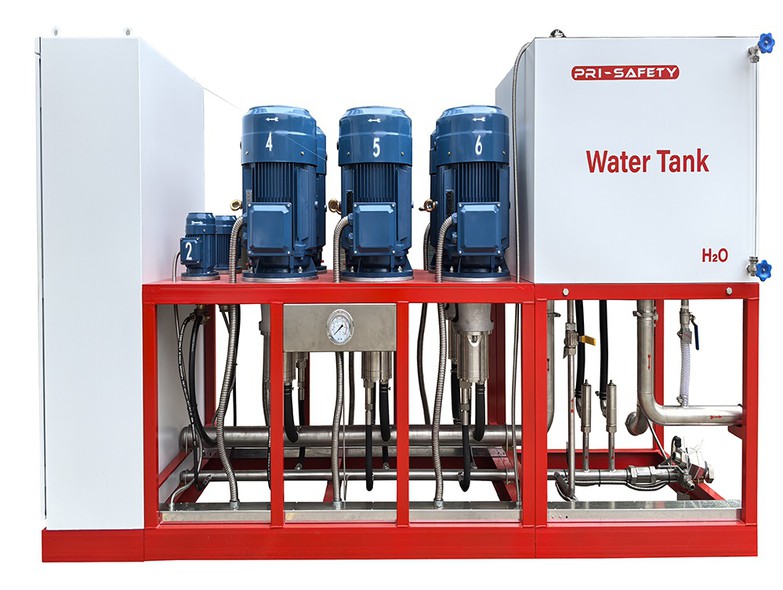

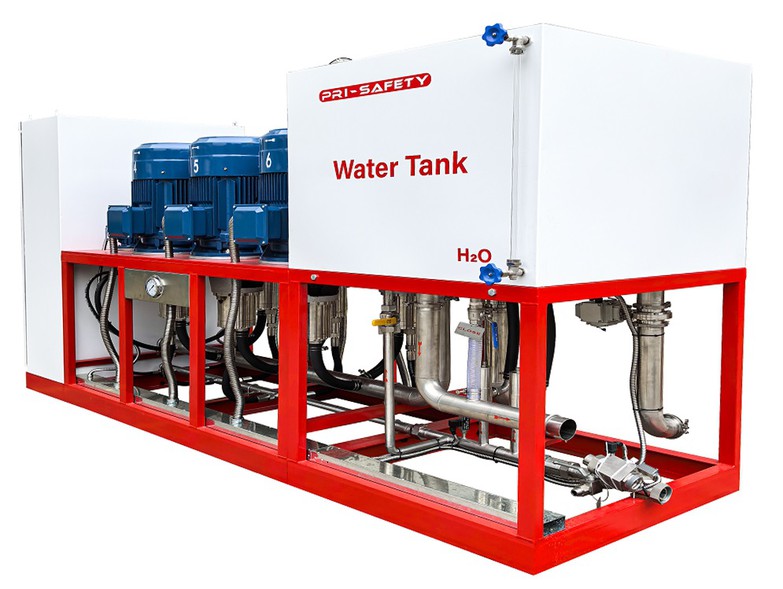

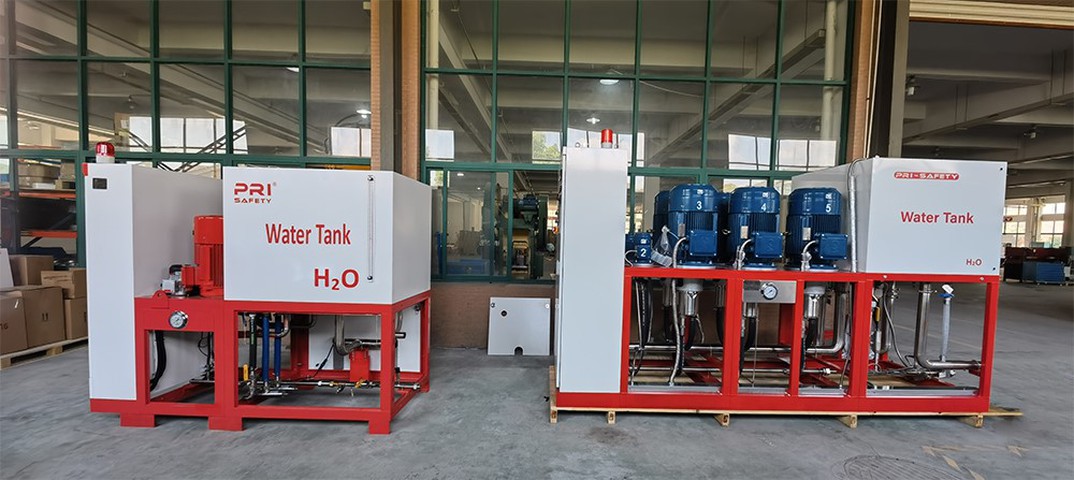

Specifications for Single High Pressure Water Mist Pump, 112L/min, 14Mpa, 30kw
| High Pressure Water Mist Pump, Single Pump-112L/min, 14Mpa, 30kw | |||||
|
Code Number |
Working Pressure |
Flow(L/Min) | Pump Speed(r/Min) |
Dimension(mm) |
Note |
|
WM/PRI-112/14 |
14MPa |
112 |
1470 |
2200x1200x2000 |
1 Work 1 Reserve |
|
WM/PRI-224/14 |
14MPa |
224 |
1470 |
2650x1200x2000 |
2 Work 1 Reserve |
|
WM/PRI-336/14 |
14MPa |
336 |
1470 |
2650x1200x2000 |
3 Work 1 Reserve |
|
WM/PRI-448/14 |
14MPa |
448 |
1470 |
3100x1200x2000 |
4 Work 1 Reserve |
|
WM/PRI-560/14 |
14MPa |
560 |
1470 |
3100x1200x2000 |
5 Work 1 Reserve |
|
WM/PRI-672/14 |
14MPa |
672 |
1470 |
3550x1200x2000 |
6 Work 1 Reserve |
|
WM/PRI-784/14 |
14MPa |
784 |
1470 |
3550x1200x2000 |
7 Work 1 Reserve |
Specifications for Single High Pressure Water Mist Pump, 134L/min, 16Mpa, 45kw
| High Pressure Water Mist Pump, Single Pump-112L/min, 14Mpa, 30kw | |||||
|
Code Number |
Working Pressure |
Flow(L/Min) | Pump Speed(r/Min) |
Dimension(mm) |
Note |
|
WM/PRI-134/16 |
16MPa |
134 |
1470 |
2200x1200x2000 |
1 Work 1 Reserve |
|
WM/PRI-268/16 |
16MPa |
268 |
1470 |
2650x1200x2000 |
2 Work 1 Reserve |
|
WM/PRI-402/14 |
16MPa |
402 |
1470 |
2650x1200x2000 |
3 Work 1 Reserve |
|
WM/PRI-536/14 |
16MPa |
536 |
1470 |
3100x1200x2000 |
4 Work 1 Reserve |
|
WM/PRI-670/14 |
16MPa |
670 |
1470 |
3100x1200x2000 |
5 Work 1 Reserve |
|
WM/PRI-804/14 |
16MPa |
804 |
1470 |
3550x1200x2000 |
6 Work 1 Reserve |
|
WM/PRI-938/14 |
16MPa |
938 |
1470 |
3550x1200x2000 |
7 Work 1 Reserve |
| Open Type Nozzle Technical Parameters | |||
|
Code Number |
Flow Rate (K) |
Working Pressure(Mpa) |
WorkingFlow(L/Min) |
|
PRI/WM-N/T0.3/10 |
0.3 |
10.0-14.0 |
3.0-3.5 |
|
PRI/WM-N/T0.5/10 |
0.5 |
10.0-14.0 |
5.0-5.9 |
|
PRI/WM-N/T0.7/10 |
0.7 |
10.0-14.0 |
7.0-8.3 |
|
PRI/WM-N/T0.9/10 |
0.9 |
10.0-14.0 |
9.0-10.6 |
|
PRI/WM-N/T1.0/10 |
1.0 |
10.0-14.0 |
10.0-11.8 |
|
PRI/WM-N/T1.2/10 |
1.2 |
10.0-14.0 |
12.0-14.2 |
|
PRI/WM-N/T1.5/10 |
1.5 |
10.0-14.0 |
15.0-17.7 |
|
PRI/WM-N/T1.7/10 |
1.7 |
10.0-14.0 |
17.0-20.1 |
|
PRI/WM-N/T2.0/10 |
2.0 |
10.0-14.0 |
20.0-23.7 |
|
PRI/WM-N/T2.5/10 |
2.5 |
5.0-10.0 |
12.5-29.6 |
|
PRI/WM-N/T3.0/10 |
3.0 |
5.0-10.0 |
15.0-35.5 |
|
PRI/WM-N/T3.5/10 |
3.5 |
5.0-10.0 |
17.5-41.4 |
|
PRI/WM-N/T4.0/10 |
4.0 |
3.5-10.0 |
14.0-47.3 |
|
PRI/WM-N/T4.5/10 |
4.5 |
3.5-10.0 |
15.8-53.2 |
|
PRI/WM-N/T5.0/10 |
5.0 |
3.5-10.0 |
17.5-59.2 |
|
PRI/WM-N/T5.5/10 |
5.5 |
3.5-10.0 |
19.3-65.1 |
CAD Drawings.
System Components
Key Components

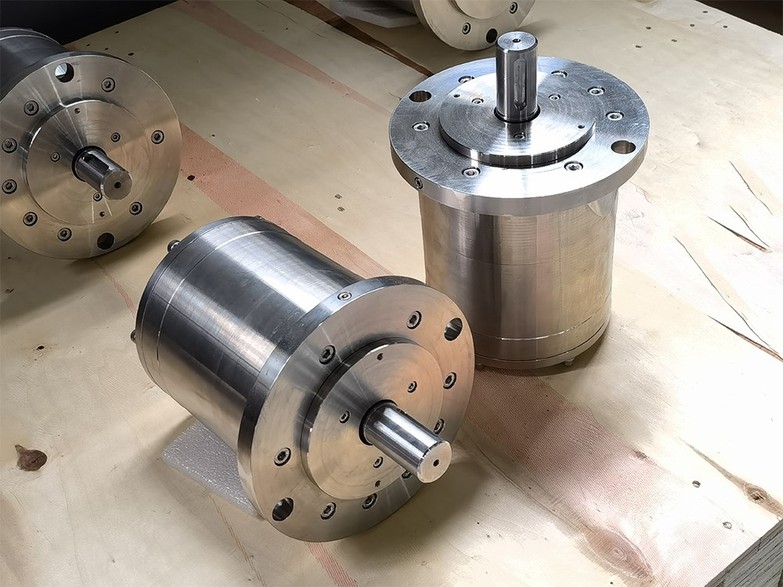

1. High-Pressure Pump: Generates pressure typically between 70-200 bar (1,000-3,000 psi), crucial for atomizing water into a fine mist.
2. Specialized Nozzles: Disperse water into microscopic droplets (10-200 microns), enhancing surface area for rapid heat absorption.
3. Piping Network: Stainless steel or durable materials to withstand high pressure.

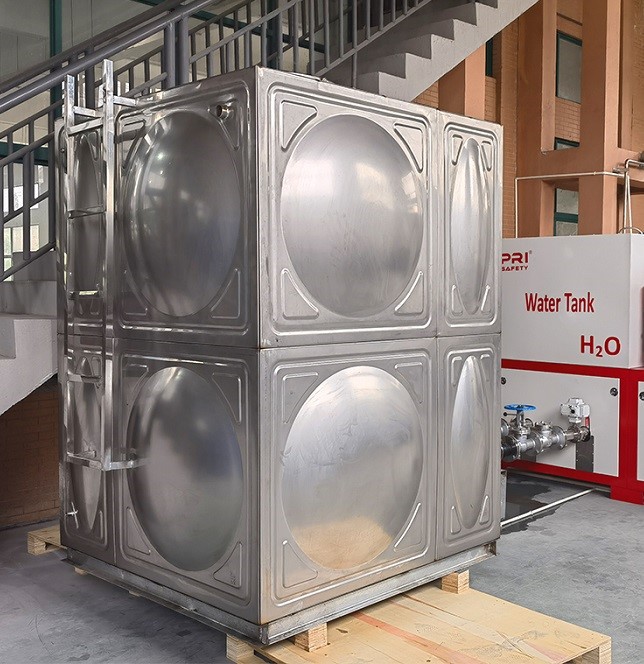

4. Water Supply: Tanks or connected sources, often requiring minimal water volume compared to traditional systems.
5. Control System: Integrates with fire detectors (heat/smoke) for automatic activation.
* Components: * Fire Detectors: Heat, smoke, or flame sensors for early detection.

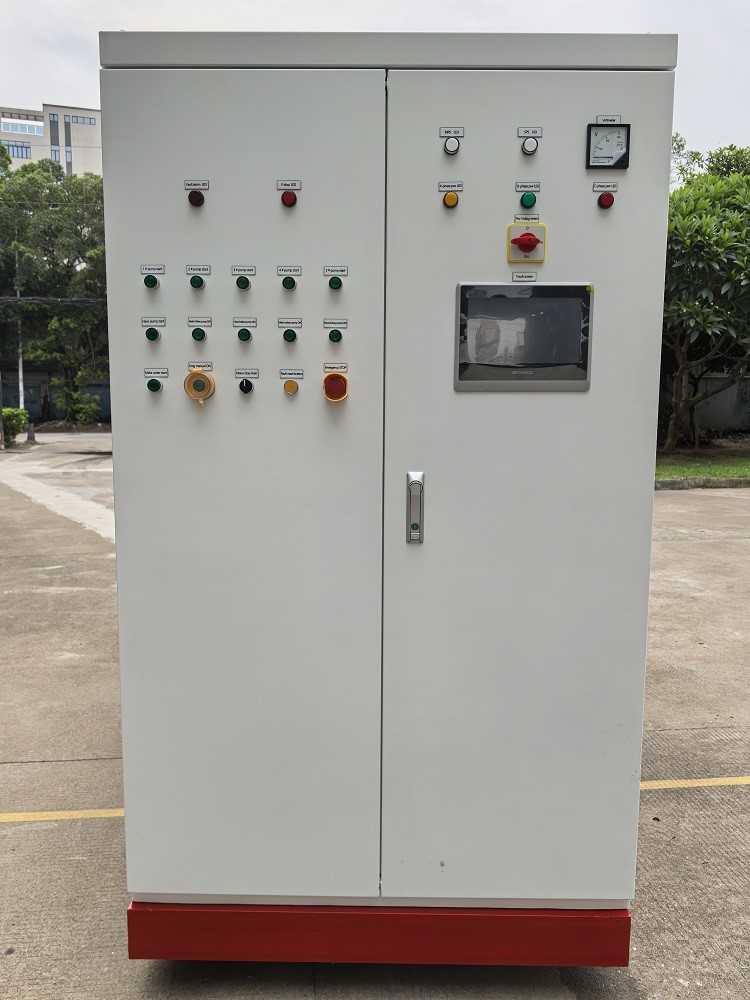

* Control Panel: Activates pumps, valves, and alarms based on sensor input.
* Zone Valves: Solenoid valves to direct water to specific areas.
* Integration: Often interfaces with building management systems (BMS) for centralized monitoring.
Installation Example
