Hfc227ea FM200 & Fe227 Suppression Systems Hfc - 227ea (FM 200) - Gas Based Suppression System

We are known as one of the most professional manufacturers and suppliers of various safety products in China. If the hfc227ea fm200 & fe227 suppression systems hfc - 227ea (fm 200) - gas based suppression system meets your requirement, welcome to the quality equipment made in China. Our factory will offer you one stop service and one year warranty.







                                                FM200 Fire Suppression System HFC227ea







PRI-SAFETY FM-200 (HFC-227ea) Fire Suppression System is an advanced clean agent fire protection solution developed for the rapid control of fires in environments containing high-value assets and mission-critical electrical equipment. Designed as a total flooding system, it complies with NFPA 2001 and widely recognized international fire safety standards.

FM-200 extinguishes fire by rapidly removing heat energy and disrupting the chemical reaction of combustion. This dual action enables extremely fast fire control at the incipient stage while maintaining oxygen levels within safe limits. As a result, the system is suitable for normally occupied areas and minimizes risk to personnel during discharge.

The system is highly effective against Class A and Class B fires, as well as fires involving energized electrical equipment (Class C / Class E). Typical applications include data centers, server and IT rooms, UPS and battery rooms, telecom facilities, electrical control rooms, and other critical infrastructure. Because FM-200 is electrically non-conductive and leaves no residue, it protects sensitive equipment from damage and eliminates the need for extensive cleanup after activation.

From a sustainability and operational perspective, FM-200 features zero ozone depletion potential and has a long history of global use in clean agent fire suppression systems. When engineered and installed correctly, FM-200 systems deliver high reliability, rapid response, and continuity of operations, reducing downtime and asset loss.


Automatic Control Mode
1. Fire detection devices, such as smoke and heat detectors, continuously monitor the protected enclosure. When fire conditions are identified, signals are sent to the fire alarm control panel.

2. The control panel confirms the fire event and activates a pre-discharge warning period of approximately 30 seconds, during which audible and visual alarms alert occupants.

3. Upon completion of the delay, FM-200 is released from stored-pressure cylinders through a dedicated piping and nozzle distribution network. The agent disperses quickly, achieving the required design concentration-typically within 10 seconds.

4. Fire suppression occurs through rapid heat absorption and interruption of the combustion process, effectively extinguishing flames before they spread.

5. After discharge, the protected equipment remains clean, dry, and operational, allowing fast system recovery and minimal business interruption.

Due to its speed, cleanliness, and proven reliability, the FM-200 Fire Suppression System remains a trusted solution for protecting critical facilities and sensitive electrical environments.






1. FM200 Cylinder Specification---4.2MPa



Code No.	Capacity (L)	Thread	Inner Dia. (mm)	Height(mm)	Weight(kg)	Max Working Pressure (Mpa)
C16/4.2-PRI	16L	PZ56/2-8UN.2A	300	330	18	4.2
C32/4.2-PRI	32L	PZ56/2-8UN.2A	300	620	30	4.2
C40/4.2-PRI	40L	PZ56/2-8UN.2A	300	747	39	4.2
C90/4.2-PRI	90L	PZ56/3-1/4"-8UN.2A	350	1125	57.5	4.2
C120/4.2-PRI	120L	M64×2/3-1/4"-8UN.2A	350	1430	67.1	4.2
C150/4.2-PRI	150L	M64×2/3-1/4"-8UN.2A	400	1395	92.1	4.2
C250/4.2-PRI	250L	M80×2/3-1/4"-8UN.2A	500	1500	195	4.2
C500/4.2-PRI	500L	M80×2/3-1/4"-8UN.2A	600	2140	280	4.2



2. Specification for Head Valve of FM200 Fire System (High Level Model)

3. Specification for Nozzles





1-Single Bottle Type FM200 Fire Suppression System







PRI-SAFETY single-bottle FM200 fire suppression system is advantageous for small, enclosed spaces due to its space efficiency, cost-effectiveness, and rapid response. With a simple and modular design, it suits areas like server rooms and control centers. Its quick deployment, reduced environmental impact, and ease of maintenance make it suitable for applications where a compact, efficient solution is essential.



2- Multiple Bottles Type FM200 Fire Suppression System





PRI-SAFETY Multiple-bottle FM200 fire suppression systems provide enhanced coverage, scalability, and redundancy for larger or complex environments. Their adaptability suits varied spaces, offering increased agent capacity and prolonged fire suppression capabilities. These systems are well-suited for areas with higher fire risks, such as industrial facilities, meeting specific safety regulations and codes. The versatility in design allows tailored configurations, optimizing discharge control for a targeted and effective response to fires. PRI-SAFETY team 'll offer you the advantageous, careful assessment of the protected environment , and give you the appropriate system size and configuration.





3-Single Bottle (With Pilot Bottle ) Type FM200 Fire Suppression System





PRI-SAFETY pilot-driven bottle type FM200 fire suppression system, featuring a dual-chamber design, provides rapid and targeted fire response. The pilot-driven system enables a quick response to fire incidents by using a smaller pilot bottle to initiate the release of the main FM200 suppressant bottle. This minimizes the time it takes for the system to activate, reducing potential fire damage. The pilot-driven design enhances safety by allowing the system to be activated remotely or automatically in response to fire detection, reducing the need for manual intervention in potentially hazardous situations. The pilot-driven FM200 system ensures the precise release of the FM200 suppressant, improving the effectiveness of fire suppression while minimizing the environmental impact. The pilot-driven FM200 system also minimizes false alarms by activating the main suppressant only when a confirmed fire is detected. Its dual-chamber design is space-efficient, ideal for installations with size constraints. Well-suited for various applications, including server rooms, control centers, or other enclosed spaces, where a rapid and targeted fire suppression response is crucial.



4-Multiple Bottle (With Pilot Bottle ) Type FM200 Fire Suppression System







PRI-SAFETY pilot-driven, multiple-bottle FM200 fire suppression system provides swift and precise responses to fires, activating multiple FM200 bottles simultaneously or sequentially. This design ensures quick and targeted suppressant release, making it ideal for larger or complex spaces. The inclusion of multiple bottles enhances system reliability through redundancy, ensuring continuous fire protection even if one bottle malfunctions. The system is easily scalable to adapt to changes in the protected area's size or layout, offering flexibility in deployment. With optimized discharge control, reduced environmental impact, and versatility in application, PRI-SAFETY pilot-driven, multiple-bottle FM200 system is well-suited for diverse environments, meeting safety standards and providing robust fire protection.



5-Single Cabinet FM200 Fire Suppression System







PRI-SAFETY FM200 fire suppression systems, available in single and multiple-cabinet configurations, offer distinct advantages with a focus on compact design and aesthetic integration.

PRI-SAFETY FM200 single-cabinet system boasts a compact design, ensuring efficient use of space. It is particularly suited for installations in server rooms and small enclosures where space optimization is crucial.

Cost-effectiveness-The simplified design of PRI-SAFETY FM200 single-cabinet system contributes to its cost-effectiveness, making it a budget-friendly choice for smaller spaces. Reduced components result in lower installation and maintenance costs.

Quick Deployment- With fewer components to manage, PRI-SAFETY FM200 single-cabinet system allows for rapid deployment. Its simplicity ensures a quick response to fire incidents, minimizing potential damage and downtime.

Environmental Considerations- FM200, known for its clean agent properties, leaves no residue. The single-cabinet system's precise discharge minimizes environmental impact, making it suitable for spaces with sensitive electronic equipment.





6- Multiple Cabinets FM200 Fire Suppression System







PRI-SAFETY FM200 multiple-cabinet system provides broader coverage, making it suitable for larger spaces or those with complex layouts. This ensures comprehensive fire protection, addressing the challenges of expansive environments.

Redundancy for Reliability- PRI-SAFETY FM200 multiple-cabinet system enhances the system's reliability. In the event of a malfunction or depletion in one cabinet, others seamlessly take over, ensuring continuous fire protection. This redundancy is crucial for maintaining system dependability.

Scalability with Neat Integration- Despite scalability, PRI-SAFETY FM200 multiple-cabinet system maintains a clean and uncluttered appearance. Its design allows for seamless integration into various environments, adapting to changes without sacrificing aesthetic appeal. Optimized Discharge Control- PRI-SAFETY FM200 multiple-cabinet system offers optimized control over each cabinet's discharge, ensuring a targeted and efficient response to fires. This precision is maintained while preserving a sleek and coordinated appearance. Versatility in Aesthetic Integration- PRI-SAFETY prioritizes designs that seamless Cabinet integrates with the surrounding environment, ensuring the fire suppression system complements the overall decor without being obtrusive.





7- Multiple Room Distribution FM200 Fire Suppression System







PRI-SAFETY Multiple Room Distribution FM200 Fire Suppression System provides comprehensive fire protection across multiple rooms or areas within a facility. This is crucial for environments with diverse functions or compartments, ensuring that each space is adequately safeguarded.

Flexible Zoning: The system allows for the creation of zones within the facility, enabling selective activation based on the location of a detected fire. This flexibility ensures that only the affected areas are targeted, minimizing damage and optimizing the use of the FM200 suppressant.

Customizable Design: The system can be customized to suit the layout and specific needs of the facility. This includes configuring the distribution of FM200 cylinders, detectors, and nozzles based on the unique characteristics of each room or compartment.



Reduced Installation Costs: The centralized nature of a multiple room distribution system often leads to reduced installation costs compared to individual systems for each room. This cost efficiency is advantageous for larger facilities with numerous compartments.



Optimized Agent Discharge: The system allows for the optimized discharge of the FM200 agent, ensuring that the suppressant is released precisely where it is needed. This targeted approach enhances the effectiveness of fire suppression while minimizing collateral damage.

Centralized Monitoring and Management: The system allows for centralized monitoring and management of fire protection measures. This centralization simplifies system supervision, maintenance, and compliance with safety standards







Multiple Room Distribution FM200 Fire Suppression System Components



1. FM200 Bottle Type Fire System With Head Valve & Solenoid Actuator & Pneumatic Actuator





2. FM200 Fire Suppression System Cabinet Type Components









FM200 Fire Suppression Systems;Since the fire suppression agent leaves no residue and requires no cleanup, it's ideal for use in：

• Data processing center
• Telecommunication facilities
• Control Panel Centre
• Electronic Computer center room
• Medical Equipment room
• The library, the Museum, The archives, The art Gallery
• Emergency Power Facilities
• The health-Care Center
• The hospital, the School, The university
• High-rise building
• Power Generator facility

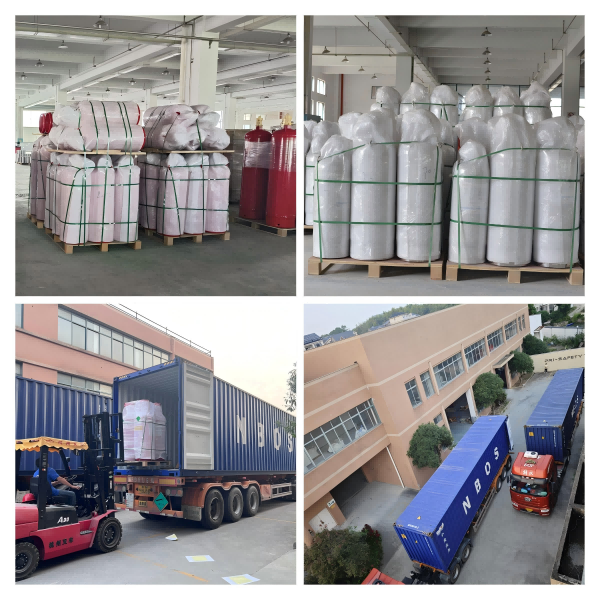

• Each products will be tested and inspected before packing-quality assurance.
• Environment friendly packaging -to help your business go green.
• Professional ,convenient and efficient packaging-to protect your goods well.
