UN ECE R107 Mining Machine Automatic Fire Suppression Systems
Production Introduction
UN ECE R107 Certificated Mining Machine Automatic Fire Suppression System are most commonly used in mining vehicles, industrial equipment, such as truck, tractor, bus, military vehicle, on-road equipment and off-road equipment. Because they are non-conductive, they can be utilized to not only quell fires in ordinary combustible materials, but also on flammable liquid fires that involve live electrical equipment.
Working Principle:
Detection Tube ruptures to hole when temperature reach 140℃, and release pressure through the hole.(Or pushing the manual button of detection tube,pressure releasing from themanual button.
The resulting drop in pressure causes the head valve to be activated. At the same time the fire arlar was activated. Valve was opened and agent was discharged through the discharge tubing to the nozzles.
Agent covering the area and suppressing the fire quickly and thoroughly.
This system is totally automatic and is totally independent of electricity.

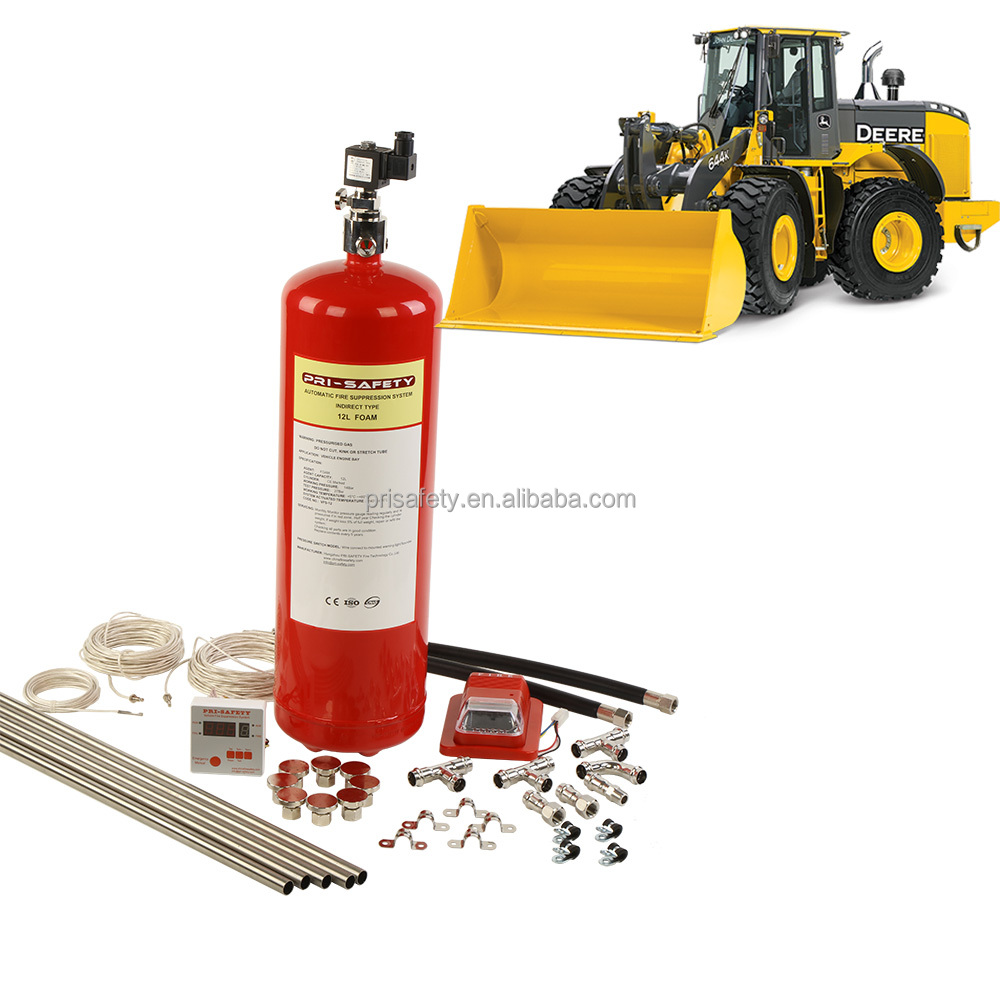

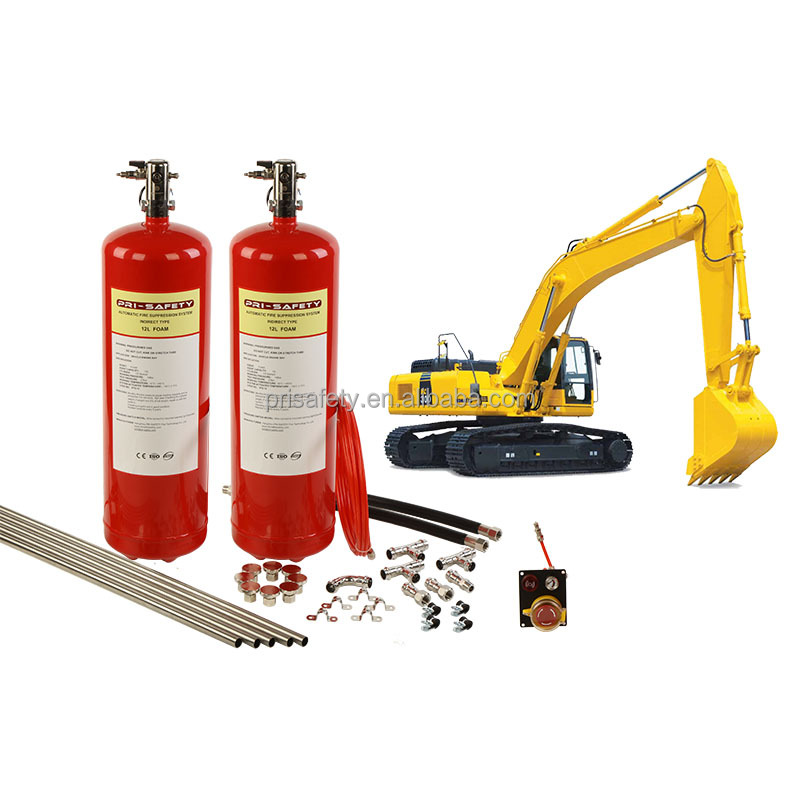

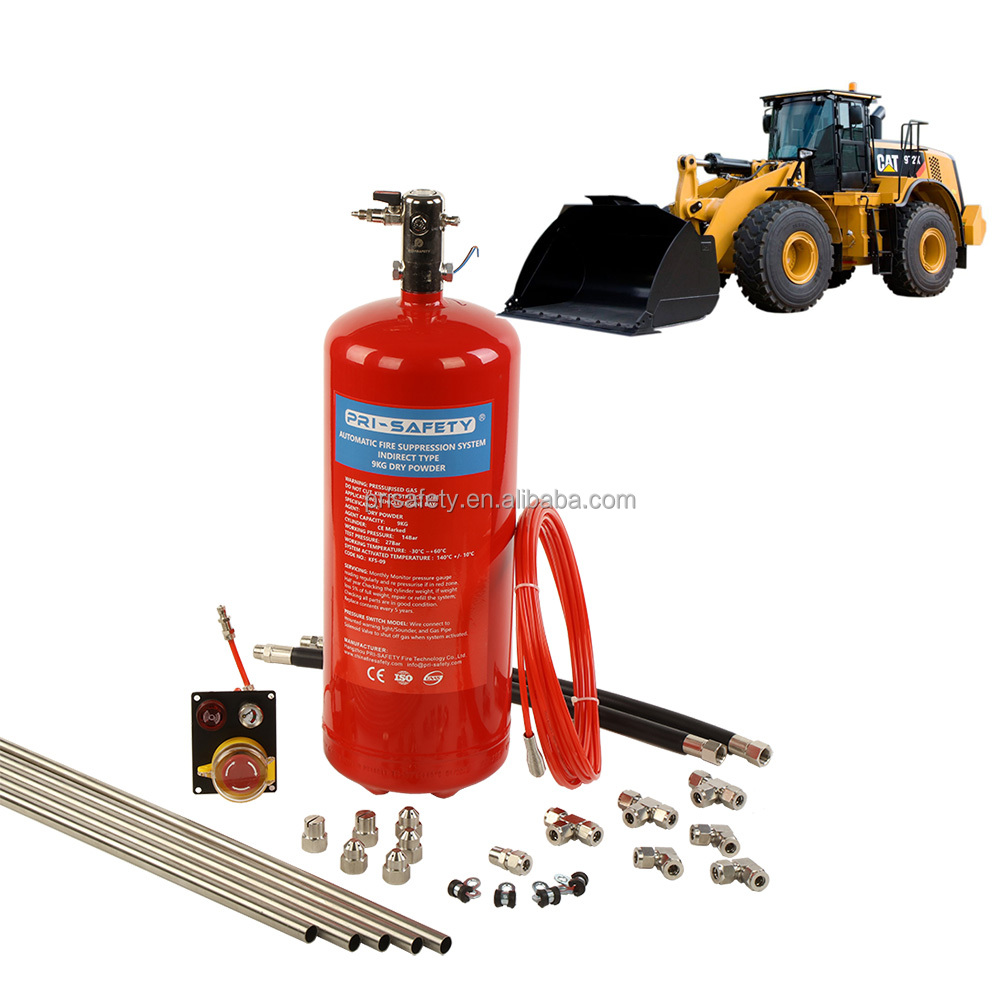

It can be used to loading machine,wheel loader, excavator, bulldozer, and other Construction Vehicles.
Production Features
UN ECE R107 & CE Certification;
Fast detection and high efficiency;
Rechargeable;
Adapted to harsh environments;
Lightweight, not burdensome to equipment;
Simple installation and maintenance;
Control panel shows real-time temperature;
Available in many different agents: dry powder, foam, water mist, novec1230, FM200,etc
Suitable for Heavy equipment, Mining Vehicles, Ship, Boat, Truck, wheel loader, Excavator, Bus, Rooter, etc
Specification
| PRI-SAFETY UN ECE R107 Certificated Mining Machine Automatic Fire Suppression System | |
| Brand Name | PRI-SAFETY |
| Filling Capacity | 6L, 9L, 12L, 18L, 20L, 25L, 50L,100L—FOAM (18L for 4CBM Engine Room) 6kg, 9kg, 12kg, 18kg, 25kg, 50kg,100kg—Dry Powder (9kg for 4CBM Engine Room) |
| Fire Agent | Dry Powder, Foam, Water Mist |
| Working Pressure | 14Bar |
| Testing Pressure | 27Bar |
| Cylinder Material | St12 red painting cylinder or stainless steel cylinder |
| Certification | CE Certification, UN ECE R107 Certification |
| System Activated Temperature | 140 degree celsius or Customized temperature |

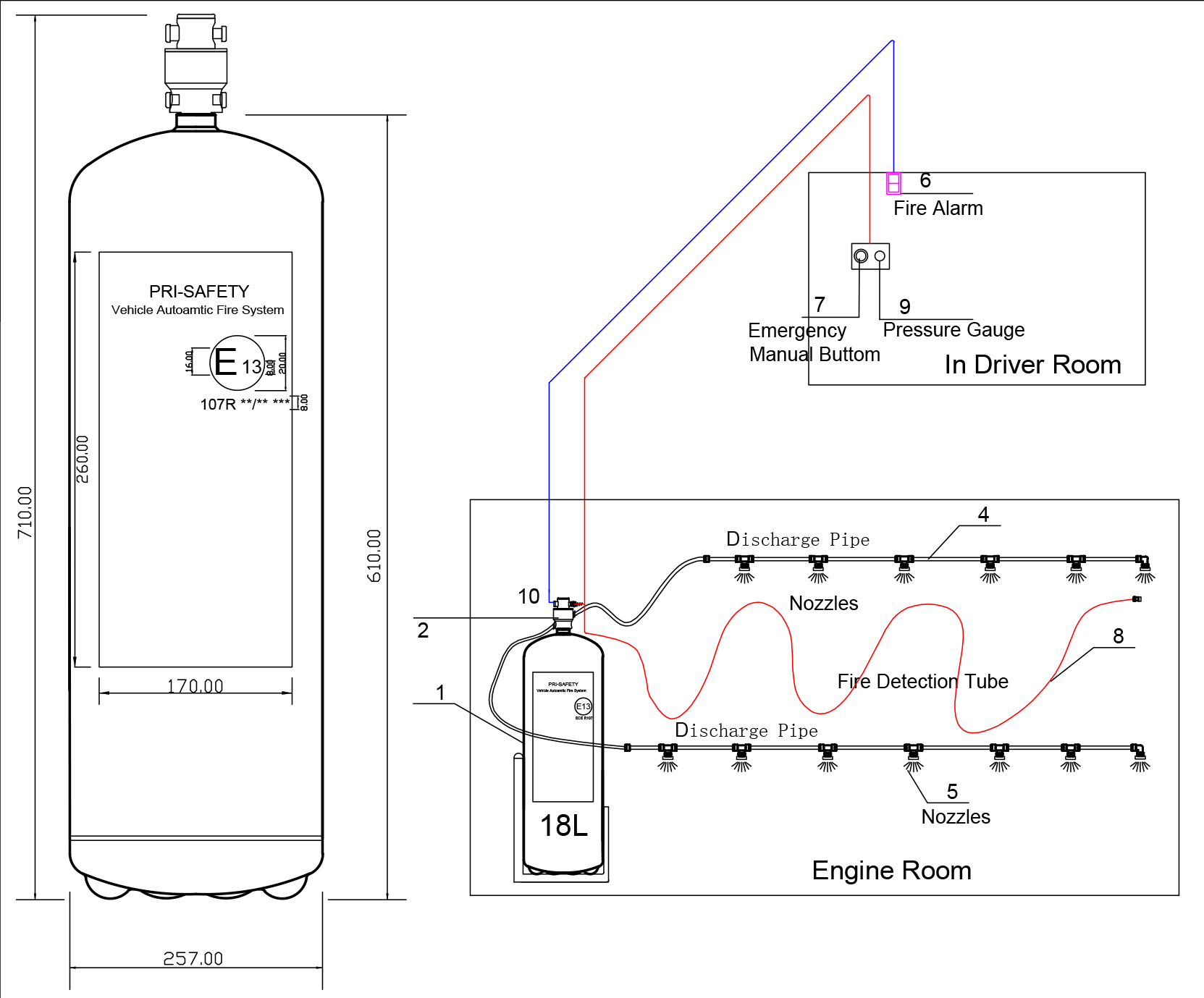

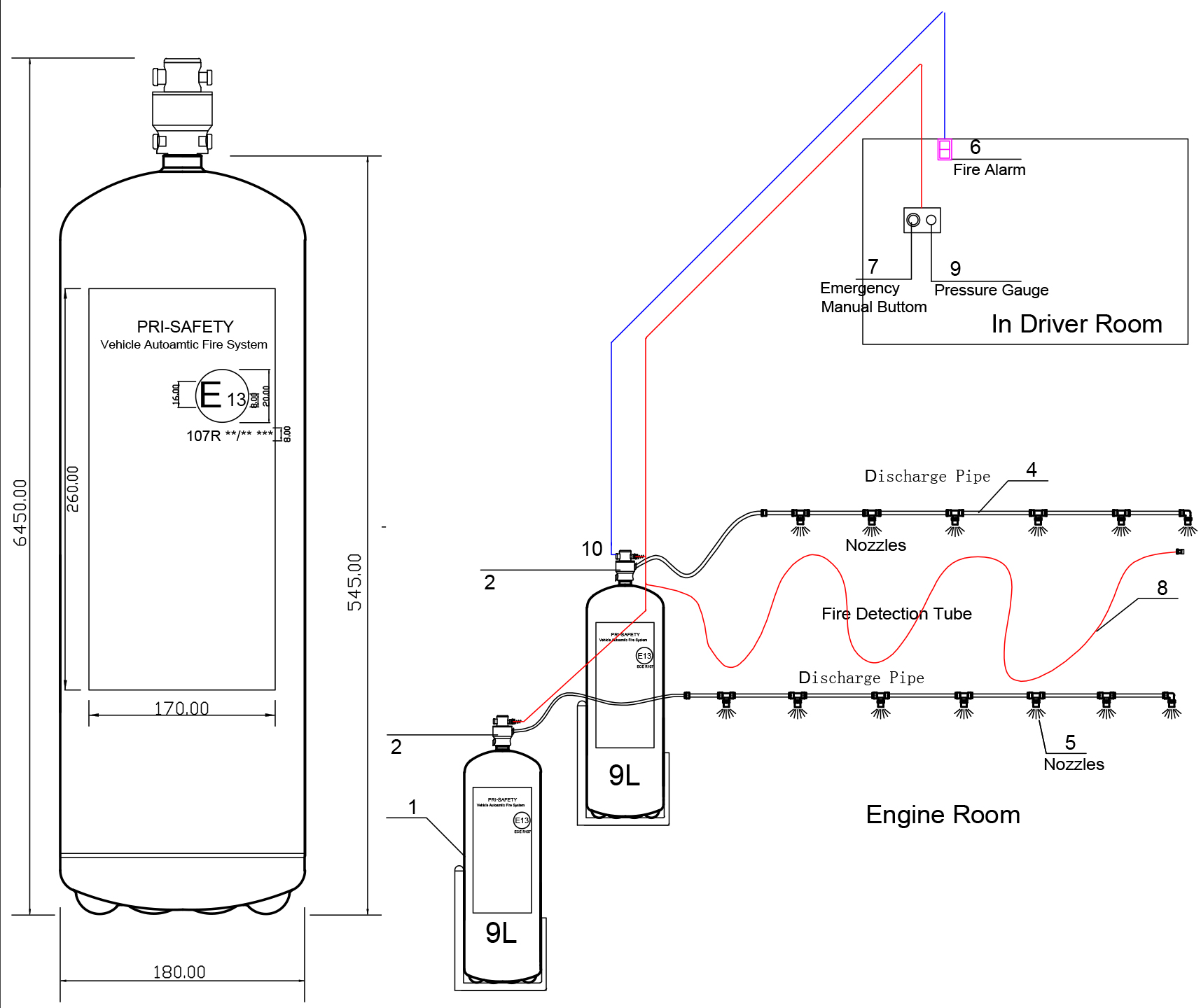

Drawing
Packing
Certification
Installation Example
