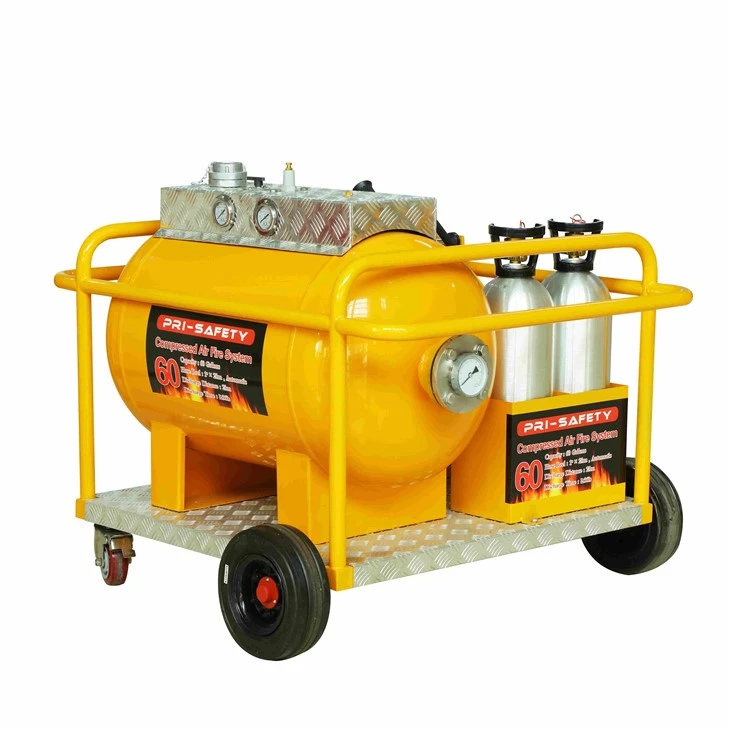

Hangzhou PRI-SAFETY Fire Technology Co., Ltd. is known as one of the most professional manufacturers and suppliers of various safety products in China. If the pri-safety 60 gallons cafs compressed air foam fire fighting system afff3% stainless steel material 150s-20mins 25m meets your requirement, welcome to buy quality equipment made in China here from our factory. Our factory will offer you one stop service and one year warranty.
Products Description
Compressed Air Foam Systems (CAFS)
CAFS Compressed Air Foam Fire System stands for CAFS Compressed Air Foam Fire Suppression System CAFS10 CAFS30 CAFS60 CAFS100, CAFS200 and is a system for the production of high-quality CAF (Compressed Air Foam), which is used to fight solid and liquid fires.
In the production of CAFS, the same three components are required (water, foam compound and air) as in the generation of conventional fire fighting foam. The crucial difference lies in the foam expansion of the water-foam compound mixture, which in the CAFS system does not take place passively through the injector principle on the nozzle, but rather actively in a mixing chamber in the system by means of compressed air.
Compressed Air Foam has become the go-to agent for flammable liquids and hydrocarbons response. The versatility of these systems have been proven by field tested use in multiple applications. Suited for offshore oil and gas facilities, rapid response vehicles (RRV), fuel storage locations, mining, marine vessels, racetracks, pressure pumping & hydraulic fracturing equipment, hydrocarbon storage tanks, saltwater disposal (SWT), airports, forestry, and general emergency fire response.
Applications for heliport and helideck fire protection, electric and fuel-driven hydraulic fracturing equipment, land production facilities, offshore topside deck arrangements, and aviation related hazards have specifically been increasing adoption of increased fire fighting capabilities. Our hand-truck, cart and skid mounted hose reel foam systems are self contained and stored energy, eliminating the need for an outside agent or propulsion source. Units are designed and completed to the same standards as our full line dry chemical powder, and foam equipment to make them withstand the harshest environmental conditions.
Product Features
The system stored clean agent with high pressure gas bottle,stable for using.
The tank is Stainless Steel material with red painting.
The compressed gas drive the agent discharge for a long Distance.
The system is with Automatic type hose reel.
Wheels can be disassembled for easy transport.
It can be fixed on motorbike,pickup,fire truck,etc.
It can be designed for different application.

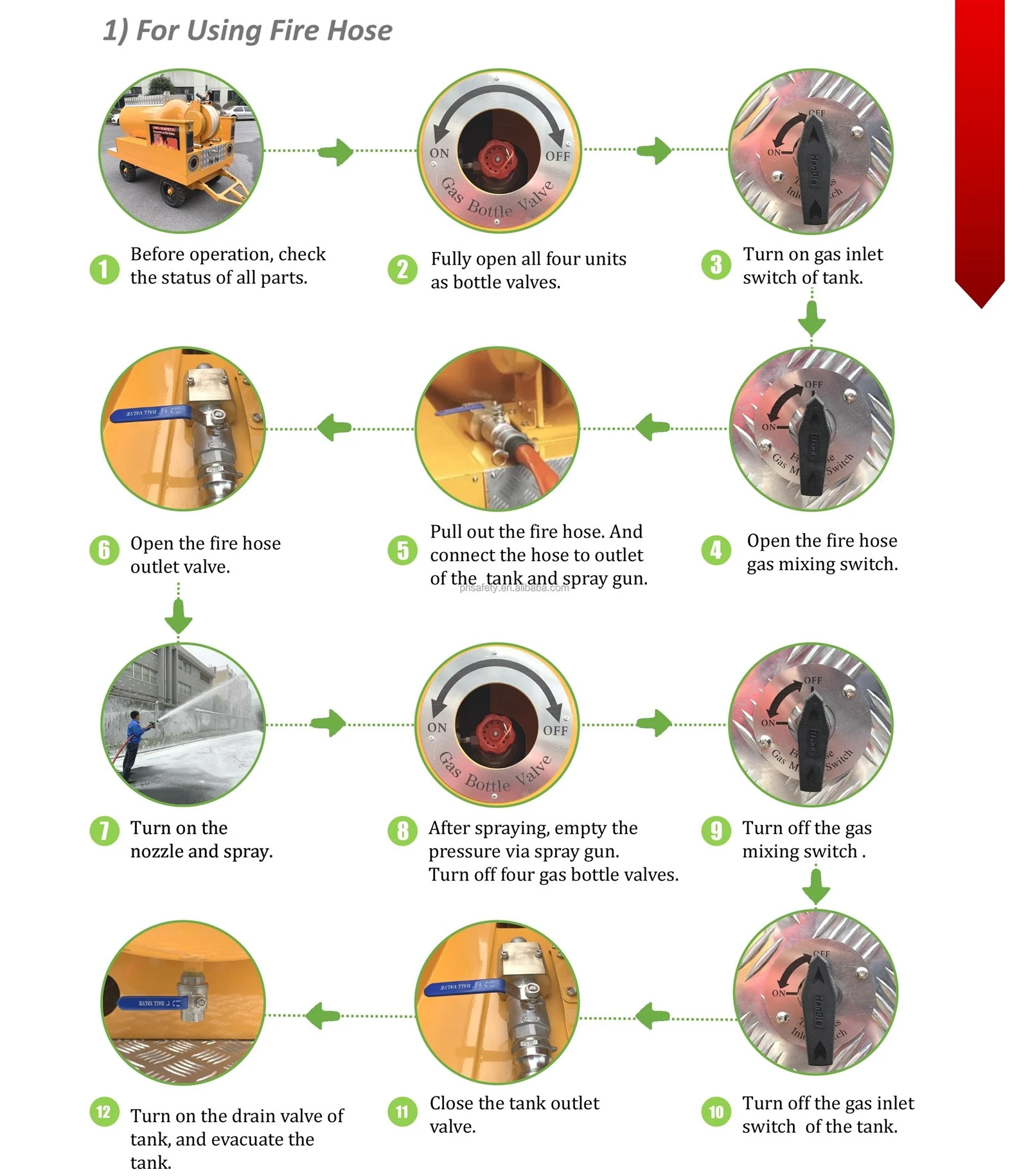

Working Diagram
Why are CAFS Effective?
CAFS truly attacks all sides of the fire tetrahedron by smothering the fire with a "foam blanket", thus preventing oxygen from combining with fuel. It diminishes the heat by insulating (using the trapped air within the bubble structure) and the bubbles actually reflect radiant heat, thus preventing excess heat from adding to the fire. This prevents additional fuel from reacting with the fire by providing a barrier. Finally, CAFS has been shown to disrupt the chemical reaction required for fire to continue. CAFS is 15 to 30 times more effective than water alone.
Product Specification
|
CAFS Compressed Air Foam Fire Suppression System |
|||
|
Brand Name |
PRI-SAFETY |
||
|
Capacity |
10Gallon, 15Gallon, 30Gallon, 60Gallon, 200Gallon, 500Gallon |
||
|
Agent |
AFFF3% Foam |
||
|
Discharge time (s) |
150s-20mins |
||
|
Discharge Distance |
＞15m |
||
|
Working Pressure |
8-10Bar |
||
|
Tank Material |
Stainless Steel |
||
| Items | 10Gallon | 30Gallon | 60Gallon |
| Size (LxWxH)(MM) | 760x550x680 | 1170x1220x1040 | 1270x1320x1140 |
| Weight (Loaded/Empty) (KG) | 121kg / 76kg | 180kg / 315kg | 220kg / 450kg |
| Premix Tank Volume (L) | 38L | 120L | 235L |
| Discharge Nozzle | 1" | 1" | 1" |
| Discharge Rate (L/min) | 16L/min | 32.5L/min | 35L/min |
| Discharge Distance (M) | 14M | 23M | 23M |
| Aluminum Air Cylinder | 2units x 7L | 2units x 13L | 2units x 13L |
| Automatic Fire Hose Reel | 1"x25M | 1"x25M | 1"x25M |
| Pressure Relief Valve | ≥ 12Bar | ≥ 12Bar | ≥ 12Bar |
| Recharge time (mins) | ≤5mins | ≤5mins | ≥ 12Bar |
| Discharge time (s) | 150s | 220s | ≥400s |
Product Application
Compressed Air Foam System
Compressed Air Foam has become the go-to agent for flammable liquids and hydrocarbons response. The versatility of these systems have been proven by field tested use in multiple applications. Suited for offshore oil and gas facilities, rapid response vehicles (RRV), fuel storage locations, mining, marine vessels, racetracks, pressure pumping & hydraulic fracturing equipment, hydrocarbon storage tanks, saltwater disposal (SWT), airports, forestry, and general emergency fire response. Applicable to, but not limited to:
AirPort
Gas/Oil Station
Fire Departments
Agriculture
Petrol Station
Factory Warehouse
Business and Home Owners
Mini Fire Vehicle and Fire Motorcycle
Community Fire Station
Products Use
Fluorine-Free Foam Options
ColdFire is a well-known American brand of environmentally friendly fire extinguishing agents, and we have obtained UL Listed.
1. Fluoride - free
Our fire extinguishing agent is fluoride - free. By eliminating fluoride, we not only contribute to a more sustainable environment but also ensure that there are no harmful residues left behind after extinguishing a fire. This makes it an ideal choice for areas where environmental protection and human safety are of utmost importance.
2. For All types of fires
Our fire extinguishing agents can be used on many types of fires. Class A/B/C/D/K/L Fires can be used, and lithium battery fire is different from ordinary fire, its combustion process has a unique chemical reaction and high energy release.
3.Wide Coverage and Penetration
The water-based solution can penetrate the battery pack and reach the internal cells, ensuring comprehensive fire suppression.
4. Non - Toxic and Environmentally Friendly
Our fire extinguishing agent is non - toxic, which means that in the event of a fire, not only does it extinguish the blaze efficiently, but it also does not release harmful substances into the air. Moreover, being environmentally friendly, it does not cause long - term damage to the ecosystem.
5. Prevents Re - ignition and Removes Heat
Our fire extinguishing agent can prevent re - ignition. The fires can be particularly stubborn, often reigniting due to the residual heat and unreacted chemicals within the battery. Our fire agent forms a heat - resistant layer that effectively dissipates heat, preventing the temperature from rising to a level that could cause re - ignition.
6. Reduces Hydrocarbon Smoke
Our fire extinguishing agent can reduce the generation of hydrocarbon smoke. It chemically reacts with the burning components to minimize the production of smoke - forming compounds. As a result, visibility is maintained during and after the fire - fighting process, facilitating rescue operations and minimizing the potential for smoke-related health issues.
Company Brief
PRI-SAFETY FIRE TECHNOLOGY CO., LTD.
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN certification, UN ECE R107 certificate for vehicle safety.
