FM200 Price Fire Fighting Suppression System FK-5112 Fluid
Cabinet type FM200 fire system devices are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.
2. PRODUCT ADVANTAGES
-
Very swift fire suppression. Reach extinguishing level ≤10s.
-
Safe to people. People is safe when exposed at the FM200 gas discharge level.
-
Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
-
Easy to clean. No residue left, and minimize damage to sensitive equipment.
-
Environment friendly. Zero ozone depletion potential and zero global warming potential.
-
Simple installation, with small storage space.
A. PAREMATERS
| Item | Model | Volume(L) x Qty(unit) | Dimension | Maximum loading density of fire extinguishing agent | Stored Pressure (20ºC) | Max Working Pressure(50ºC) | Activate voltage/ current | Operating Temperature Range |
| 1 | GQQ40/2.5 | 40X1 | 450×400×1450 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 2 | GQQ70/2.5 | 70X1 | 500×450×1450 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 3 | GQQ90/2.5 | 90X1 | 500×450×1600 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 4 | GQQ100/2.5 | 100X1 | 500×450×1700 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 5 | GQQ120/2.5 | 120X1 | 500×450×1850 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 6 | GQQ150/2.5 | 150X1 | 550×500×1850 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 7 | GQQ180/2.5 | 180X1 | 1000×450×1600 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |

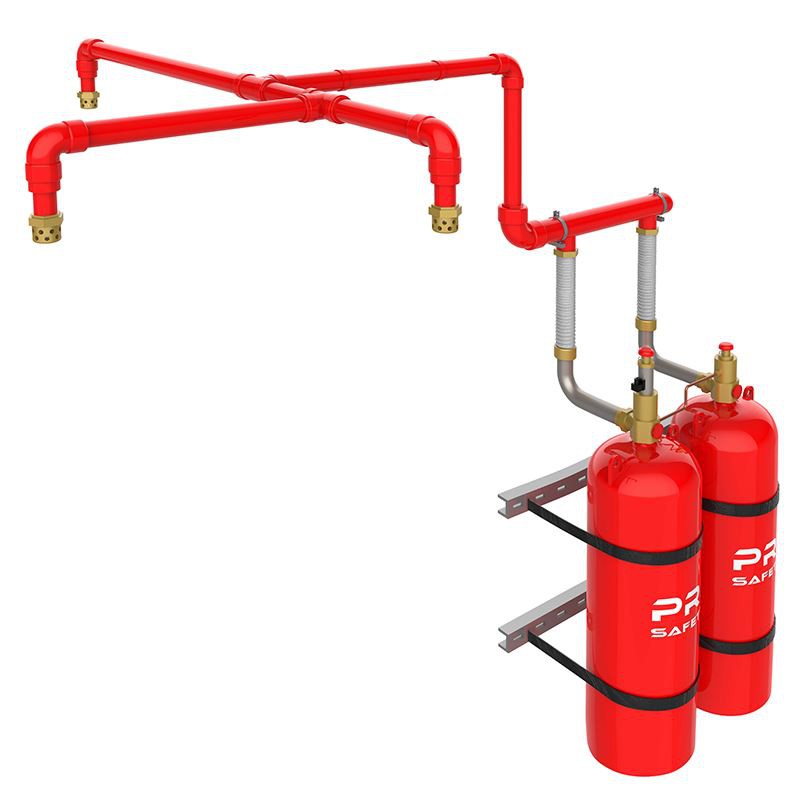

B. COMPONENTS
1. Storage cylinder : Cylinder, container valve and solenoid valve, dip tube, etc.
2. High pressure hose: Connect cylinder valve and liquid check valve
3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent
4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.
C. WORKING
DIAGRAM
4. INSTALLATION

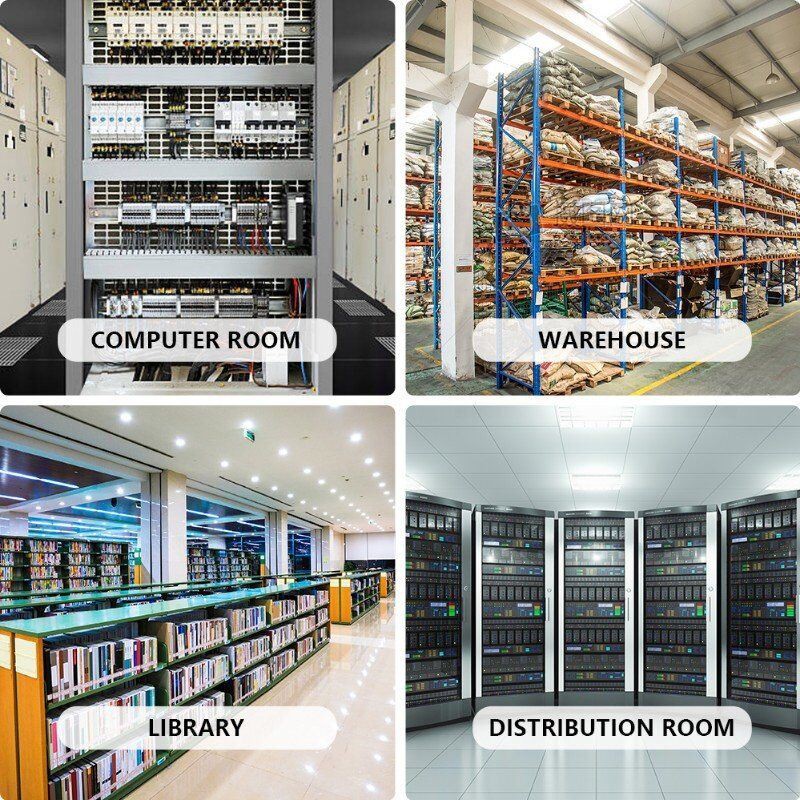

5. APPLICATION
-
Bank vaults
-
Libraries
-
Book stores
-
Electronic data processing
-
Telephone exchanges
-
Communication centers
-
Transformer and switchroom
-
Control rooms
-
Test laboratories
-
Flammable liquid storage

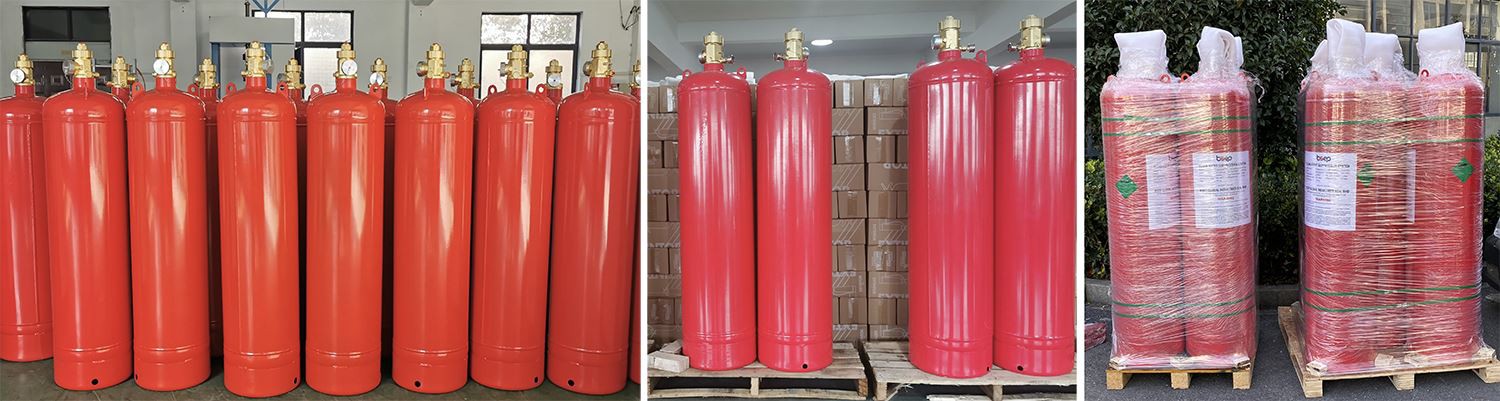

6. PACKAGE
This system will be packed by pallet.
7. WORKSHOP
We are known as one of the most professional manufacturers and suppliers of various safety products in China. If the fm200 price fire fighting suppression system fk-5112 fluid meets your requirement, welcome to the quality equipment made in China. Our factory will offer you one stop service and one year warranty.
