NFPA 750 High Pressure Water Mist Fire System Pump Pressurized Type


A water mist system is a fire protection system which uses very fine water sprays (i.e. water mist). The small water droplets allow the water mist to control, suppress or extinguish fires by: Cooling both the flame and surrounding gases by evaporation---Absorb Heat&Cooling Displacing oxygen by evaporation---Isolate Oxygen Attenuating radiant heat by the small droplets themselves---Isolate Heat



The effectiveness of a water mist system in fire suppression depends on its spray characteristics, which include the droplet size distribution, spray density and spray dynamics, with respect to the fire scenario, such as the shielding of the fuel, fire size and ventilation conditions.



So really high pressure system, specialized tubing or piping that's used for that. Now, there are differences between water mist systems and the droplet sizes that they produce, so typically the smaller the water droplet size the better it is at extinguishing a hot fire. Larger droplets can work faster on lower temperature fires, but they all work for the systems that they're approved for or listed for.

product-2722-2527

Product Advantages

The use of water mist fire suppression, when compared to the use of gaseous agents and traditional sprinkler systems, has revealed
advantages such as:

1. Immediate activation

2. High efficiency in the suppression of a wide variety of fires

3. Minimized water damage

4. Environmentally sound characteristics

5. No toxic problems

Product Specification

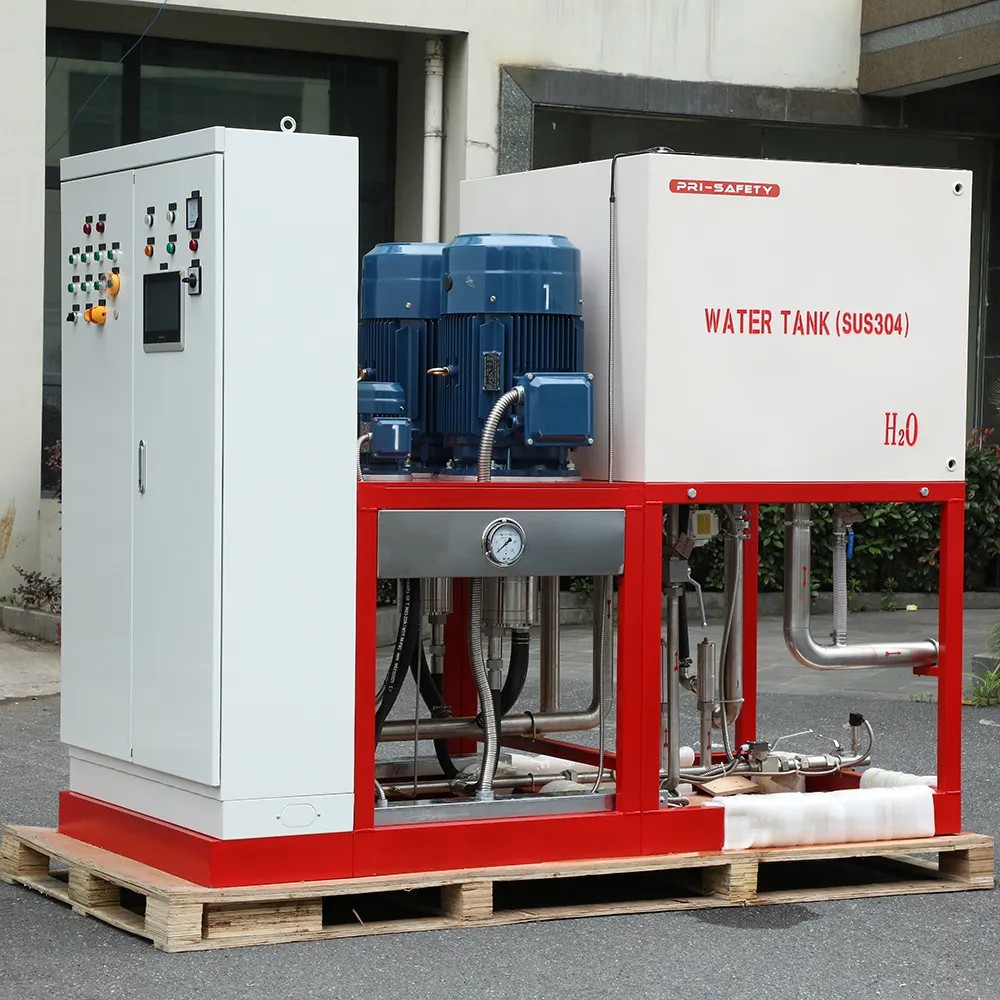

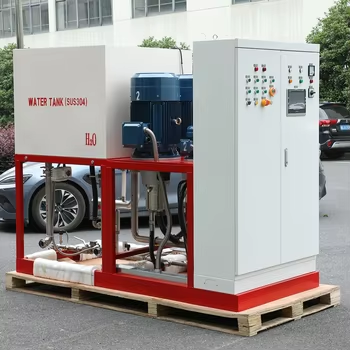

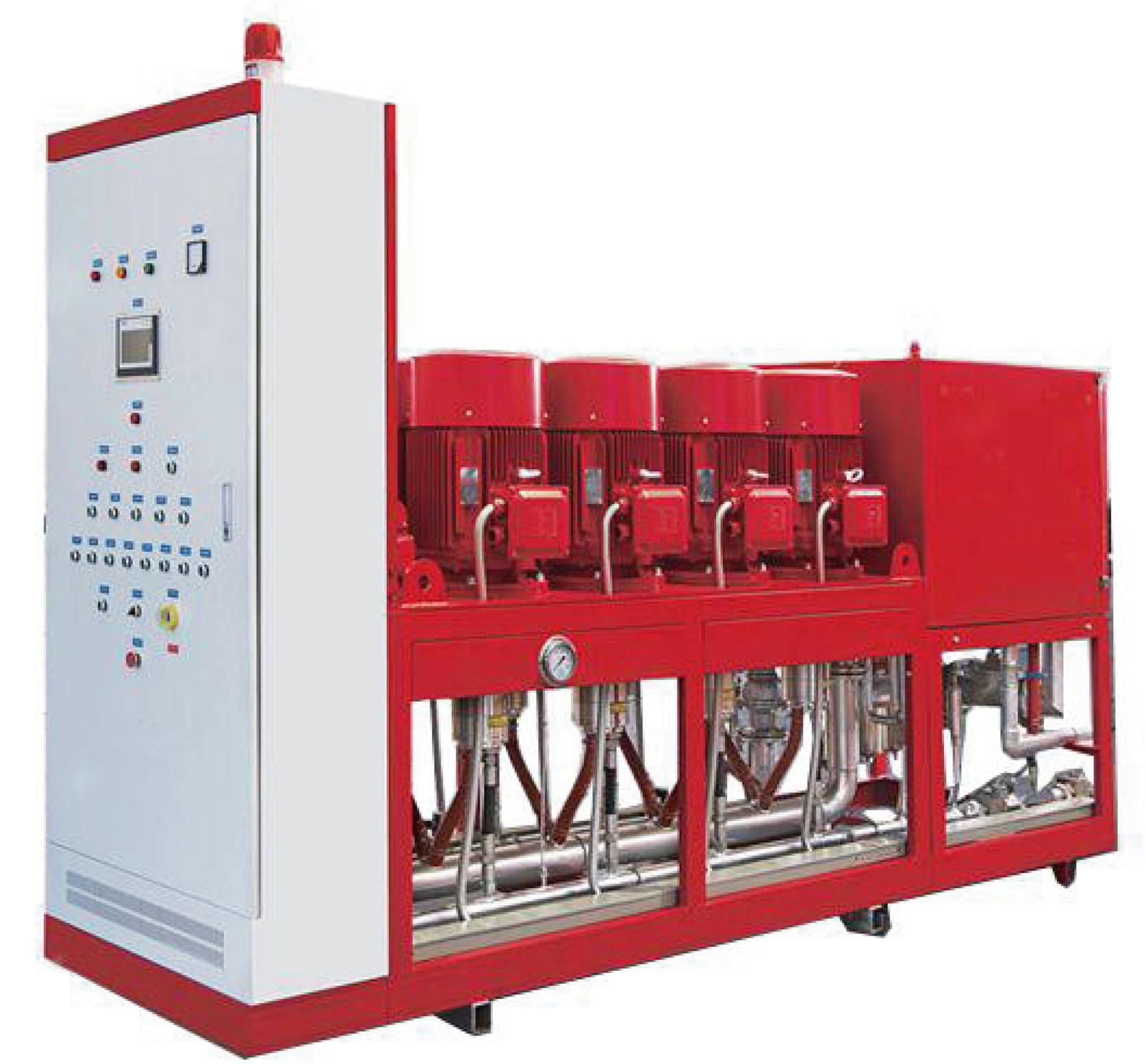

Pump Pressurized Type Water Mist Fire System

(Single Pump-112L/min, 14MPa, 30kw)

Code Number

Working Pressure

Flow(L/Min)

Pump Speed(r/Min)

Dimension(mm)

Note

WM/PRI-112/14

14MPa

112

147

2200x1200x2000

One Work One

Reserve

WM/PRI-224/14

14MPa

224

1470

2650x1200x2000

Two Work One

Reserve

WM/PRI-336/14

14MPa

336

1470

2650x1200x2000

Three Work One

Reserve

WM/PRI-448/14

14MPa

448

1470

3100x1200x2000

Four Work One

Reserve

WM/PRI-560/14

14MPa

560

1470

3100x1200x2000

Five Work One

Reserve

WM/PRI-672/14

14MPa

672

1470

3550x1200x2000

Six Work One

Reserve

WM/PRI-784/14

14MPa

784

1470

3550x1200x2000

Seven Work One

Reserve

Need Customized one-to-one according to the scene

The specific specifications need to be customized one-to-one according to the scene you use and the height and size of the site. If you have any needs, please contact us and we will customize a solution for you. The above is the specification details of one of the pumps.

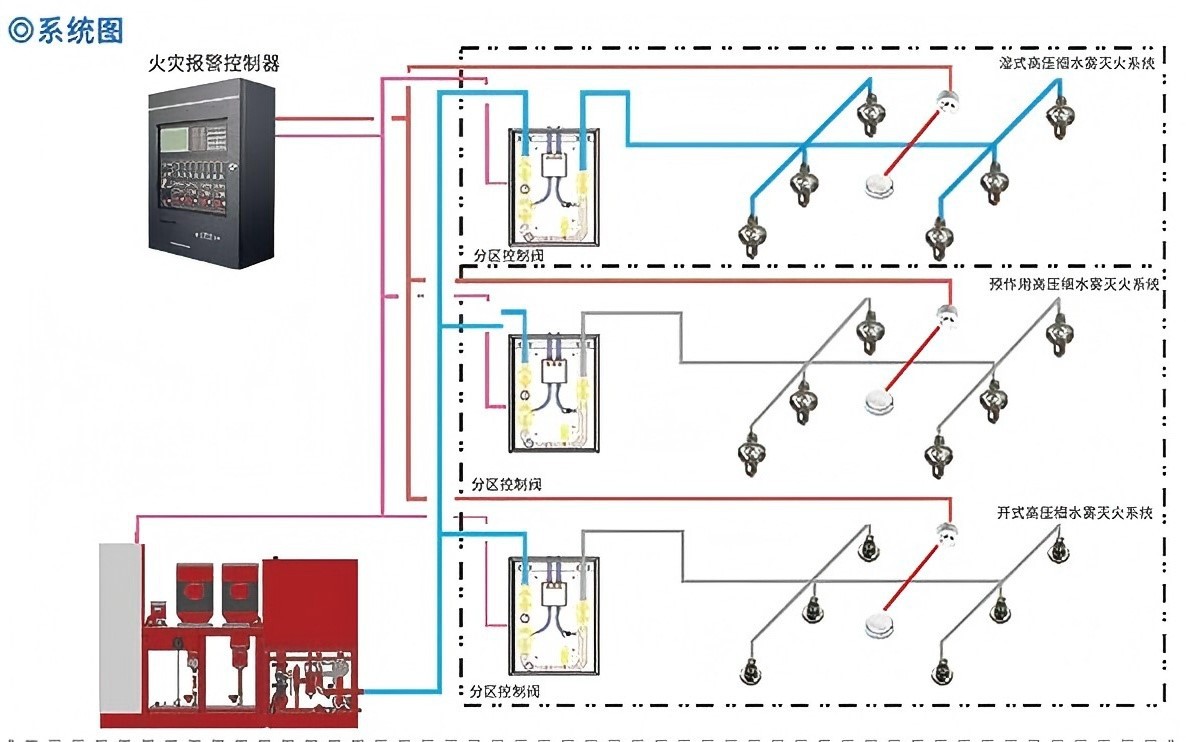

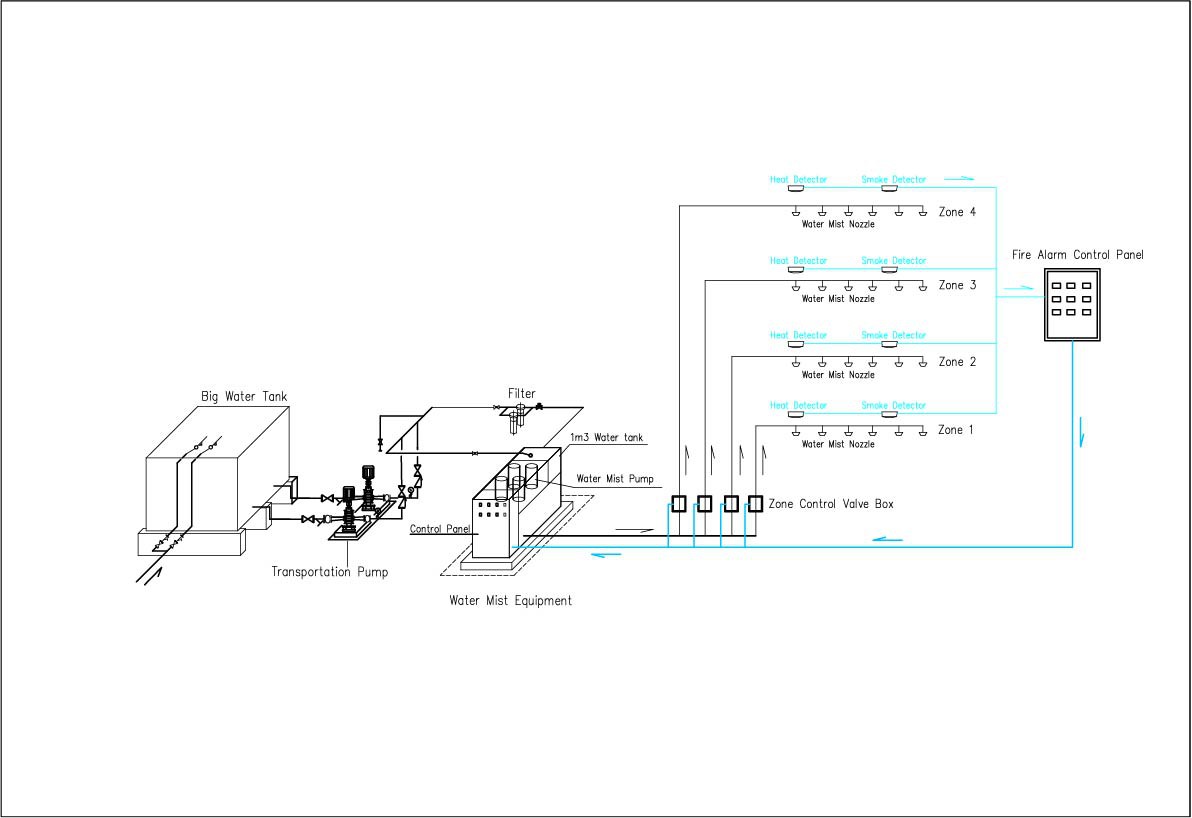

Working Diagram



product-1192-818

product-1186-742



Product Application

The fine water mist fire extinguishing system is widely used in various scenarios, including but not limited to:

Computer Rooms, Data Centers, Archives, Libraries, Generator, Transformer, Electric Room, Engery Storage, Container(Battery Room), Medical Device Room, Others Important Equipment Storage Places.

These places often store high-value equipment and materials, and once a fire occurs, the consequences can be unimaginable. Therefore, using a fine water mist fire extinguishing system can quickly extinguish the fire source in the early stages of a fire and protect important assets.High efficiency in the suppression of a wide variety of fires



product-2262-1140

downLoadImg

Packing & Delivery​​​​​​

product-4284-5712

product-1000-1000

product-350-350

product-350-350








Company Profile

Hangzhou PRI-SAFETY Fire Technology Co.,Ltd.

PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.



And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc



We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.

Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN

certification, UN ECE R107 certificate for vehicle safety.

Our address

A-413, MeiDu Plaza, GongShu District, Hangzhou, China.
