Diffrent Kitchen Fire Extinguisher
European Model Kitchen Fire System

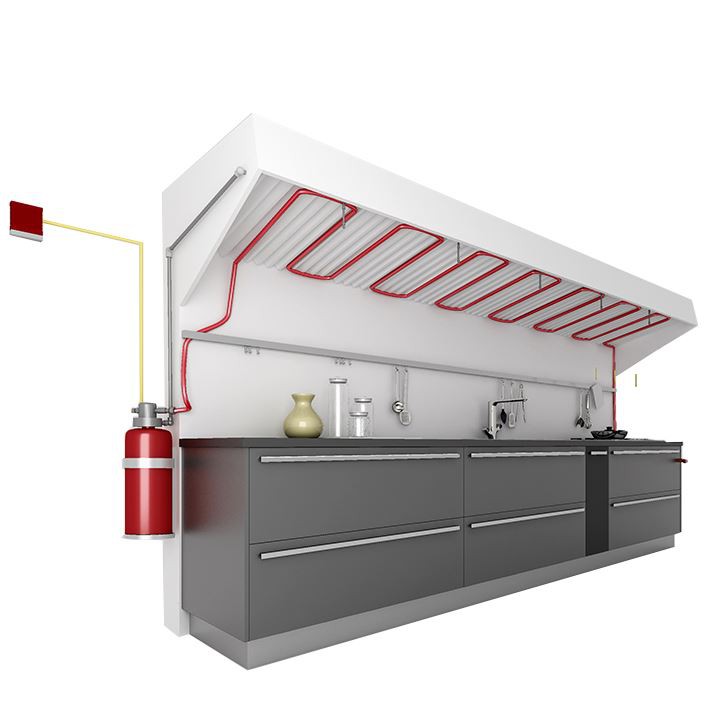

• 2L---For 1m Home Kitchen hood
• 6L---For 2-3m Kitchen Hood
• 9L---For 3-4m Kitchen Hood
• 12L---For 4-5m Kitchen Hood
• 20L--- For 6-8m Kitchen Hood
• 25L--- For 8~10m Kitchen Hood
• Bigger capacity could be customized
American Model Kitchen Fire System
|
PRIW10-1-K |
|||
|
Agent Capacity (L) |
1x10L |
Activation Temperature |
180℃ |
|
Spray Nozzle(pc) |
7~10 |
Discharging time (S) |
≥30 |
|
Temp. Detector (pc) |
3~5 |
Working Temp.(℃) |
0-55 |
|
Fuel cut-off valve |
Depending |
Drive gas charging(g) |
145±5 |
|
Protective Range |
3~5 meters |
Drive gas Pressure(MPA) |
12 |
|
PRIW18-2-K |
|||
|
Agent Capacity (L) |
2x10L |
Activation Temperature |
180℃ |
|
Spray Nozzle(pc) |
14~18 |
Discharging time (S) |
≥30 |
|
Temp. Detector (pc) |
7~10 |
Working Temp.(℃) |
0-55 |
|
Fuel cut-off valve |
Depending |
Drive gas charging(g) |
145±5 |
|
Protective Range |
7~10meters |
Drive gas Pressure(MPA) |
12 |

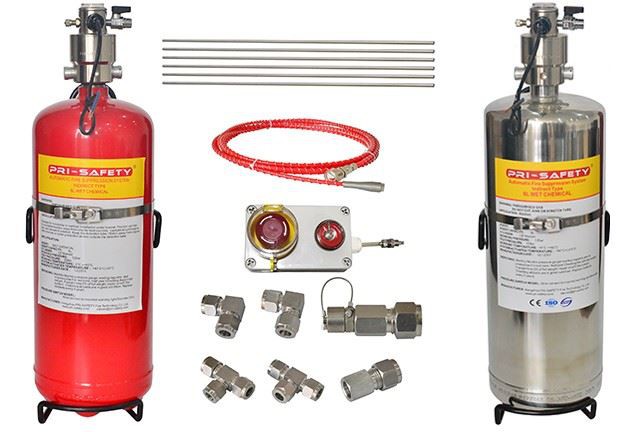

PRIW10-1-K
1x10L --- For 3~5m Home Kitchen hood

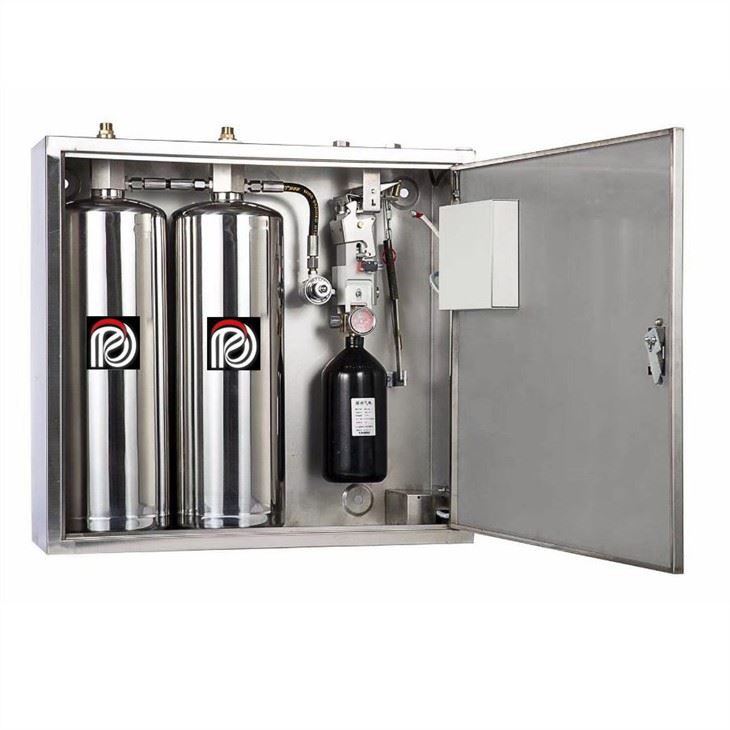

PRIW18-2-K
2 x 10L --- For 7~10m Kitchen Hood
Portable Kitchen Fire Extinguishers
