Product Advantages

1. Fast detection and high efficiency
2. Rechargeable
3. Adapted to harsh environments
4. Lightweight, not burdensome to equipment
5. Simple installation and maintenance
6. Suitable for heavy duty mining machine
7. Flexible Rubber hose or Stainless Steel Pipe Both Optional
8. Available in many agents: Foam, Dry Powder, FK-5-1-12, FM200, Water Mist etc
Product Specification





|

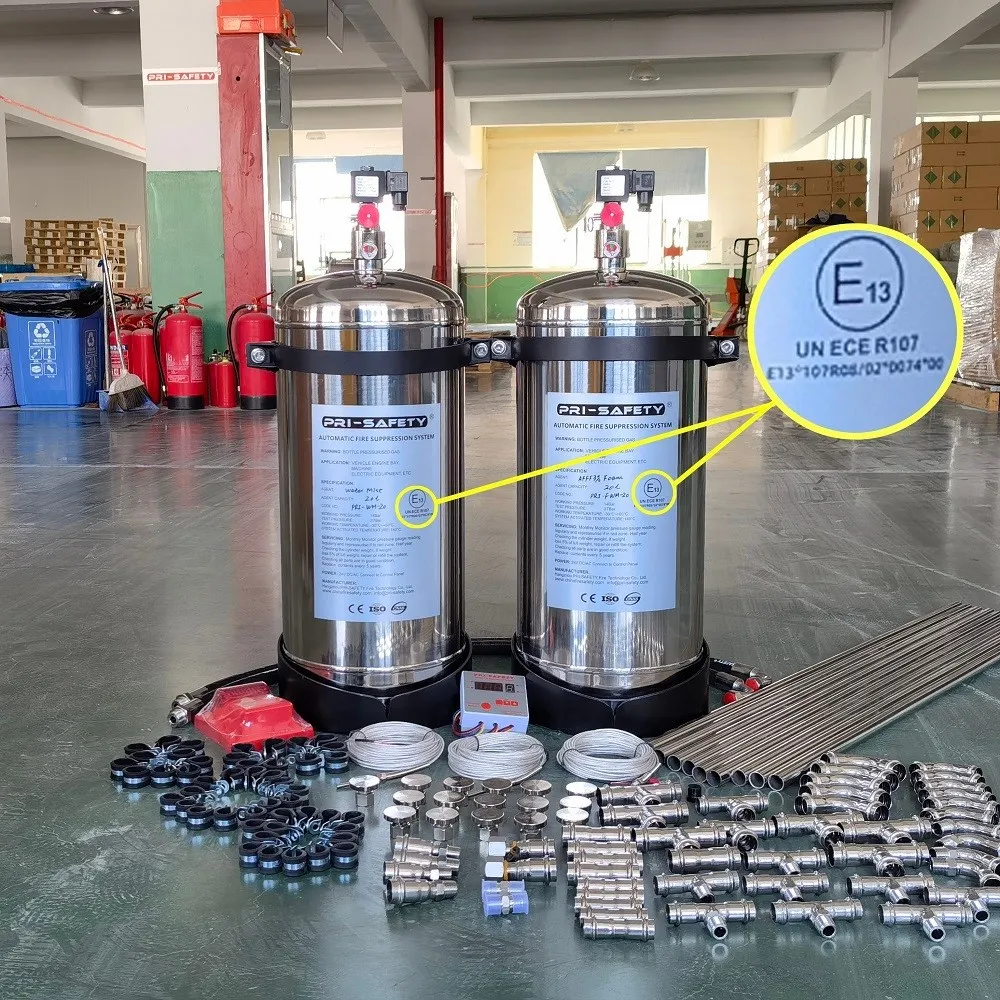

PRI-SAFETY Automatic Vehicle Fire Suppression Systems |
|||
|
Brand Name |
PRI-SAFETY |
||
|
Capacity |
6L, 9L, 12L, 18L, 20L, 25L, 50L |
||
|
Agent |
Foam / Dry Powder / FK-5112 / FM200 / Water Mist |
||
|
Working Pressure |
14Bar |
||
|
Testing Pressure |
27Bar |
||
|
Cylinder Material |
Steel red painting Or Stainless Steel 304 |
||
|
Certificate |
UN ECE R107, CE |
||
|
System Activated Temperature |
140℃ |
||
Working Diagram

Temperature Sensor Model/Solenoid Valve
The temperature sensor send temperature signal to control panel, the control panel can indicate the temperature at anytime, once temperature reach 100 ℃, the fire alarm was activated. Once the temperature reach 140℃, control panel will send signal to electric valve to open it. Then the agent was discharged from dischange tube and nozzles. On the control panel, there is a manual button and test button, reset button, in Emergency pushing the manual button can activate the fire system too.

Product Application



Packing & Delivery



Company Profile
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN
