Product Advantages

1. Fast detection and high efficiency
2. Rechargeable
3. Adapted to harsh environments
4. Lightweight, not burdensome to equipment
5. Simple installation and maintenance
6. Suitable for heavy duty mining machine
7. Flexible Rubber hose or Stainless Steel Pipe Both Optional
8. Available in many agents: Foam, Dry Powder, FK-5-1-12, FM200, Water Mist etc
Product Specification




|

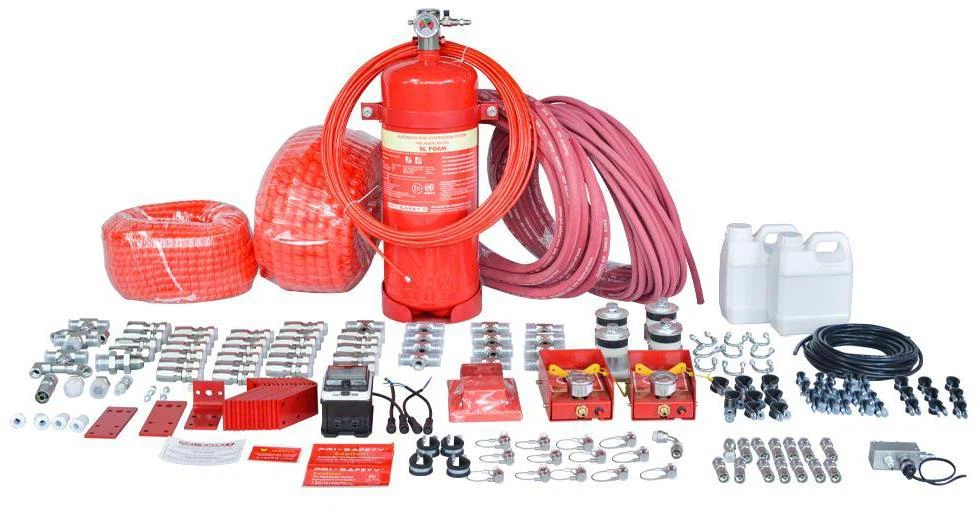

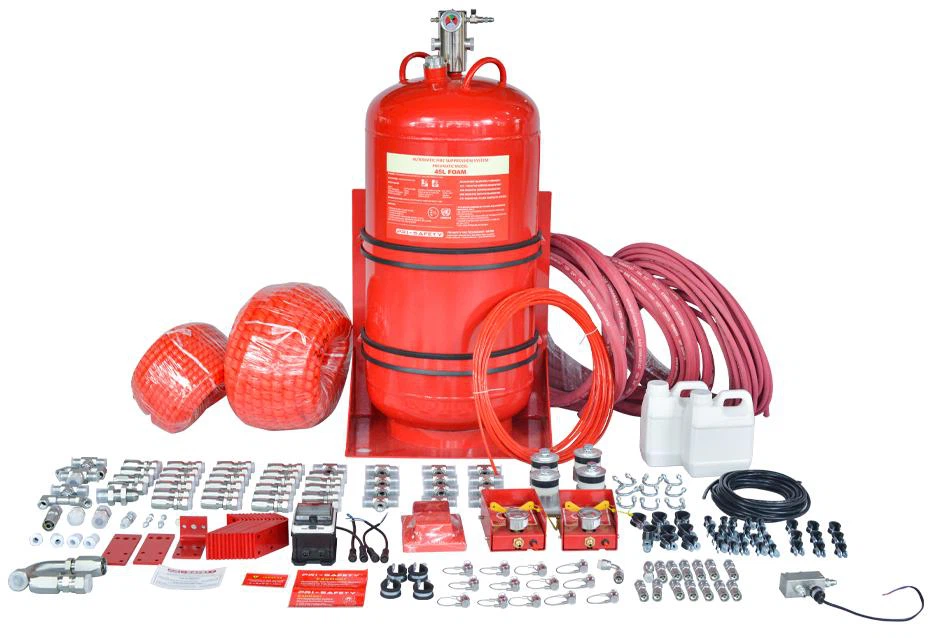

PRI-SAFETY Automatic Vehicle Fire Suppression Systems |
|||
|
Brand Name |
PRI-SAFETY |
||
|
Capacity |
13L, 20L, 25L, 35L, 45L, 65L, 100L 6L, 9L, 12L, 18L, 20L, 25L, 50L |
||
|
Agent |
Foam / Dry Powder / FK-5112 / FM200 / Water Mist |
||
|
Working Pressure |
14Bar |
||
|
Testing Pressure |
27Bar |
||
|
Cylinder Material |
Steel red painting Or Stainless Steel 304 |
||
|
Certificate |
UN ECE R107, CE |
||
|
System Activated Temperature |
140℃ |
||
Working Diagram

Detection Tube Model/Pneumatic Valve
Inside the Pneumatic valve there is a piston, it divide the valve cavity to 2 parts. The upper cavity connect to detection tube, the lower cavity connect to bottle. The pressure of the 2 side of the piston is same. During the fire, Once the detection tube detected fire and ruptured one hole to release the pressure. Then the pressure of 2 side of the piston happen different, the piston was moved to up, and the outlet port of the valve was opened, and agent was discharged from
the pipe and nozzles. At the same time, the pressure switch send final to fire alarm, the fire alarm was activated. On the control panel, there is a manual button and test button, reset button. In emergency Pushing the manual button can activate the fire system too.

Product Application



Packing & Delivery



Company Profile
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN
