E13 Automatic Fire Suppression System for Vehicle UN ECE R107 Certificated
Products Description
Automatic Vehicle Fire Suppression System is a fire protection system designed to automatically detect and extinguish fires in vehicles, often focusing on engine bays where fires are common. These systems work without human intervention, protecting both operators and equipment.
Model: Detection Tube Model/Pneumatic Valve

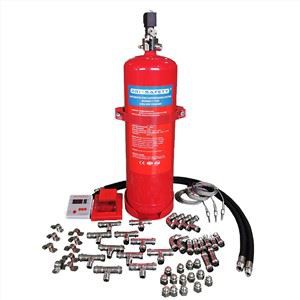

Dry Powder Automatic Fire Suppression System
The Main Products are On/Off Road Vehicles & Machines Automatic Fire Suppression system, HFC-227ea & FK-5112 Clean gas Fire Suppression systems, CAFS(Mobile Compressed Air Foam System), Water Mist Fire System, Foam Mist Fire System, Co2 Fire System, etc.
The Products and Fire Systems are used in Mining Industry, Forest Industry, Agriculture, Petrochemical, Transportation,
PRI-SAFETY has professional Technology Team, Have Ability Supply Design, Solution, and Customization, For Special Project Requirement, and Technology Training&Instruction After Sales.
Foam Mist Automatic Fire Suppression System
UN ECE R107 Certificated Automatic Fire Suppression System, Fire Extinguisher
Mining Vehicle Automatic Fire System, Fire Extinguisher ----- UN ECE R107 Certificated
The UN ECE R107 certified automatic vehicle automatic fire extinguishing system is designed to provide reliable fire protection for vehicles. It is mainly used in engine compartments of various vehicles such as buses, trucks, mining machines, and excavators.
Our Automatic Vehicle Fire Suppression System is a cutting-edge fire protection solution designed for buses, coaches, and various mining vehicles, ensuring compliance with the stringent UN ECE R107 safety regulations. This system provides rapid, reliable, and automated fire detection and suppression, significantly enhancing passenger and operator safety in high-risk environments.
Features:
Fast detection and high efficiency;
Rechargeable Adapted to harsh environments;
Lightweight, not burdensome to equipment Simple;
installation and maintenance Suitable for heavy duty mining machine;
installation and maintenance Suitable for heavy duty mining machine;
Available in many agents: Dry Powder, Foam, FK-5112, Water mist, FM-200,etc.
✔ UN ECE R107 Certified – Meets international safety standards for buses and heavy-duty vehicles.
✔ Rapid Fire Detection – Advanced thermal sensors detect fire outbreaks in milliseconds.
✔ Automated Suppression – Instantly releases fire-extinguishing agents to suppress fires.
✔ Multi-Agent Options – Compatible with clean agents, foam, or dry chemicals for optimal fire control.
✔ Durable & Reliable – Engineered to withstand harsh conditions in mining, industrial, and public transport vehicles.
Working Principle
Working Principle
How they work:
Detection: Automatic Vehicle Fire System utilize detection methods like detection tube, detection cable, strategically placed around the vehicle.
Actuation: When a fire is detected, the system activates, releasing a fire-fighting agent (e.g., dry chemical powder, wet chemical, or foam).
Delivery: The extinguishing agent is delivered to the fire via a network of pipes, hoses, or nozzles.
Step 1: Detection Tube ruptures to hole when temperature reach 140℃, and release pressure through the hole.(Or pushing the manual button of detection tube,pressure releasing from the manual button.
Step 2: The resulting drop in pressure causes the head valve to be activated.
Step 3: At the same time the fire alarm was activated. Valve was opened and agent was discharged through the discharge tubing to the nozzles. Agent covering the area and suppressing the fire quickly and thoroughly. This system is totally automatic and is totally independent of electricity.
Specification
Specification:
| Brand Name | PRI-SAFETY |
| Product Name | Automatic Fire Suppression System |
| Fire Agent Type | Dry Powder, Foam or Water Mist |
| Certification | CE ECER107 Certification |
| Capacity |
9L 18L 25L 50L 100L 9KG 18KG 25KG 50KG 100KG |
| Model | Automatic / Electrical |
| Working Pressure | 14Bar |
| Test Pressure | 27Bar |
| Cylinder Material | Stainless Steel or Steel |
| Color | Red or according to your request |
| Application | Vehicles, Mining Vehicles, Mining Machine |
Certification
Application
Packing&Delivery
Company Brief
PRI-SAFETY FIRE TECHNOLOGY is established in 2005, is focused on Automatic Fire Suppression Systems and Fire Equipment R&D, Design and Manufacture.
The Main Products are On/Off Road Vehicles & Machines Automatic Fire Suppression system, HFC-227ea & FK-5112 Clean gas Fire Suppression systems, CAFS(Mobile Compressed Air Foam System), Water Mist Fire System, Foam Mist Fire System, Co2 Fire System, etc.
The Products and Fire Systems are used in Mining Industry, Forest Industry, Agriculture, Petrochemical, Transportation,
Electricity Power, Industry, Construction and other fields.
PRI-SAFETY has professional Technology Team, Have Ability Supply Design, Solution, and Customization, For Special Project Requirement, and Technology Training&Instruction After Sales.
PRI-SAFETY Has the Certificates, ISO9001:2015, TUV CE0036, ECE R107, CCC, and So On. The Products Meet the International Standard of EN, NFPA, CNAS, ECE, etc.
