Products Description
Electrical Devices Fire Extinguishing System Automatic Fire Suppression System is a fire suppression system can be used to electrical cabinet & electronic devices. Electrical panels and enclosures are found in every industry in the world. PRI-SAFETY have a high quality, high effective and easy and safety to install automatic fire suppression system to eliminate fires at the sources.
When fire temperature reaches a certain degree, then the fire suppression system will start to extinguish fires within seconds. In the meanwhile, the fire alarm also start to sound and flash. It is very quick and high efficiency for extinguishing fires.
Testing Video of FM200 Direct Fire trace System for Electric Panel
Products Advantages
1. Simple, high quality and well engineered system. Easy to install
2. Fast, automatic actuation
3. We use gas instead of water to put out the fire without causing damage
4. When a fire occurs, the system will first detect it and then feedback control the fire extinguishing system to turn on and extinguish the fire within 10 seconds.
5. Remaining operational during power interruptio
6. There is no need for manual close fire fighting.
Products Specification
|
Product Name
|
FM200/FK-5-1-12 Electrical Devices Fire Extinguishing System Automatic Fire Suppression System |
|
Capacity
|
2L, 4L, 6L, 9L,12L
|
|
Type
|
Direct Type, Indirect Type
|
|
Fire Agent
|
FM200, FK-5-1-12(NOVEC1230), FE-36
|
|
Application
|
Small Electrical Control Cabinet, Large Electrical Control Cabinet, Electrical Switch Panels, Electronic Devices, Sever Room, can protect any electrical cabinet;
|
Working Diagram
Direct Type Fire Trace Fire System for Electrical Device
A direct-type electrical panel fire suppression system works by using a heat-sensitive detection tube that, when exposed to high temperatures, bursts and releases a fire-extinguishing agent directly onto the fire source. This system provides a rapid and localized response to fires within electrical panels, minimizing damage to surrounding equipment.
Direct type: When there is a fire, and reach 140 degrees celsius, the tube will repture a hole, and the fire agent will discharge from this hole to extinguish fires within several seconds.
Indirect Type Fire Trace Fire System for Electrical Device
An indirect type electrical panel fire suppression system utilizes a heat-sensitive tube for fire detection, which, when it bursts due to a fire, triggers the release of a fire extinguishing agent from a separate system of pipes and nozzles. This contrasts with direct systems where the agent discharges directly from the ruptured tube.
Indirect type: When there is a fire, and reach 140 degrees celsius, the tube will repture a hole, then the pressure will release from the hole, and it will leads to activate the valve of the fire system to open, then the fire agent will discharge from discharge pipe to extinguish fires within several seconds.

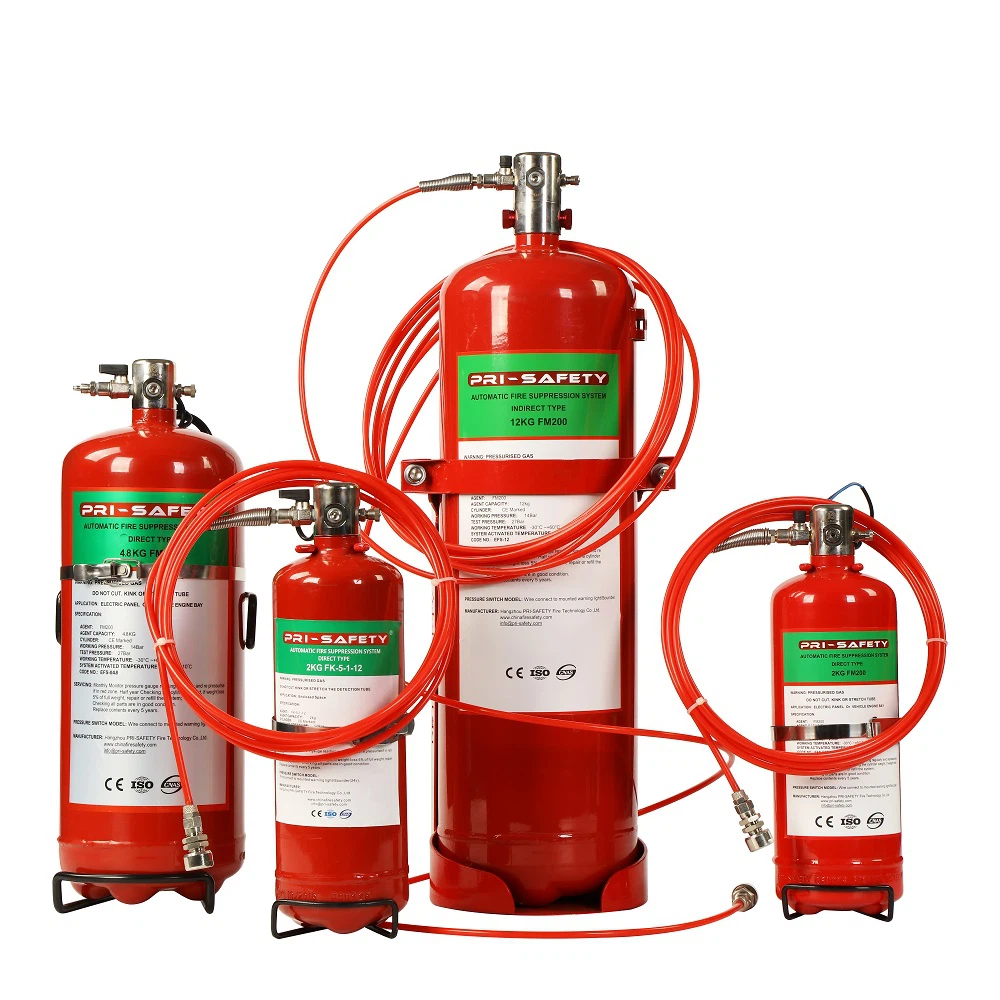

Details Images

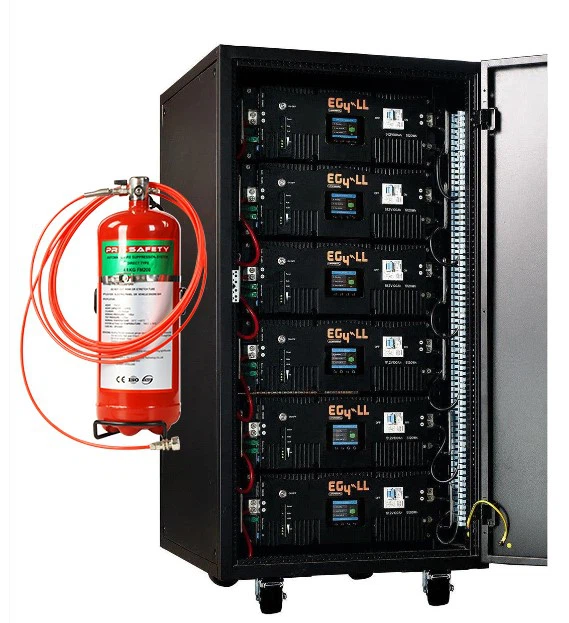

1KG/2KGDirect Type Fire Suppression System can protect 0.7CBM electrical cabinet or electrical panel, or server room. Easy to install and safety to use.

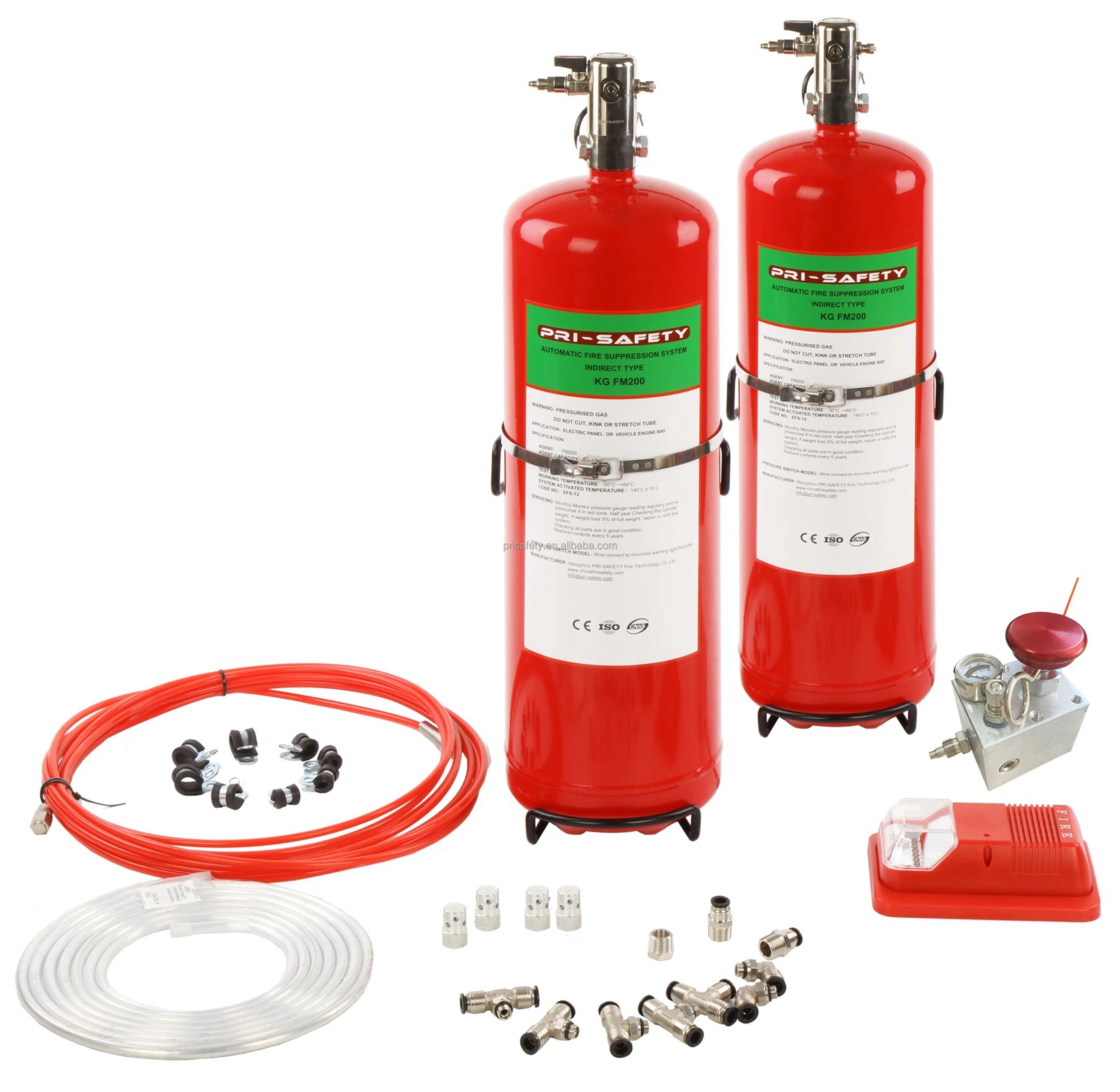

6KG, 9KG Indirect Type FM200 Fire Suppression System, it can protect more protect area, big electrical cabinet, big electrical server room.
Products Application
Application Small Electrical Control Cabinet, Large Electrical Control Cabinet, Electrical Switch Panels, Electronic Devices, Server Room, can protect any electrical cabinet.
Packing&Shipping
FM200/FK-5-1-12 Electrical Devices Fire Extinguishing System Automatic Fire Suppression System will be packed export carton, and also can be packed by wooden pallet after packing by export carton if necessary.
Company Profile
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN
certification, UN ECE R107 certificate for vehicle safety.
