Products Description
UN ECE R107 Certificated Electrical Model Mining Vehicle Fire System are most commonly used in different mining vehicles, different industrial equipment, such as truck, tractor, bus, military vehicle, on-road equipment and off-road equipment. Because they are non-conductive, they can be utilized to not only quell fires in ordinary combustible materials, but also on flammable liquid fires that involve live electrical equipment.
Working Principle:
There is 3 temperature sensor installed in the engine room, temperature sensor feedback the the temperature to the control panel. The control panel can indicate the temperature at anytime. The control panel was installed in the driver room, driver can see the temperature at anytime.
Once the Temperature of engine room increase to 100℃, the control panel will activate the fire alarm. Driver will stop and check the situation. If necessary, driver will push the manual button on the control panel to activate the system.
Once the temperature still increasing, and reach to 140℃, the temperature sensor feedback the signal to control panel, the control panel will activate the solenoid Valve, the solenoid Valve open and discharge agent to extinguish fire.
It can be used to different Mining Vehicle, such as loading machine,wheel loader, excavator, bulldozer, and other Construction Vehicles.

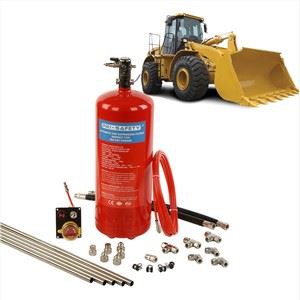

UN ECE R107 Certificated Electrical Model Mining Vehicle Fire System
Three Types VFSS
Testing Video of Detection Tube/pneumatic valve Type VFSS
Products Features
UN ECE R107 & CE Certification;
Fast detection and high efficiency;
Rechargeable;
Adapted to harsh environments;
Lightweight, not burdensome to equipment;
Simple installation and maintenance;
Control panel shows real-time temperature;
Available in many different agents: dry powder, foam water mist, etc
Suitable for Heavy equipment, Mining Vehicles, Ship, Boat, Truck, wheel loader, Excavator, Bus, Rooter, etc
Products Specification
| PRI-SAFETY UN ECE R107 Certificated Electrical Model Mining Vehicle Fire System | |
| Brand Name | PRI-SAFETY |
| Filling Capacity |
6L, 9L, 12L, 18L, 20L, 25L, 50L,100L-FOAM (18L for 4CBM Engine Room) 6kg, 9kg, 12kg, 18kg, 25kg, 50kg,100kg-Dry Powder (9kg for 4CBM Engine Room) |
| Fire Agent | Dry Powder; Foam Water Mist |
| Working Pressure | 14Bar |
| Testing Pressure | 27Bar |
| Cylinder Material | St12 red painting cylinder or stainless steel cylinder |
| Certification | CE Certification, UN ECE R107 Certification |
| System Activated Temperature | 140 degree celsius or Customized temperature |
Products Drawing
Products Application
Packing & Delivery
Products Certification
Installation Example
Company Profile
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN
certification, UN ECE R107 certificate for vehicle safety.
