Foam Bladder

We are known as one of the most professional manufacturers and suppliers of various safety products in China. If the foam bladder meets your requirement, welcome to the quality equipment made in China. Our factory will offer you one stop service and one year warranty.

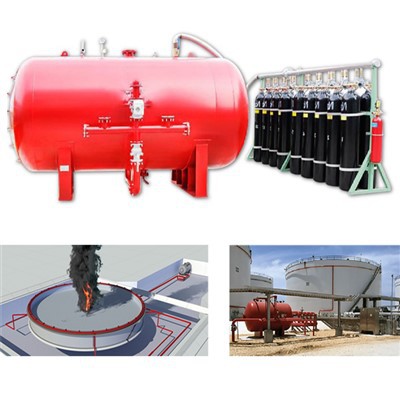

Foam Bladder Tank





The PRl-SAFETY bladder tank is acarbon stell pressure vessel containing an elastomeric sepatation bladder between thewater and foam concentrate .The bladder permits water pressure tobe transfeed to the foam concentate without the two fluids mixing together.

A PRl-SAFETY ration controller, as described in a sepatate date sheet, generates awater pressure drop by means of a reduced cross section where t water stream passes througt it . As the foam concentate pressure is higher than the pressure at the tation controller , the foam starts flowing towarsa the water and mixing at a calibtated tatewhich is dependant on the water flow rate.

• Vertical type on legs or horizontal type on saddles . Legs and saddles are provided with fixing holes .
• Design pressure 175 psi(12 bar ).
• 100% pressure tested according to the applied design code but not less than 251 psi. Water and foam piping ( stainless stell as option )
• Machine welded circuferantial and longitudinal seams for maximum quality and durability
• Welded lifting lugs for easy handling operations
• Welded lifting lugs for easy handling operations
• Thermal relief valve provided on the water side
• Tank equipment with inside protection at any opening to ensure no damage to the
• bladder. Nameplate in corrosion resistant material .
• Nameplate holder to avoid undetected corrosion on the tank's sheel behind the plate



Options:

• Mixing ration selector 3% and 6%
• Flange size :According to customer require from 2 1/2" inch -8 inch
• Flow rate :According to customer requirement



STANDARD DESIGN DATE.
Design pressure : 175 psi(12 bar)
Test pressure: 251 psi(17.3 bar)
Capacity: see tables







Two different design of foam bladder, contents List:

Design A:



Capacity	L	W	H	H	D
500L	920	1145	1820	860	810
1000L	1190	1345	2100	890	1010
1500L	1290	1440	2410	900	1105
2000L	1400	1545	2610	900	1212
2500L	1525	1647	2720	915	1312
3000L	1620	1805	2855	930	1416
4000L	1830	2010	2875	970	1616
