HFC-227ea FM200 Gas Total Flood Extinguishing System

FM-200 HFC-227ea is an odorless, colorless, liquefied compressed gas. It is stored as a liquid and dispensed into the hazard as a colorless, electrically non-conductive vapor that is clear and does not obscure vision. It leaves no residue and has acceptable toxicity for use in occupied spaces at design concentration. FM-200 HFC-227ea extinguishes a fire by a combination of chemical and physical mechanisms.
FM-200 HFC-227ea provides excellent fire protection in a wide range of applications from sensitive electrical equipment to industrial applications using flammable liquids. FM-200 HFC-227ea agent is used in total flooding fire suppression systems.
FM-200 HFC-227ea does not work by displacing oxygen and is safe for use in occupied spaces without fear of oxygen deprivation.

HFC-227ea FM200 Gas Total Flood Extinguishing System FM200/HFC-227EA Clean Gas Fire Suppression System for Sensitive Environments

More Choose

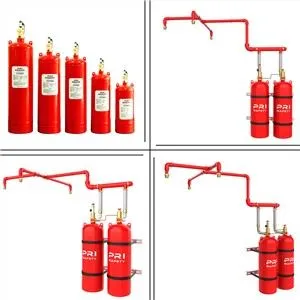

Components of FM-200 HFC-227ea Total Flooding Fire Suppression Systems

1. Storage cylinder: Cylinder, container valve (with pilot valve, pressure indicator), dip tube, etc.

2. High pressure hose: Connect cylinder valve and liquid check valve .

3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent.

4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.

FM200/HFC-227EA Clean Gas Fire Suppression System Advantage:

* Very swift fire suppression. Reach extinguishing level ≤10s.
* Safe to people. People is safe when exposed at the FM-200 HFC-227ea gas discharge level.
* Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
* Easy to clean. No residue left, and minimize damage to sensitive equipment.
* Environment friendly. Zero ozone depletion potential and zero global warming potential.
* Simple installation, with small storage space.

4. FM200/HFC-227EA Clean Gas Fire Suppression System Parameters

M200/HFC-227EA Clean Gas Fire Suppression System Working Principle:

FM-200 HFC-227ea fire system devices are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.

We also have Cabinet Type FK-5-1-12 / HFC-227ea total Flooding Fire System, FK-5-1-12/ HFC-227ea fire extinguishing system Cabinet Type FK-5-1-12/ HFC-227ea Fire Extinguisher

The FM200 Fire system is widely used in various scenarios, including but not limited to

• Bank vaults
• Libraries
• Book stores
• Electronic data processing
• Telephone exchanges
• Communication centers • Transformer and switch room
• Control rooms
• Test laboratories
• Flammable liquid storage

FK-5-1-12 / HFC-227ea total Flooding Fire System workshop
