Pipe Work Type FM200 Total Flood System
Pipe Work Total Flood System Technology Specification Details
Item Number | Specification | Technical Parameters | |
ONE | Filling pressure | 4.2Mpa | 5.6Mpa |
TWO | Scale of Protective region for one zone | area：max single-zone is 800m² volume：max single-zone is 3600m³ | |
THREE | Spraying time | ≤10s | |
FOUR | Filling density | ≤950kg/m3 | ≤1080kg/m3 |
FIVE | power | DC24V/1.6A | |
SIX | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | |
SEVEN | Condition of reserving room for container | temperature: -10~50℃,relative humidity: ≤97% | |
EIGHT | Maximum working pressure | 5.3Mpa | 8.0Mpa |
NINE | Minmum working pressure | 4.2Mpa | 4.6Mpa |
Pipe Work Total Flood System Introduction
FM200 (CF3CHFCF3 or 1, 1, 1-2-3, 3, 3-hexafluoropropan) is a colorless, odorless, non-corrosive, non-corrosive electrical insulating gas that has no residual or contamination after fire fighting.Its ODP is zero.It is a friendly environmental gas for fire fighting.And because of this feature, it can be used in special places where electrical fires can easily occur.
• • • • • • • • ▶ ▶ ▶ ▶ Envoirnment friendly clean gas, colorless, tasteless and non-corrosive.
• • • • • • • • ▶ ▶ ▶ ▶ Electrical insulation, using electric burning fire.
• • • • • • • • ▶ ▶ ▶ ▶ No residues and pollution protection zones.
• • • • • • • • ▶ ▶ ▶ ▶ No destroy the ozone layer.
Combined with fire extinguishing equipment and electronic parts, the whole system can be started automatically.
It can monitor the situation of the protected area through the detector, or it can automatically start the fire extinguishing device through the electromagnetic actuator.
The whole system can be automated.
Therefore, it can avoid the fire when no one notices the fire, but also saves a lot of working capital to supervise the protection area.
• • • • • • • • ▶ ▶ ▶ ▶ Fully automated system
• • • • • • • • ▶ ▶ ▶ ▶ Reserve of precise control
• • • • • • • • ▶ ▶ ▶ ▶ No need to monitor the employee's employment
• • • • • • • • ▶ ▶ ▶ ▶ Manual or electromagnetic control and mechanical control
The management of multiple regions is also in the security control of the whole system.We can use a system to protect multiple areas through selective valves.It allows the entire system to select different protected areas.Agents can be released into the fire.It will be very effective to put out the fire in a short time.One thing to note is that a small room should be ready to be a storage space for the entire system.
• • • • • • • • ▶ ▶ ▶ ▶ Multiple management control of the whole system
• • • • • • • • ▶ ▶ ▶ ▶ Agent the largest area is enough to protect all areas by a selector valve
• • • • • • • • ▶ ▶ ▶ ▶ Directly target expensive machines or delicate equipment
• • • • • • • • ▶ ▶ ▶ ▶ Short discharge agent
• • • • • • • • ▶ ▶ ▶ ▶ Ready for storage
• • • • • • • • ▶ ▶ ▶ ▶ Confirm location space for cylinder group
Pipe Work Total Flood System Applications
Pipeline project total flooding system is widely used in electronic computer room, telecommunications equipment, process control, data processing center, expensive medical equipment, industrial equipment, libraries, museums and galleries, clean room, anechoic chamber, emergency power supply facilities, flammable liquid storage area, etc.
Easy to fire place, such as paint spraying production line, electrical equipment, rolling machine, printing machine, oil switch, oil-immersed transformer, melt impregnating tank, water tank, large generators, drying equipment, fly ash cement production process, ship engine room, cargo hold, etc.
Pipe Work Total Flood System Competitive Advantages
As far as the description of the agent is concerned, one of its advantages is that it can be used in all kinds of fire except for metal fire.And it's clean.No residue or contamination after extinguishing.
Another is that the fm200 fire extinguishing system is a special key asset or device.It will not damage your property.Relatively speaking, being selected as a fire-extinguishing system is cheap and effective.
It is very effective to protect your property.Because it is a system, it includes a fire extinguisher in a short period of time, especially in less than 10 seconds.This means that all agents will be released in such a short time.And then you have a full-blown epidemic.
In addition, it has a time-delay mechanism.About two minutes.That means there is plenty of time for people to get out of danger when a fire breaks out.
It can protect multiple areas in a system's control.Then it will save a lot of money for large and large areas.
Pipe Work Total Flood System Working principle
Here is the illustration of working principle to whole system,

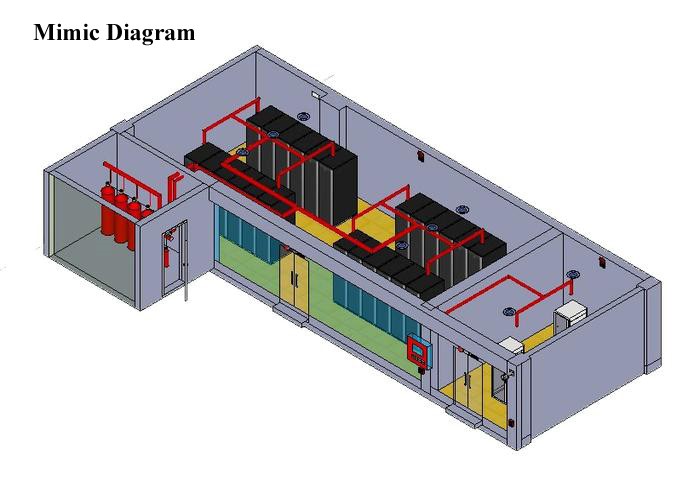

Pipe Work Total Flood System Simulated diagram
Below attached is one mimic diagram of single cabinet type of fm200 automatic fire suppression system.
