70L Cabinet Type Total Flood FM200 Fire Fighting System
1. Introduction
180L 4.2Mpa Total Flood FM200 Fire Suppression System are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.
2.Product Features.
Very swift fire suppression.
Reach extinguishing level ≤10s.
Safe to people. People is safe when exposed at the FM200 gas discharge level.
Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
Easy to clean. No residue left, and minimize damage to sensitive equipment.
Environment friendly. Zero ozone depletion potential and zero global warming potential.
Simple installation, with small storage space.
3.Specification.
| Item | Volume x Qty | Dimension(mm) Dia.xheight | Cylinder Thickness (mm) | Maximum loading density of fire extinguishing agent | Stored Pressure (20℃) | Max Working Pressure (50℃) | Activate voltage/ current | Operating Temperature Range |
| 1 | 40x1 | 300x747mm | 6 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0℃-50℃ |
| 2 | 70x1 | 350x915mm | 5 | |||||
| 3 | 90x1 | 350x1125mm | 5 | |||||
| 4 | 100x1 | 350x1225mm | 5 | |||||
| 5 | 120x1 | 350x1430mm | 5 | |||||
| 6 | 150x1 | 400x1395mm | 6 | |||||
| 7 | 180x1 | 400x1635mm | 6 |
4. Drawing&Working Principle:
It is generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.
5.Product Certificates(Now we are apply for CCC certification, we will get it soon)
6. Installation Example&Application:
Bank vaults
Libraries
Book stores
Electronic data processing
Telephone exchanges
Communication centers
Transformer and switchroom
Control rooms
Test laboratories
Flammable liquid storage

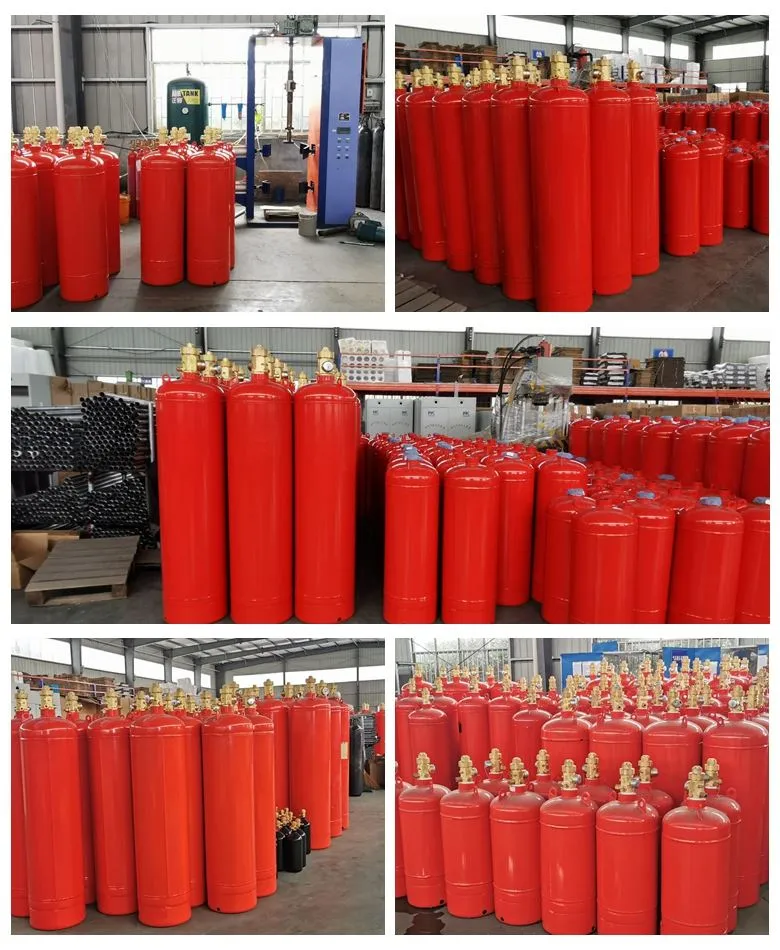

7. Our Workshop:
8. Shipping&Packing:
