Products Description

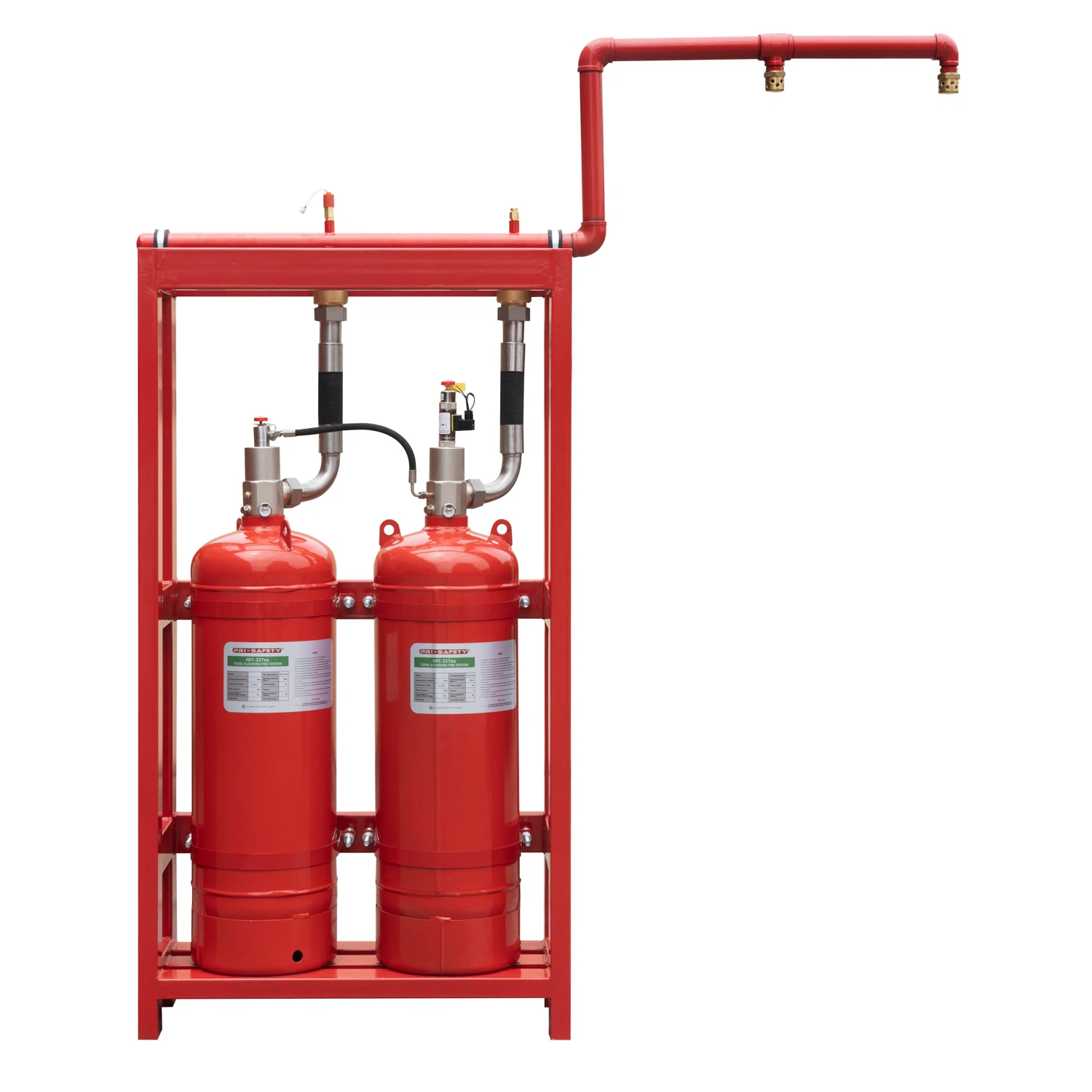

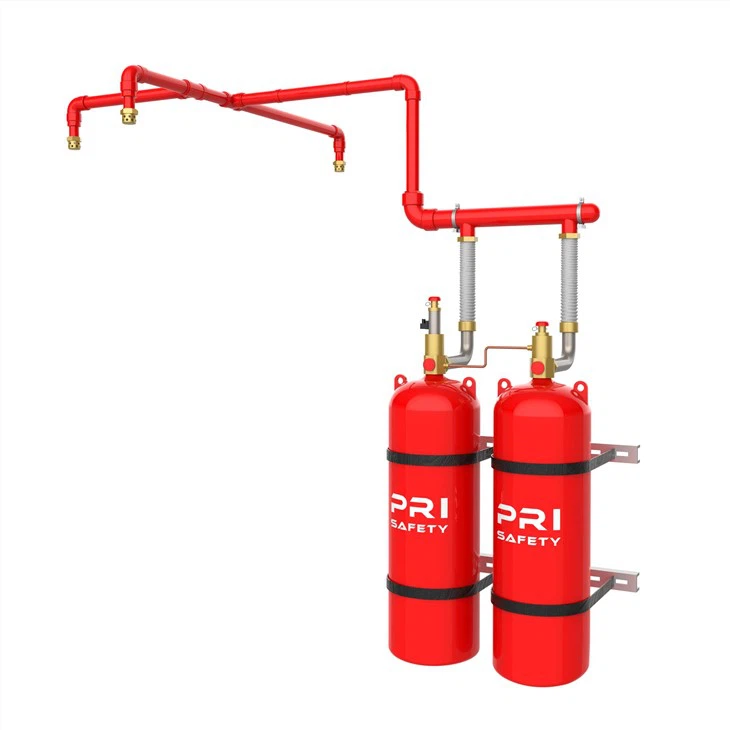

FM200 HFC-227ea Fire Suppression System With Solenoid Valve
1. PRINCIPLES OF SYSTEM
FM200 fire system devices are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.

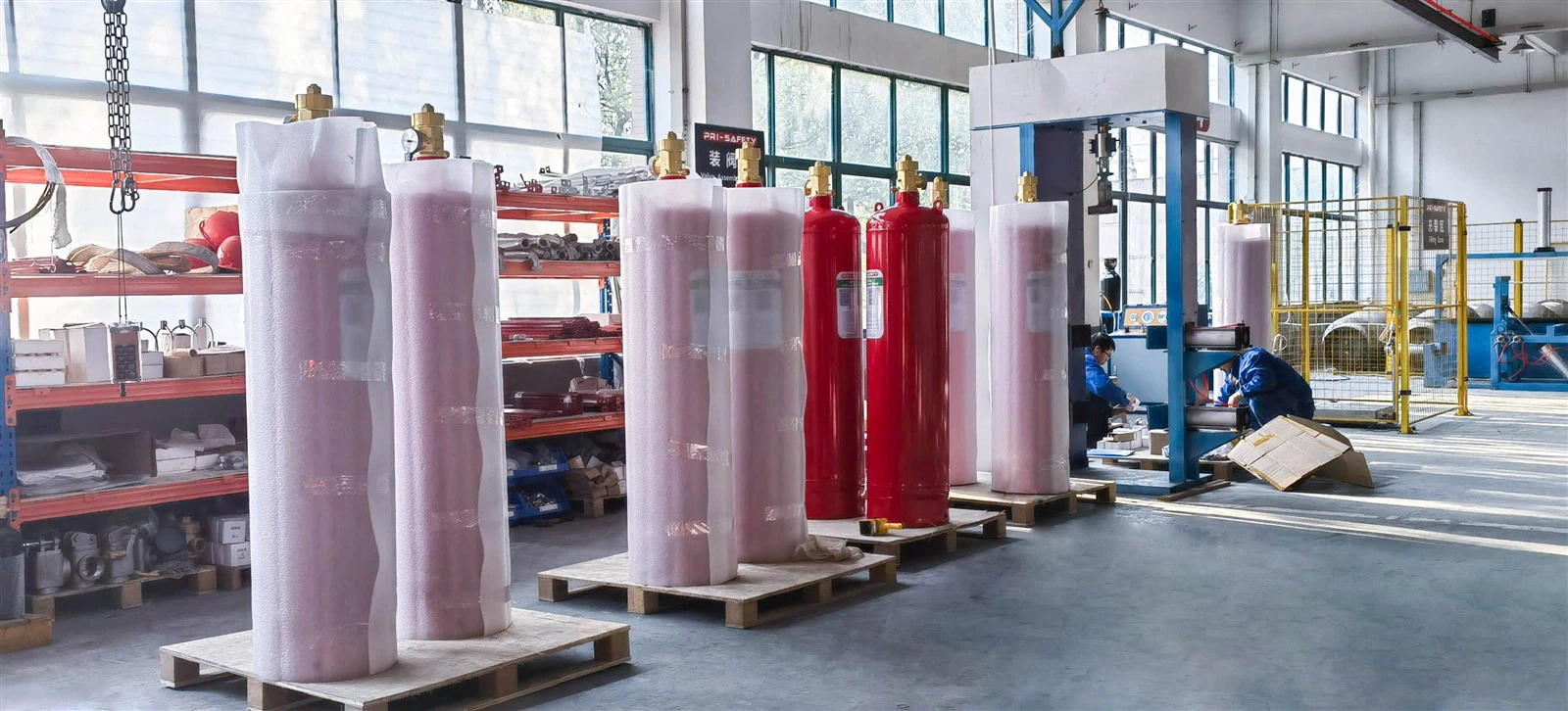

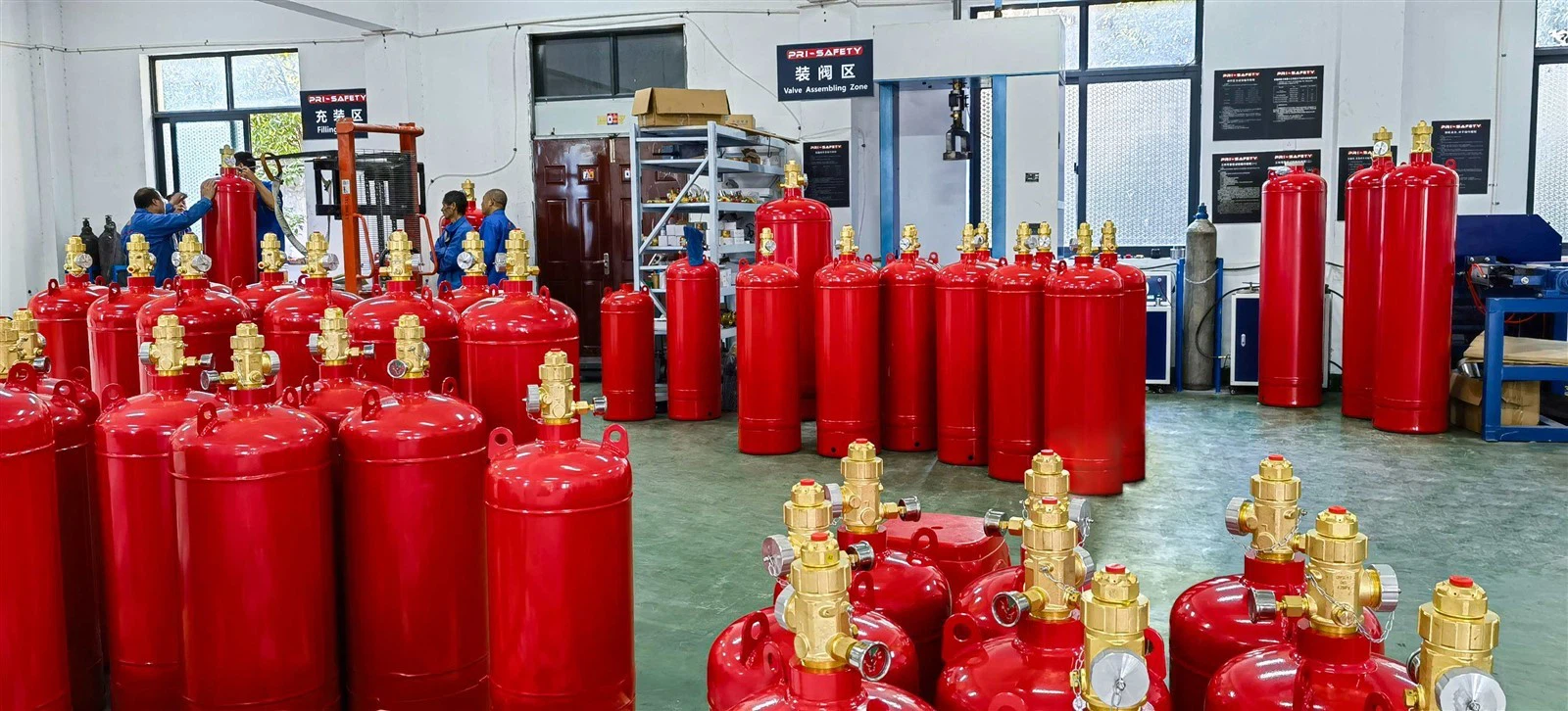

FM200 Manufacturer PRI-SAFETY Workshop
Products Advantages
Very swift fire suppression. Reach extinguishing level ≤10s.
Safe to people. People is safe when exposed at the FM200 gas discharge level.
Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
Easy to clean. No residue left, and minimize damage to sensitive equipment.
Environment friendly. Zero ozone depletion potential and zero global warming potential.
Simple installation, with small storage space.
Products Details & Specification
A. PAREMATERS
| Item | Model | Volume(L) x Qty(unit) | Dimension | Maximum loading density of fire extinguishing agent | Stored Pressure (20ºC) | Max Working Pressure(50ºC) | Activate voltage/ current | Operating Temperature Range |
| 1 | GQQ40/2.5 | 40X1 | 450×400×1450 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 2 | GQQ70/2.5 | 70X1 | 500×450×1450 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 3 | GQQ90/2.5 | 90X1 | 500×450×1600 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 4 | GQQ100/2.5 | 100X1 | 500×450×1700 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 5 | GQQ120/2.5 | 120X1 | 500×450×1850 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 6 | GQQ150/2.5 | 150X1 | 550×500×1850 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
| 7 | GQQ180/2.5 | 180X1 | 1000×450×1600 | ≤1120kg/m3 | 2.5Mpa | 4.2Mpa | DC24 V/1.2A | 0ºC-50ºC |
B. COMPONENTS

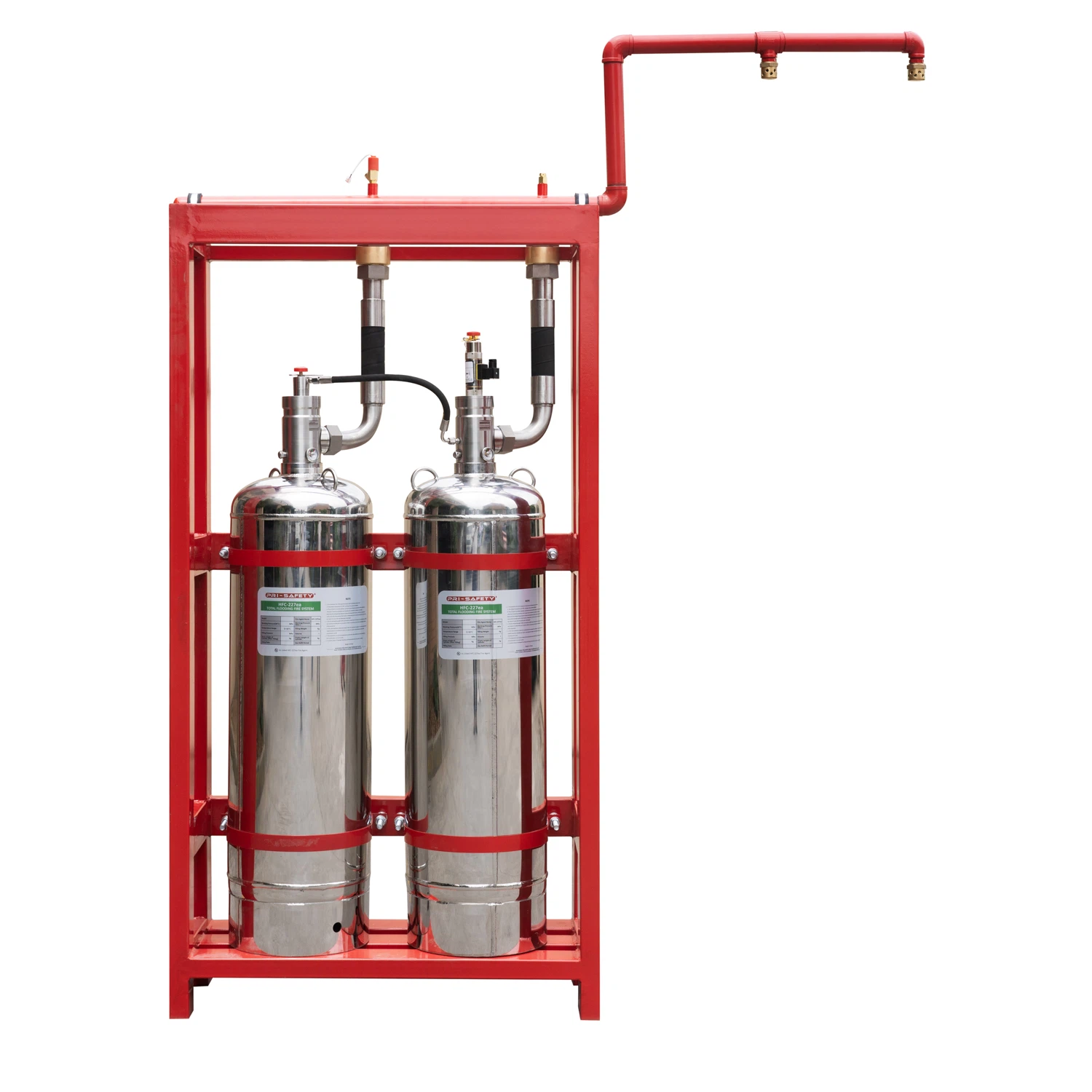

1. Storage cylinder with cabinet: Cylinder, container valve and solenoid valve, dip tube, etc.
2. High pressure hose: Connect cylinder valve and liquid check valve
3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent
4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.
Working Diagram
Products Application
Bank vaults
Libraries
Book stores
Electronic data processing
Telephone exchanges
Communication centers
Transformer and switchroom
Control rooms
Test laboratories
Flammable liquid storage
Company Profile
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN
certification, UN ECE R107 certificate for vehicle safety.
