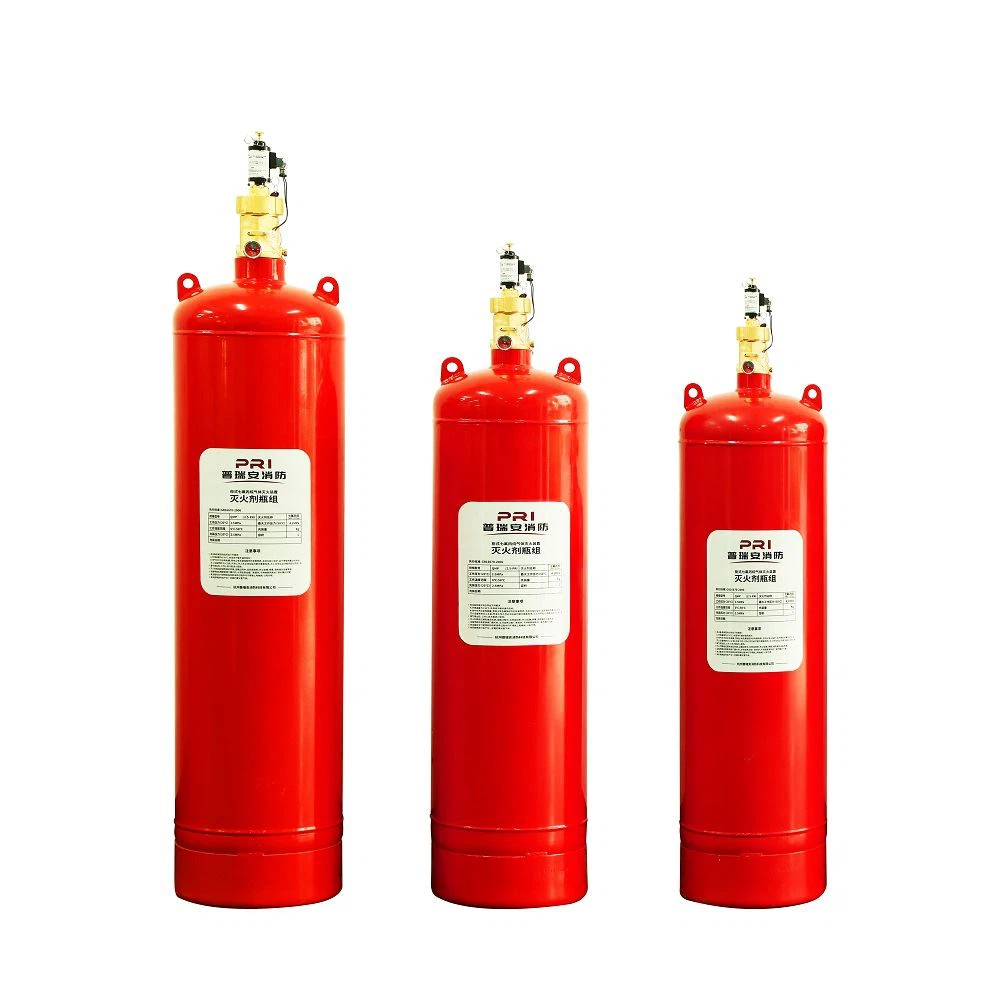

Clean Agent FK-5-1-12 Total Flooding Fire System With High Pressure Gas Cylinder
Products Description
Clean Agent FK-5-1-12 Total Flooding Fire System With High Pressure Gas Cylinder
FK-5-1-12 is an odorless, colorless, liquefied compressed gas. It is stored as a liquid and dispensed into the hazard as a colorless, electrically non-conductive vapor that is clear and does not obscure vision. It leaves no residue and has acceptable toxicity for use in occupied spaces at design concentration. FK-5-1-12 extinguishes a fire by a combination of chemical and physical mechanisms.
FK-5-1-12 provides excellent fire protection in a wide range of applications from sensitive electrical equipment to industrial applications using flammable liquids. FK-5-1-12 agent is used in total flooding fire suppression systems.
FM-200 does not work by displacing oxygen and is safe for use in occupied spaces without fear of oxygen deprivation.
Products Advantages
Easy Operate: Convenient and easy to operate
CCC Authentication: Quality assurance,safety genuine
Alarm system: Real-time detection, alert alerts
Automatic: Fire extinguishing automatically to reduce losses
Not conductive: Safety agent to pro-tect the machine
Environmentally: Green is easy to clean, no residue
Innocuity: Safe medicine, no poison harmless
Fast Fire Extinguishing: Fire extinguishing quickly reduces damage
High Quality: SUS304 stainless steel material cylinder

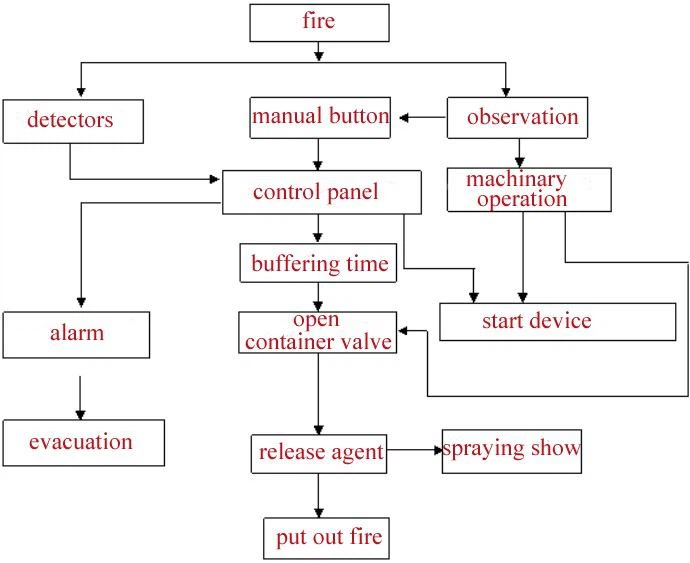

Working Principle
We have two different Activation Modes.

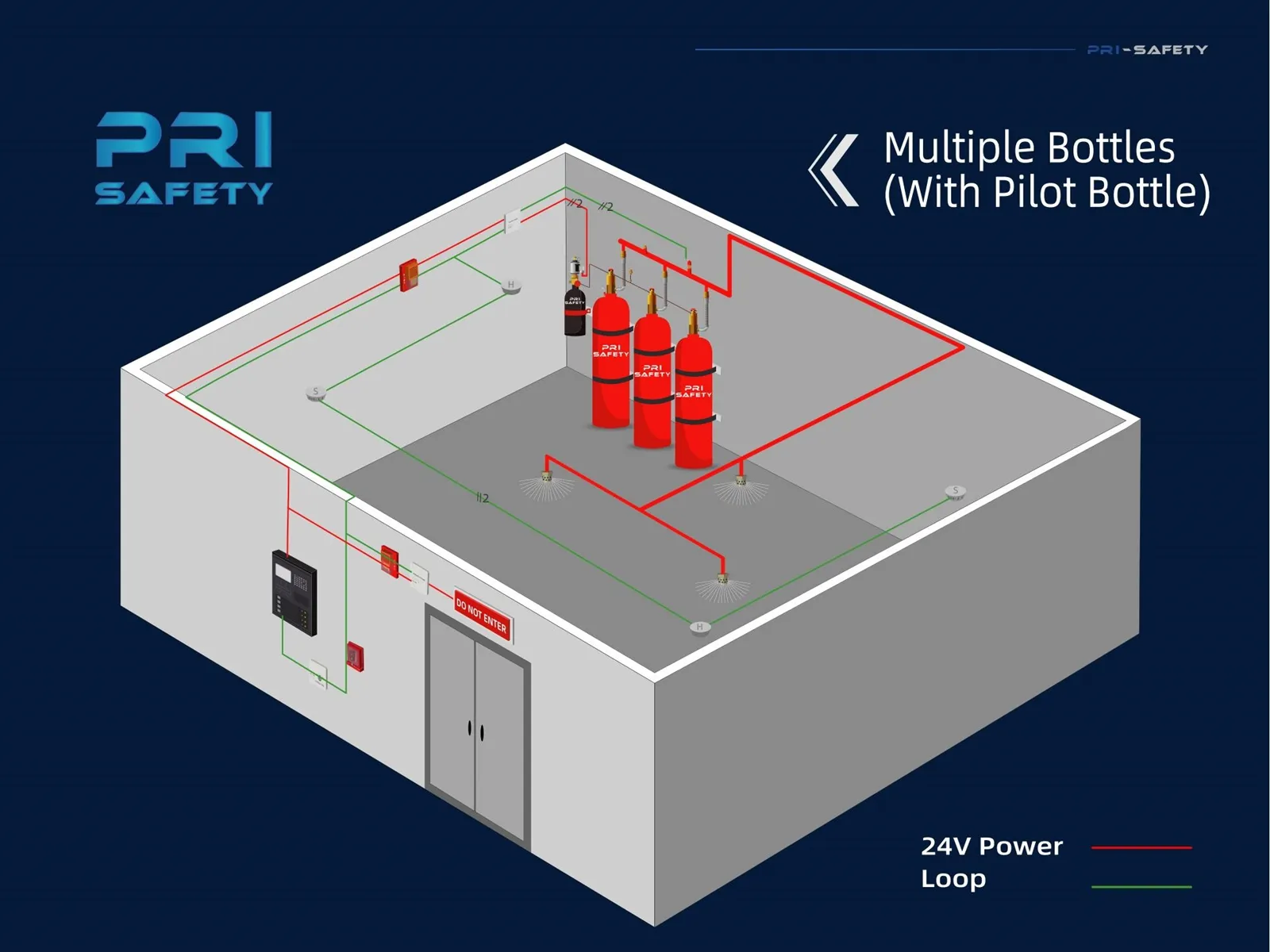

01.Pilot Cylinder Activation Mode
The Pilot Cylinder total flooding FK-5-1-12 fire system operates as follows.
1. Fire Suppression Process:
Detection and Activation: Upon fire detection, the system initiates the activation sequence.
Pilot Cylinder Activation: The pilot cylinder is activated either automatically upon detection or manually triggered. Activation of the pilot cylinder releases the pressurized gas or liquid stored within it.
Valve Operation: The release of pressure from the pilot cylinder operates valves within the system.
Solenoid Valve Opening: The pilot cylinder's operation triggers the opening of the main solenoid valve or valves that control the flow of FK-5-12 from the storage containers.
Agent Discharge: FK-5-1-12 is discharged through the distribution piping into the protected area. It quickly fills the space as a gas, displacing oxygen and effectively extinguishing the fire by cooling and interrupting the combustion process.
02. Solenoid valve Activation Mode
The solenoid valve total flooding FK-5-1-12 fire system operates as follows.
Fire Suppression Process:
Fire Detection: Upon detection of a fire by the smoke alarm or temperature alarm, a signal is sent to the fire suppression system.
Signal Transmission: The signal is relayed to the control system which activates the solenoid valve.
Solenoid Valve Actuation: Upon receiving the signal, the solenoid valve opens, allowing FK-5-1-12 to discharge from the storage container into the protected area through the piping network.
Extinguishing Action: FK-5-1-12 rapidly fills the protected area as a harmless gas, effectively extinguishing or controlling the fire.
Products Specification
Need Customized one-to-one according to the scene
The specific specifications need to be customized one-to-one according to the scene you use and the height and size of the site.
If you have any needs, please contact us and we will customize a solution for you. The above is the specification details of Cylinder Specification---4.2MPa/5.6MPa(Filling Pressure)
|
FK-5-1-12 Cylinder Specification---4.2MPa/5.6MPa |
|||
|
No. |
Specification |
Technical Parameter |
|
|
1 |
Filling pressure |
4.2Mpa |
5.6Mpa |
|
2 |
Scale of Protective region for one zone |
Area：max single-zone is 800m² volume：max single-zone is 3600m³ |
|
|
3 |
Spraying time |
10s |
|
|
4 |
Filling density |
≤950kg/m3 |
≤1080kg/m3 |
|
5 |
Power |
DC24V/1.6A |
|
|
6 |
Nitrogen Pressure of Driving Device |
6.0±1.0Mpa(20℃) |
|
|
7 |
Condition of reserving room for container |
temperature: -10~50℃, relative humidity: ≤97% |
|
|
8 |
Max working pressure |
5.6Mpa |
8.0Mpa |
|
9 |
Min working pressure |
4.2Mpa |
5.6Mpa |
|
10 |
Capacity |
16/32/40/70/82.5/90/100/120/140/150/250/345/350/450/500 L |
|
2. Normal Head Valve Paremeters
| Item | DN32 | DN40 | DN50 |
| Nech Thread | PZ56 | M64x2 | M80x2 |
| Actuator Thread | M18x1.5 | ||
| Dip Tube Thread | RC 1-1/4" | RC 1-1/2" | RC 2" |
| High Pressure Flexible Hose Thread | M48x2 | M56x2 | M68x2 |
| Pressure Guage Thread | M10x1 | M10x1 | M10x1 |
| Working Pressure | 4.2MPa | ||
| Testing Pressure | 6.3MPa | ||
| Application Cylinder | ≤100L | 120L 150L | 180L 250L |
3. Normal Pneumatic and Soleniod Valve Paremeters
| Pneumatic Valve (Normal Type) | |
| Code NO. | PV-PRI |
| Thread | M16x1.5 |
| Working Pressure | 6.6MPa |
| Solenoid Valve (Normal Type) | |
| Code NO. | SV90N-PRI |
| Thread | M18x1.5 |
| Power | DC 24V |
| Drive Force | 90N |

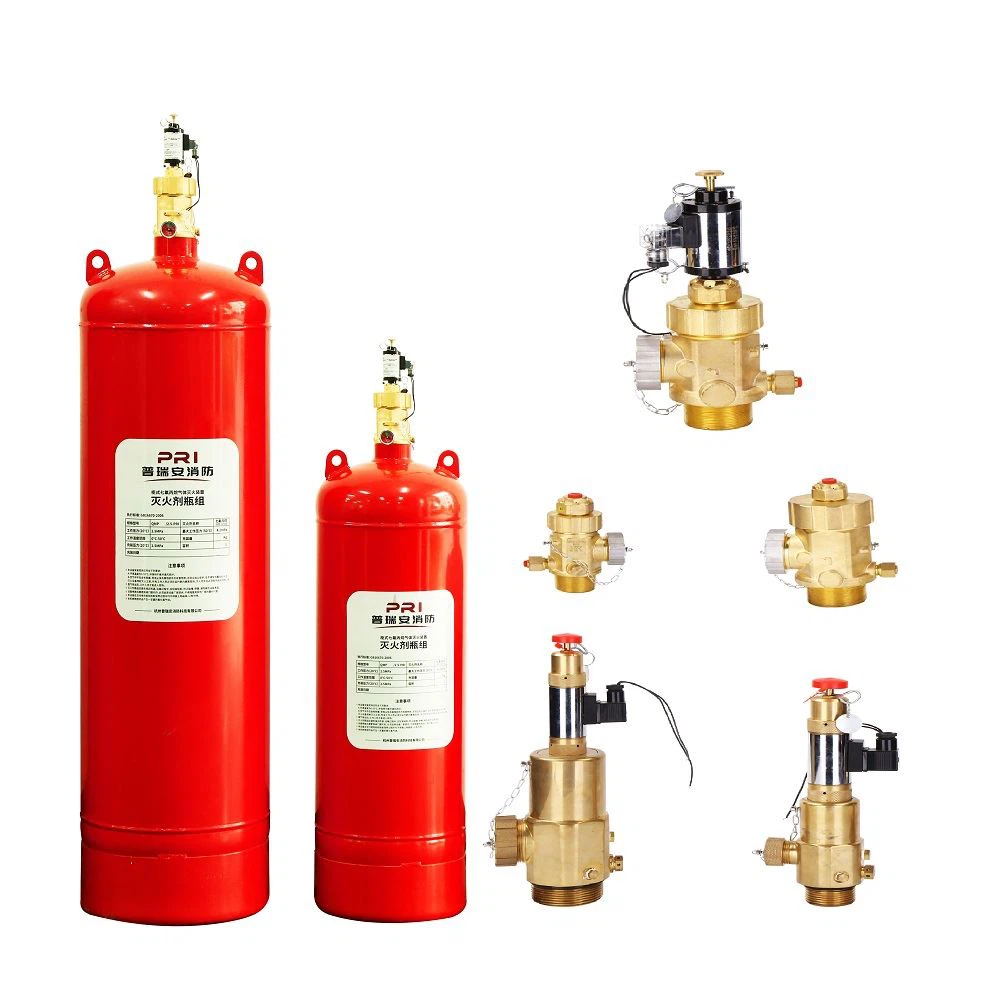

4. High Quality Head Valve Paremeters
|
Code NO.
|
AV25/4.2-PRI AV25/5.3-PRI |
AV50/4.2-PRI AV50/5.3-PRI |
|
| Size | G 1" | G 2" | |
| Nech Thread | 2-8UN.2A | 3 1/4-8UN.2A | |
| Nech Thread | G 1" | G 2" | |
| High Pressure Flexible Hose Thread | G 1" | G 2" | |
| Pressure Guage Thread | 1/8" NPT | 1/8" NPT | |
| Working Pressure | 6.7MPa | 6.7MPa | |
| Testing Pressure | 10.05MPa | 10.05MPa | |
|
<70L | 70L 90L 120L 150L 180L |
5. High Quality Pneumatic and Soleniod Valve Paremeters
| Pneumatic Valve (High Quality Model) | |
| Code NO. | APV-PRI |
| Thread | G 1" |
| Working Pressure | 6.6MPa |
| Solenoid Valve (Hight Quality Model) | |
| Code NO. | ASV90N-PRI |
| Thread | G 1" |
| Power | DC 24V |
| Drive Force | 90N |
6. Gas Check Valve and Pressure Switch
| Gas Check Valve | ||
| Code NO. | GCV6/6.6-PRI | |
| Inlet/Outlet | M14*1.5 | |
| Open Force | 0.2MPa | |
| Working Pressure | 6.6MPa | |
| Material | HPb59-1 | |
| Pressure Switch | ||
| Code NO. | PS0.8/5.3-PRI | |
| Operating Pressure | 0.8MPa±0.08MPa | |
| Thread | RC 1/2" | |
| Material | HPb59-1 | |
7. Normal Pressure Gauge Paremeters
| Code NO. | PG/2.5-PRI | PG/4.2-PRI | PG/5.3-PRI | PG/6.6-PRI |
| Working Pressure | 2.5MPa | 4.2MPa | 5.3MPa | 6.6MPa |
| Thread | M10x1 | |||
8. High Quality Pressure Gauge Paremeters
| Code NO. | PG/2.5-PRI | PG/4.2-PRI | PG/5.3-PRI |
| Working Pressure | 2.5MPa | 4.2MPa | 5.3MPa |
| Thread | 1/8' NPT | ||
9. Flexible Hose With Elbow Paremeters
| Size | DN32 | DN40 | DN50 |
| Code NO. | FHE/32-PRI | FHE/40-PRI | FHE/50-PRI |
| Thread | M48x2 | M56x2 | M68x2 |
| Material | Brass (HPb59-1) | ||
| Length | 700mm | ||
10. Flexible Hose Without Elbow Paremeters
| Size | DN32 | DN40 | DN50 |
| Code NO. | FH/32-PRI | FH/40-PRI | FH/50-PRI |
| Thread | M48x2 | M56x2 | M68x2 |
| Material | Brass (HPb59-1) | ||
| Length | 500mm | ||
11. Fire Alarm System
Products Drawings
Products Application
The FK-5-1-12 Fire system is widely used in various scenarios, including but not limited to
computer rooms, data processing centers, semiconductor manufacturing facilities, industrial process control rooms, petrochemical facilities, chemical storage rooms, libraries and museums, critical military applications, Bank vaults, Libraries, Book stores, Electronic data processing, Telephone exchanges, Communication centers, Transformer and switch room, Control rooms, Test laboratories, Flammable liquid storage.
