Kitchen Hood Fire System PRI-SAFETY offers Wet Chemical Fire Suppression Systems for kitchens of all sizes in China. Kitchens are high-risk environments where fires could have a drastic impact on lives and property. PRI-SAFETY suppression systems will be tailored to your kitchen and are suitable...
Send Inquiry
Chat Now
Description
Technical Parameters

Hangzhou PRI-SAFETY Fire Technology Co., Ltd. is known as one of the most professional manufacturers and suppliers of various safety products in China. If the commercial kitchen fire suppression systems automatic restaurant fire fighting equipment meets your requirement, welcome to buy quality equipment made in China here from our factory. Our factory will offer you one stop service and one year warranty.



Products Description

Restaurant Class K Kitchen Hood Automatic Fire Suppression Systems (Fusible Link Type)


The fire suppression system incorporates a flexible design with an extremely effective wet chemical that quickly knocks down flames and cools hot surfaces while generating a tough vapour-securing blanket that helps prevent reflash.


The wet chemcial fire suppression system is designed to protect cooking equipment including various types of fryers, griddles, range tops, broilers, char-broilers and woks. It also detects and suppresses fire in ventilating equipment including hoods, ducts, plenums and auxiliary grease extraction devices.


PRI-SAFETY Wet Chemical Mechanical Kitchen Fire Suppression system have been specifically designed to protect home/commercial kitchen and put out cooking fires caused by grease orgrease-laden vapors (class F or class K fire) quickly and efficiently.

When a fire occurs in a protected area, it is quickly detected by the sensors the cooker appliance hood. The detectors trigger the automatic releasing mechanism which actuates the system - pressuring the agent storage tank and automatically shutting off the appliance energy.

product-1000-1000

 product-3072-4096

product-4032-3024product-4032-3024



Product Advantages



* Simple, high quality and well engineered system. Easy to install

* Fast, automatic actuation

* Stainless steel pipework, fittings and nozzles to suit kitchen environments.

* Linear heat and flame detection, allowing for multiple of detection points. Flexible piping requirements

* Remaining operational during power interruption

* Quick, easy clean up once appliances have cooled, the agent can be easily wiped away from equipment

product-750-500

Product Specification

product-2667-1500

Item NO.

6L (1.6Gallon)

12L (3.0Gallon)

18L (4.6Gallon)

24L (6.0Gallon)



Agent Capacity (L)

6L X 1

12L X 1

18L X 1

24L X 1



Spray Nozzle (pc)

5

10

15

20



Temp. Detector (pc)

2

4

6

8



Fuel cut-off valve

Depending



Protective Range

2~3 m

3~5m

5~8m

8~10m



Pulley

6

8

8

10



Activation Temperature

185ºC/232ºC



Discharging time (S)

≥30S



Working Temp (ºC)

0-55ºC



Working Pressure(Bar)

14Bar



 product-1000-1000

Working Diagram

product-3001-1788
product-706-399
How it works?
PRI-SAFETY Fire Suppression System incorporates a flexible design with an extremely effective Low pH Liquid Agent. PRI-SAFETY Kitchen Fire Suppression System quickly knocks down flames and cools hot surfaces, while generating a tough vapor securing blanket that helps prevent re-flash. The system is designed to protect areas associated with ventilating equipment, including hoods, ducts, plenums, and filters.
It also protects auxiliary grease extraction equipment and cooking equipment such as various types of fryers, griddles, range tops, broilers, char-broilers and woks. The system is ideally suited for commercial kitchens in fast food chains, retail food courts, diners, convenience stores, catering facilities, mobile food trucks, hotels and casinos, stadiums, schools, hospitals and more. The system is cooking equipment friendly and offered in two designs:Appliance-Specific and Overlapping. The appliance-specific design aims the nozzles at the specific hazard areas of each appliance. With the overlapping design, the nozzles are arranged to overlap and provide a continuous zone of protection within a group of appliances.







Product Application

11

Based on Kitchen Hood Size
1. Cafeterias 2. Cruise Ships
3. Culinary Schools 4. Delis
5. Fast Food Chains 6. Food Courts
7. Hotels 8. Facilities
9. Restaurants 10. School Cafeterias
11. Sports Complexes/Stadiums 12. Hospital
13. .....

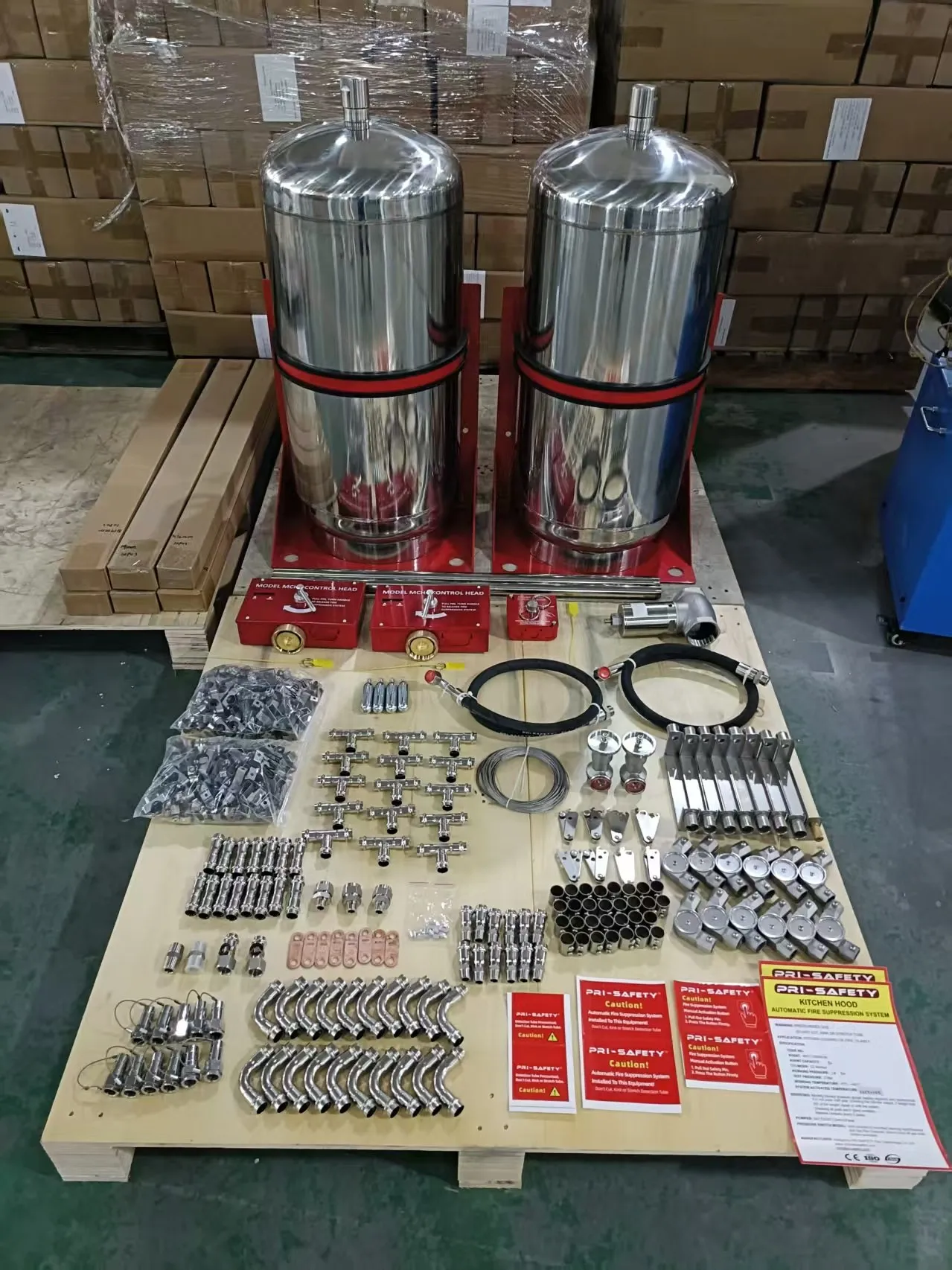

Packing & Delivery

  • product-1279-1706

  • product-3468-4624

  • product-1279-1706
  • product-1734-2312

Company Profile

Hangzhou PRI-SAFETY Fire Technology Co.,Ltd.

PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.



And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc



We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.

Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN

certification, UN ECE R107 certificate for vehicle safety.
