We are known as one of the most professional manufacturers and suppliers of various safety products in China. If the 2m 2.5m 3m 4m 6m tube extinguisher automatic tube fire suppression system blazecut type for car engines and electrical panel meets your requirement, welcome to the quality equipment made in China. Our factory will offer you one stop service and one year warranty.
Product Description
Automatic Fire Suppression System Tube Extinguisher
PRI-SAFETY Automatic Tube Fire Suppression System is an innovative self-activating fire extinguisher specially designed for electrical panels, control cabinets, battery boxes, and other enclosed compartments.
It integrates both the storage container and discharge system in a single compact unit, providing fast, automatic fire detection and suppression directly at the fire source.The tube system is pressurized and filled with a clean extinguishing agent Novec1230 , FM200. The tube acts as a fire sensor and discharge line at the same time, with stainless steel fittings and a pressure gauge at either end for easy monitoring.

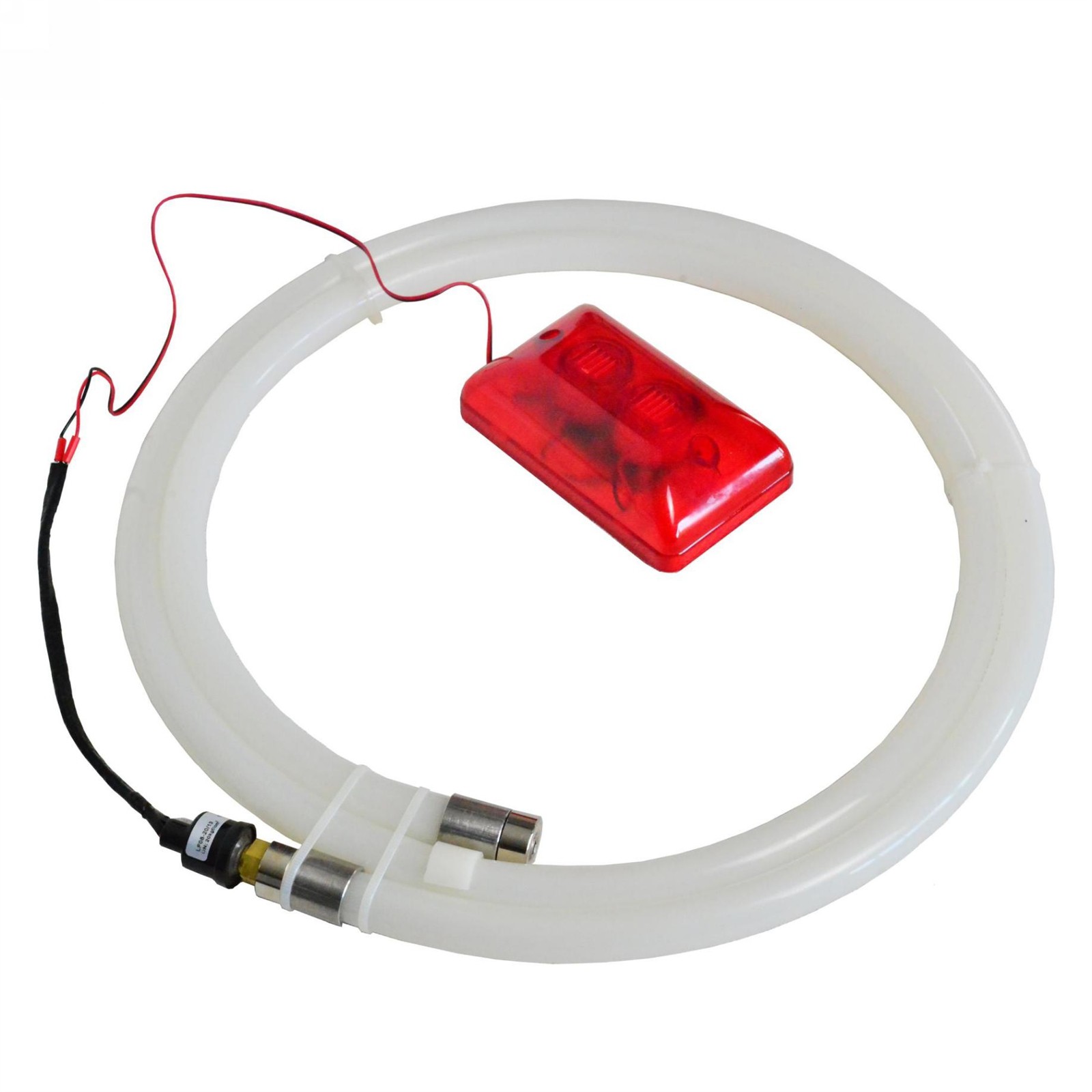

Optional accessories include a temperature sensor, fire alarm module, pressure switch, and GPS tracking system for remote fire notification.
When a fire starts, the heat causes the detection tube to soften, rupture, and open at the hottest point, releasing the extinguishing agent directly onto the flames. The localized discharge quickly cools and suppresses the fire before it can spread. At the same time, the alarm is activated, and if equipped, the GPS module sends the fire alert and location to the user in real time.The system operates without any external power source, requires no maintenance, and offers up to 5 years of reliable protection.
Product Features
• No service or maintenance required for 5 years
• Automatic activation without power support
• Non-toxic and environmentally friendly
• Suitable class A B C D E fires
• Portable and lightweight
• No residue after extinguishing-no clean-up costs
• Optional accessories include a temperature sensor, fire alarm module, pressure switch, and GPS tracking system for remote fire notification.
• Easy Installation
| Key Functions |
Basic Function1. Automatic Fire Suppression
The heat-sensitive detection tube softens and ruptures at the hottest point when flames occur, releasing the extinguishing agent directly onto the fire. This localized discharge quickly suppresses flames, preventing fire spread and minimizing damage to electrical components and battery systems.
Improved Function 2.Alarm Activation
The system automatically triggers an alarm when a fire is detected, alerting personnel immediately. Optional temperature sensors, pressure switches, and fire alarm modules provide enhanced monitoring and safety.
Improved Function 3.Temperature Real Time Monitoring and Remote Fire Notification
Control Panel shows real time temperature with monitoring; Tracking system can send real-time fire alerts and location information to users.
Technical Parameters
| Code | TFS-0.5 | TFS-01 | TFS-02 | TFS-03 | TFS-04 | TFS-05 |
| Length x Dia | 0.5mx18mm | 1mx18mm | 2mx18mm | 3mx18mm | 4mx18mm | 5mx18mm |
| Agent Capacity | 100g | 200g | 400g | 600g | 800g | 1000g |
| Protection Space | 0.1 ~0.125m3 | 0.2~0.25m3 | 0.4~0.50m3 | 0.6~0.75m3 | 0.8~1.0m3 | 1.0~1.25m3 |
| Agent Type | FM200 (HFC-227ea) / Novec1230(FK5112) | |||||
| Material | Polyamide Tube | |||||
| Pressure at 20 ° C | 0~4 Bar/1~6 Bar | |||||
| Pressure at 100° C | 19Bar / 15Bar | |||||
| Burst Temperature | 85° C± 10 ° C / 100° C± 10 ° C | |||||
| Working Temperature | -40° C~+90° C | |||||
| Shelf Life of Systems | 5 Years | |||||
Installation
Application

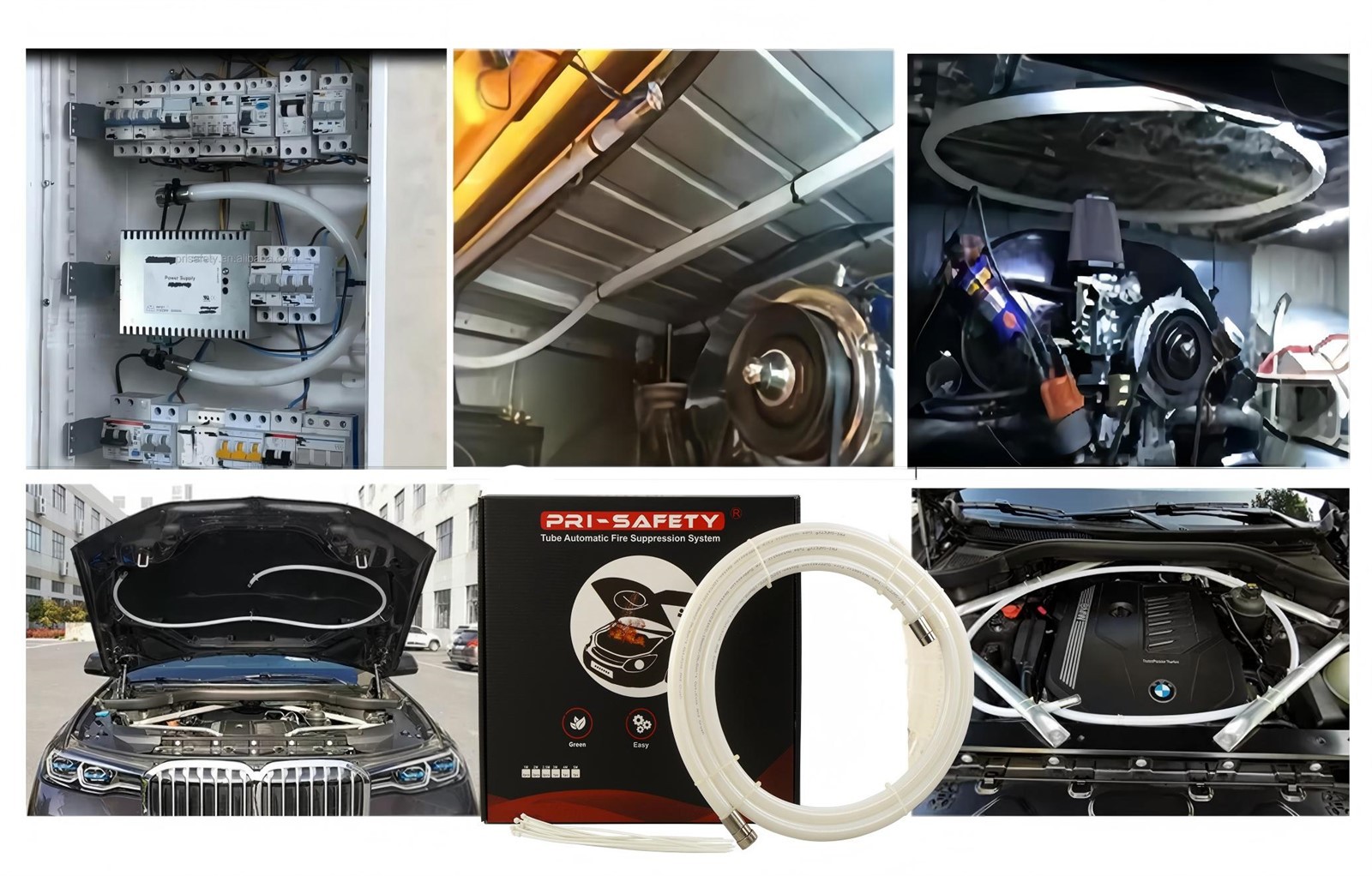

Tube Extinguisher provides powerful and reliable protection for a wide range of Class A, B, C, and E fires, making it ideal for:
• Electrical cabinets and control panels
• Battery boxes and server racks
• Vehicles such as trucks, vans, sports cars, and luxury cars
• Marine applications including boats and yachts
Workshop

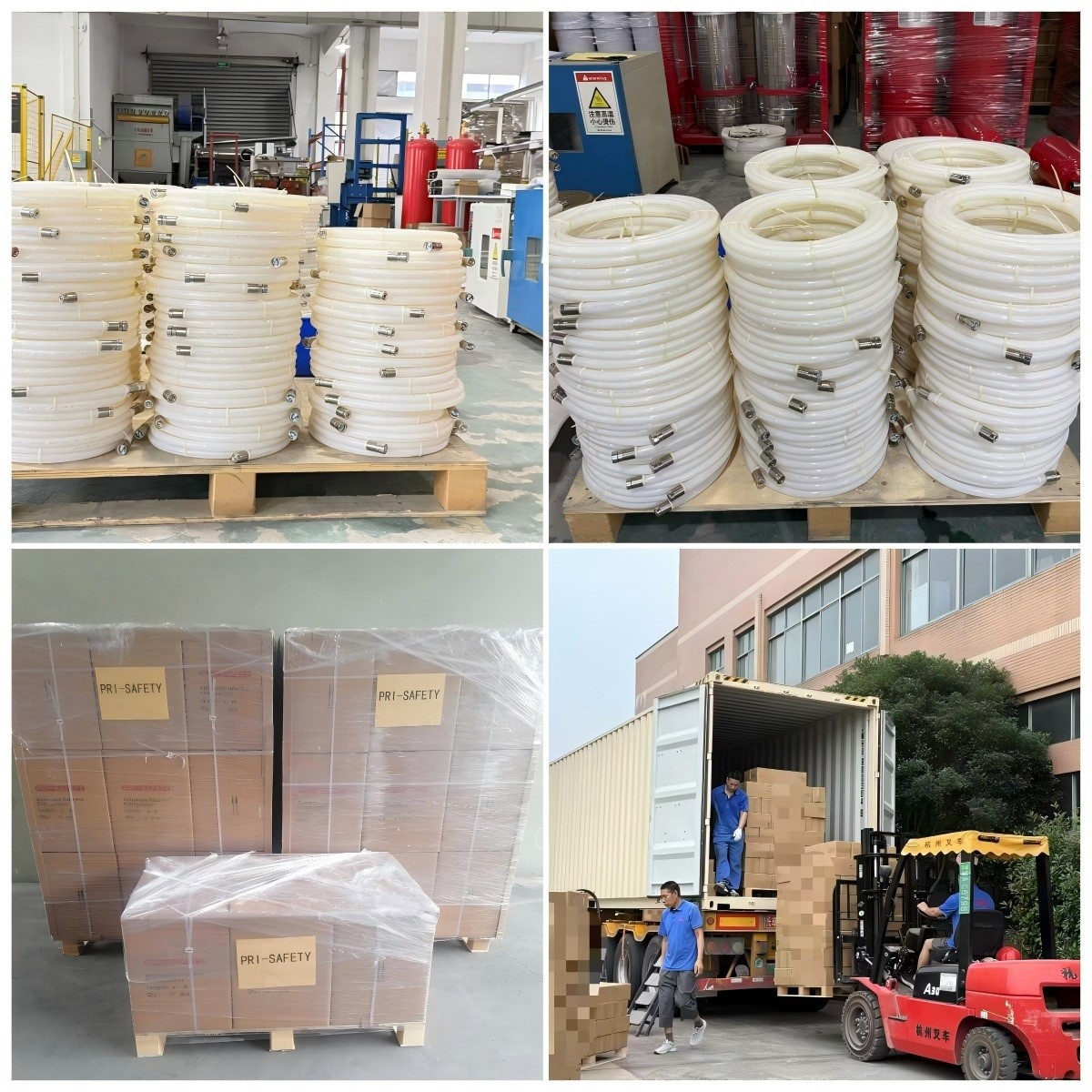

PRI-SAFETY Tube Fire Extinguisher is professionally manufactured and Each unit is built under strict quality test to guarantee consistent performance and durability.
Packing and Delivery
• Each products will be tested and inspected before packing-quality assurance.
• Environment friendly packaging -to help your business go green.
• Professional ,convenient and efficient packaging-to protect your goods well.
Company Profile
HANGZHOU PRI-SAFETY FIRE TECHNOLOGY CO.,LTD
PRI-SAFETY , established in 2005, is a tech enterprise, specializing in the manufacturing ,R&D of fire extinguishers and automatic fire suppression systems .As the leading fire protection company , We are dedicated to keeping people and property safe from the devastating effects of fires. With a comprehensive range of high-quality products and innovative solutions, we are committed to delivering top-notch fire protection to our valued customers.
Our Expertise:
The Fire Extinguishers; We provide a wide range of high-quality fire extinguishers suitable for various environments, including homes, offices, industrial facilities, and vehicles. Our extinguishers are designed to be user-friendly and effective in combating different types of fires.
Fire Suppression Systems; PRI-SAFETY specializes in designing and manufacturing effective fire suppression systems. Automatic Fire Suppression Systems For Vehicles And Mechanical Equipment, Kitchen Fire Suppression System, FM200/Novec1230 Total Flooding Systems, Water Mist Fire System, Foam Sprinkler Mist Fire Systems, And Mobile Compressed Air Foam Equipment. The products are used in mining, petrochemical,transportation, electric power, industry, construction and other fields. PRI-SAFETY engineer team will assess your specific requirements and recommend the most suitable solutions.
At PRI-SAFETY, we are dedicated to delivering the highest standards of fire protection products, ISO,CE, EN, and UL. Our products undergo rigorous testing and meet industry certifications, ensuring their reliability and effectiveness. Whether it's fire extinguishers, automatic fire systems, or specialized solutions, we have the expertise and resources to meet your fire safety needs.
