Name: Tube Automatic Fire Suppression System Tube Extinguisher For Electrical Equipment
Brand: PRI-SAFETY
SKU: 284421346

Tube Automatic Fire Suppression System Tube Extinguisher For Electrical Equipment

Tube Automatic Fire Extinguisher System helps to protect vehicle engine compartments and electrical equipments and vastly reduces the risk of fire spreading to other parts.
The tube consists of a heat sensitive tube which is sealed at either end with stainless steel fittings and also with clean fit(FM200/FE-36/FK-5112).
Tube Automatic Fire Extinguisher System can monitor the fires and extinguish quickly before spread.

Send Inquiry

Chat Now

Description

Technical Parameters

We are known as one of the most professional manufacturers and suppliers of various safety products in China. If the tube automatic fire suppression system tube extinguisher for electrical equipment meets your requirement, welcome to the quality equipment made in China. Our factory will offer you one stop service and one year warranty.

Products Description

WPS0

Tube Automatic Fire Suppression System

Tube Automatic Fire Extinguisher System helps to protect vehicle engine compartments and electrical equipments and vastly reduces the risk of fire spreading to other parts.

The tube consists of a heat sensitive tube which is sealed at either end with stainless steel fittings. The tube acts as both the storage medium and as the fire detector. The tube is unaffected by temperatures of up to 120 Degrees Centigrade but fire is of course much hotter and will cause the tube to burst, immediately extinguishing any nearby flames.

The detection tube is filled with clean agent which is almost odourless discharges as a liquid instantly dispersing in the form of a gas and leaves no residue. Importantly the fluid itself does not conduct electricity or cause thermal shock damage. Comparing with powder or foam agent,you get the additional benefit that after use there is no extinguishant residue and consequently none of the cleanup cost associated with foam and powder.

The system requires no maintenance during its entire working life. It can be installed by any competent individual, and thus no training is required for installation.

Product Advantages

1. Totally automatic and independent of electricity

2. Quick Extinguishing Fires: Monitoring the fire and put out fires at first time
3. Easy to install and no maintenance

4. No need to clean again after use: Comparing with powder or foam agent,you get the additional benefit that after use there is no extinguishant residue and consequently none of the cleanup cost associated with foam and powder
5. Wide-range in application: 1.Vehicle Fires: Cars, Vans, Bus, mini bus, truck, rally car, mining machine or construction machine. 2. Electricals Fire: electrical cabinets, electric room, fuse boxes, audio-video equipment, date room, Lithium battery boxes.

Product Specification

WPS0

CODE	TFS-0.5	TFS-01	TFS-02	TFS-03	TFS-04	TFS-05	TFS-06
Length x Dia	0.5mx18mm	1mx18mm	2mx18mm	3mx18mm	4mx18mm	5mx18mm	6mx18mm
Agent Capacity	100g	200g	400g	600g	800g	1000g	1200g
Protection Space(m3)	0.1 ~0.125	0.2~0.25	0.40~0.50	0.60~0.75	0.8~1.0	1.0~1.25	1.20~1.50
Agent Type	FM200 (HFC-227ea) / FE-36(HFC-236fa)/FK-5112
Material	Polyamide Tube
Burst Temperature	85° C±10 ° C /120° C± 10 ° C
Working Temp.	-40° C~+90° C
Shelf Life of Systems	5 Years

How it works

How it works

PRI-SAFETY FM-200 Clean Agent Automatlc Flre Suppression Tube is a special polyamide tube, the outDia.18mm, and different length as required, it is a compressed gas-extinguishing FM200(HFC-227ea) Or FE36(HFC-236fa), called Heptafluoropropane or Hexaflluoropropane too.When Temperature reach 100'C/120'c, the softened tube burst one round hole to release the extinguishingagent to extinguish the fire in very short time.

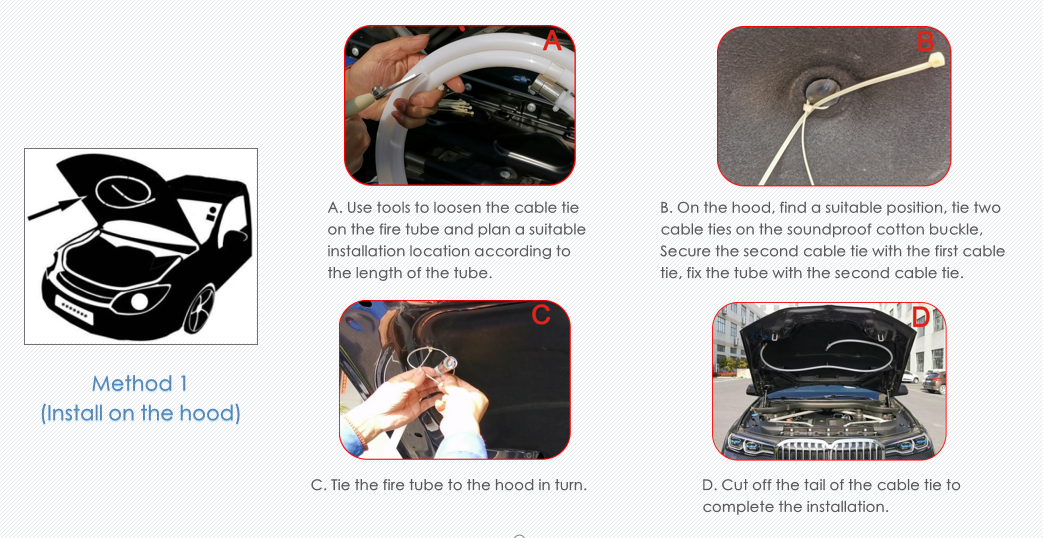

Vehicle(Car) Installation Place 1

product-1043-538

Vehicle(Car) Installation Place 2

product-1045-544

Electric Cabinet Installation Place product-350-304
