Products Description
The PRI-SAFETY Cartridge Automatic Fire Suppression System is engineered specifically for heavy-duty mining machinery and off-road vehicles. This pre-engineered solution integrates automatic detection, rapid fire suppression, and multiple activation modes into a compact unit, achieving response times under 10 seconds during the initial fire stage. The system effectively controls fire spread, protecting expensive equipment assets and ensuring operator safety in high-risk environments.
Compatible with standard 24V vehicle power systems, the system features a space-saving design for easy installation and minimal maintenance requirements. It has been widely deployed across surface mining equipment, underground mining machinery, forest harvesting equipment, agricultural machinery, and municipal buses, making it an ideal choice for mining, construction, and forestry industries.
Core Value Proposition: Factory direct pricing one-stop technical support flexible customized solutions comprehensive fire protection.
Specification & Features
1. Specification
|
Engine automatic fire suppression system for heavy duty machines
|
|||
|
Capacity (L) |
20LBS(1x9kg), 30LBS(1x15kg), 40LBS(2x9kg), 50LBS(1x25kg), 60LBS(2x15kg), 100LBS(2x25kg), support OEM |
Pilot cylinder capacity | 200mLx3pcs |
| Activation Temp. | 138℃ or 180℃ | Small Gas bottle capacity | 1.4L x 1pc (9kg) |
|
Working pressure |
14Bar |
Small Gas bottle material | Carbon Steel |
|
Fire agent |
Dry Powder ABC90% | Discharges Time | ≤10s |
|
Cylinder material |
Stainless Steel 304 | Power Required | 24V (If powder is different, Transformer is Optional) |
2. Features
Factory Direct Supply
20+ years of professional fire equipment manufacturing experience with direct supply from the source manufacturer, ensuring highly competitive pricing without middleman markup.
Triple Activation Guarantee
Automatic temperature activation plus control panel electric activation plus mechanical emergency activation, ensuring reliable triggering under any situation for comprehensive protection.
Rapid Response Firefighting
Detection to agent discharge completed in less than 10 seconds, enabling quick control during the initial fire stage and minimizing equipment damage and financial losses.
Flexible Customization Solutions
Multiple capacity options including single-bottle, double-bottle, and multi-bottle systems configurable according to specific needs, adapting to different vehicle types and fire protection requirements.
Quality Fire Extinguishing Agents
Filled with ABC90% dry powder, an environmentally friendly agent with excellent fire suppression capabilities covering Class A (solid materials), Class B (flammable liquids), and Class C (flammable gases) fires.
Durable and Reliable Design
SUS304 stainless steel cylinders with 14Bar working pressure, tested at 27Bar pressure during manufacturing to ensure structural integrity and reliability in harsh mining and construction environments.
Strict Certification Compliance
UNECE R107 vehicle safety certification and CE certification, meeting international quality and safety standards for global market acceptance.
One-Stop Service Support
Providing comprehensive scheme design, installation guidance, technical training, after-sales maintenance, and other full-process support to ensure optimal system performance and customer satisfaction.
3. System Components
Fire Extinguishing Cylinder: SUS304 stainless steel storage bottle with 14Bar working pressure, factory-tested to 27Bar for harsh operating conditions.
Fire Extinguishing Agent: ABC90% dry powder, effective for Class A, B, and C fires.
Temperature Sensing Detection: Flexible detection cables routed through high-risk areas such as engine compartments and hydraulic systems to monitor ambient temperature in real-time.
Activation Temperature: Available in 138°C or 180°C threshold options.
Discharge Time: ≤10 seconds for complete agent release.

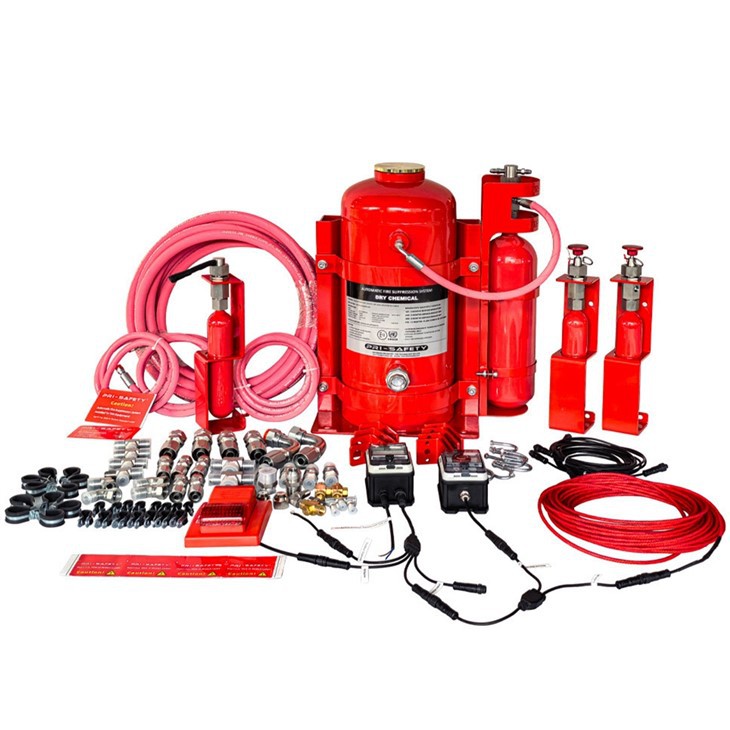

A complete system typically includes:
Dry powder storage cylinder
Detection cable (LHD)
Control panel
Solenoid or mechanical actuator
Discharge pipes and nozzles
Manual activation device
These components work together to ensure reliable and immediate fire suppression in critical zones.

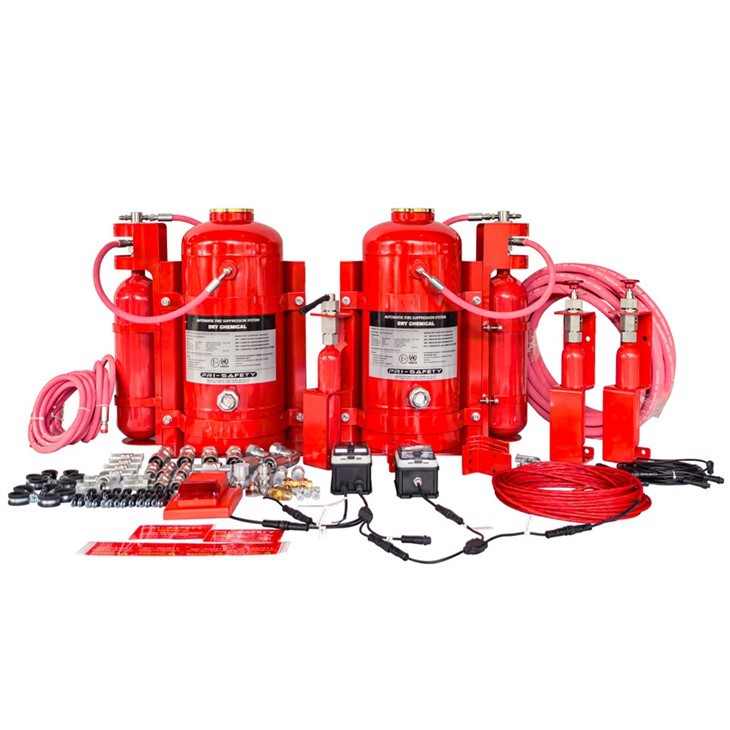

4. Product Pictures

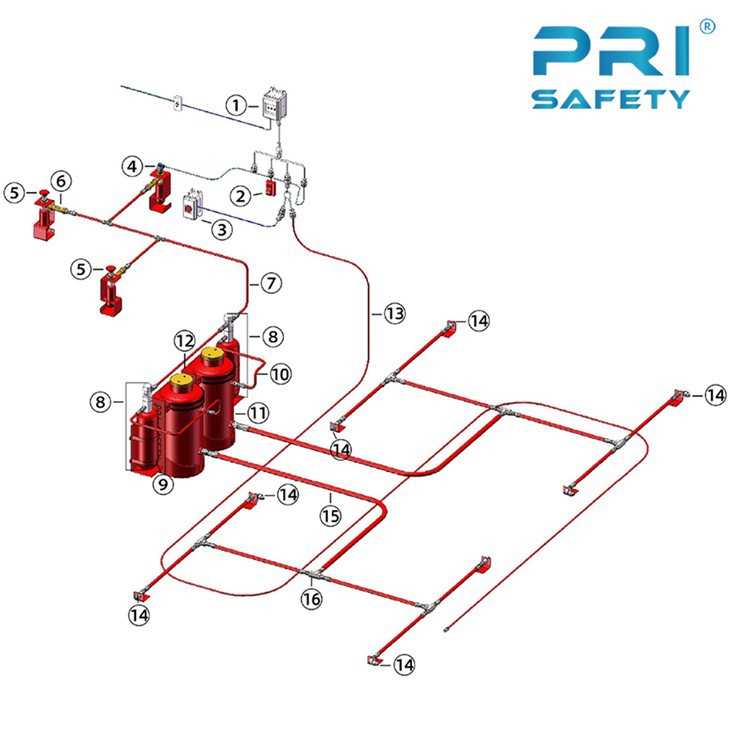

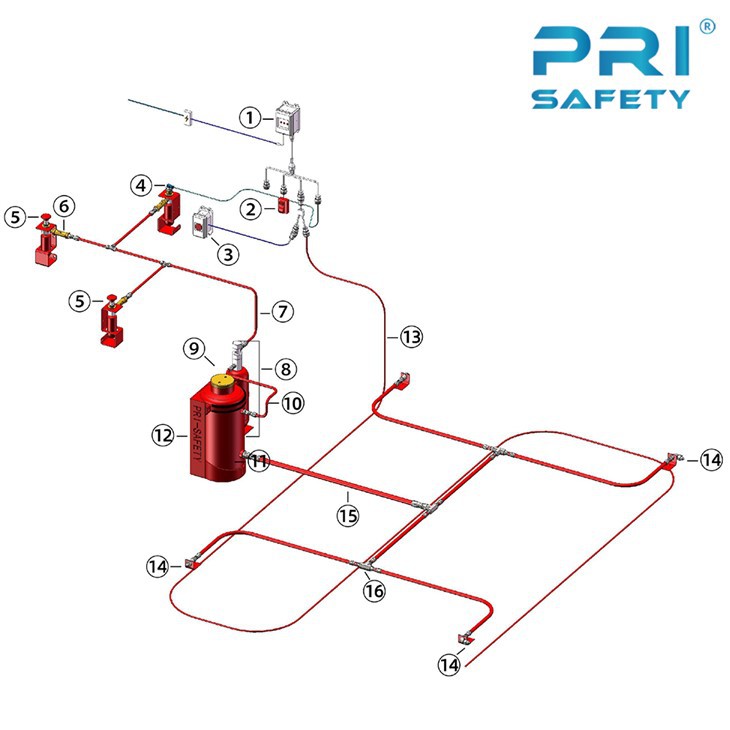

How it Works
product key technologies
Manual Model
Operators can activate the system manually via the control panel button or external pneumatic actuator.
Ideal for emergencies where immediate human intervention is required.
Automatic Model
The detection cable continuously monitors the protected area.
Once the temperature reaches 138°C or 180°C, it sends a signal to the control panel. The solenoid valve is activated, releasing expellant gas into the agent bottle. The fire suppression agent is discharged through nozzles into the hazard area.The system also triggers an alarm and can shut off the engine automatically.
The system continuously monitors temperature through a linear heat detection cable installed in critical zones.
Once the preset temperature is reached, the system automatically activates:
Heat Detection
The thermal sensing cable identifies abnormal temperature rise in protected areas.
Signal Transmission
A signal is sent to the control unit immediately.
Automatic Activation
The control unit triggers the valve system.
Agent Discharge
Dry powder is released through nozzles directly onto the fire source.
Fire Suppression
The powder quickly interrupts combustion and prevents re-ignition.
1. Automatic Temperature Activation
* How It Works: Flexible detection cable is routed through high-risk areas (e.g., engine bay, hydraulic systems) to continuously monitor ambient temperature.
* Activation Process: When a fire occurs and the local temperature reaches the preset threshold of 138°C or 180°C, the detection cable instantly sends a signal to the control panel. The panel immediately activates the solenoid valve, triggering the expellant gas cartridge and discharging the fire suppression agent through the network of pipes and nozzles directly onto the fire source within seconds.
* Integrated Functions: Simultaneously, the system activates an audible/visual alarm and can output a signal to automatically shut down the vehicle's engine, ensuring full safety integration.
2. Manual Electric Activation
* How It Works: An clearly labeled "MANUAL START" button is conveniently located on the control panel within easy reach of the operator.
* Activation Process: If the operator detects the initial signs of a fire, pressing this button directly energizes the solenoid valve, bypassing the detection cable and releasing the agent immediately.
* Key Advantage: Provides operators with immediate intervention capability, serving as a crucial and direct backup to the automatic mode.
3. Mechanical Emergency Activation
* How It Works: This is a purely pneumatic (mechanical) activation method, independent of the vehicle's electrical system. A manual actuator pull-box is typically installed externally on the vehicle or within the cabin.
* Activation Process: In an emergency, pulling or pressing this mechanical actuator releases high-pressure gas directly, which acts on the pneumatic valve to open the agent cylinder.
* Key Advantage: Guarantees system activation even in extreme scenarios like total vehicle power loss or control panel failure, providing the ultimate failsafe protection.
Self-Diagnostic System
The system features self-check alarm functionality. When detection cables are disconnected or damaged, the control panel will issue an alarm indicating the system is in fault condition, ensuring the equipment always maintains normal working status.
Products Application
Ideal for a wide range of vehicles and machinery. including but not limited to:
- Mining (haul trucks, loaders, drilling rigs)
- Construction (excavators, bulldozers)
- Transportation (buses, special vehicles)
- Agriculture & forestry equipment
- Waste management and recycling machinery
It is particularly effective in protecting engine compartments, hydraulic systems, and electrical areas, where most fires originate.
Installing a vehicle fire suppression system helps:
- Protect high-value equipment from fire damage
- Reduce downtime and operational losses
- Improve operator safety
- Meet international safety regulations
- Lower insurance risks and maintenance costs
In addition to the cartridge model, we also have pneumatic model and electrical models fire suppression systems.

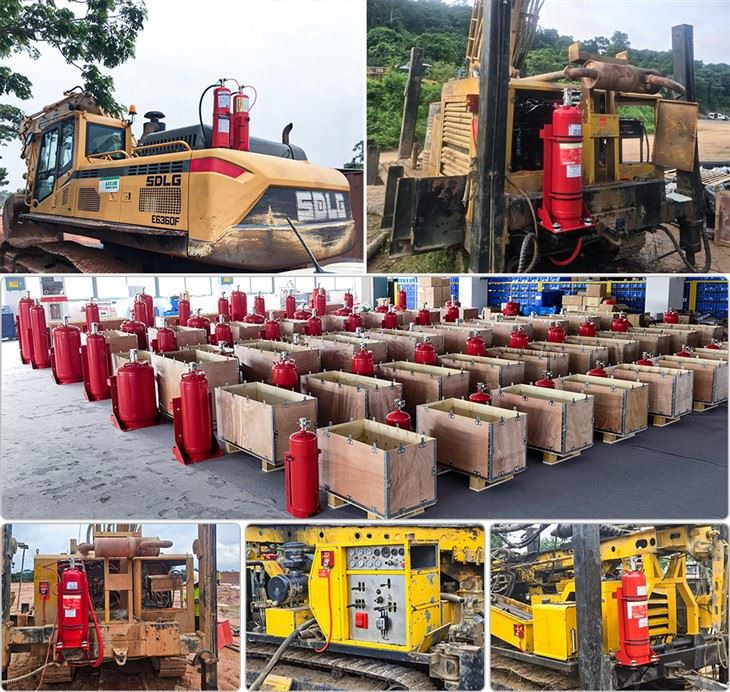

Here are some pictures for reference.

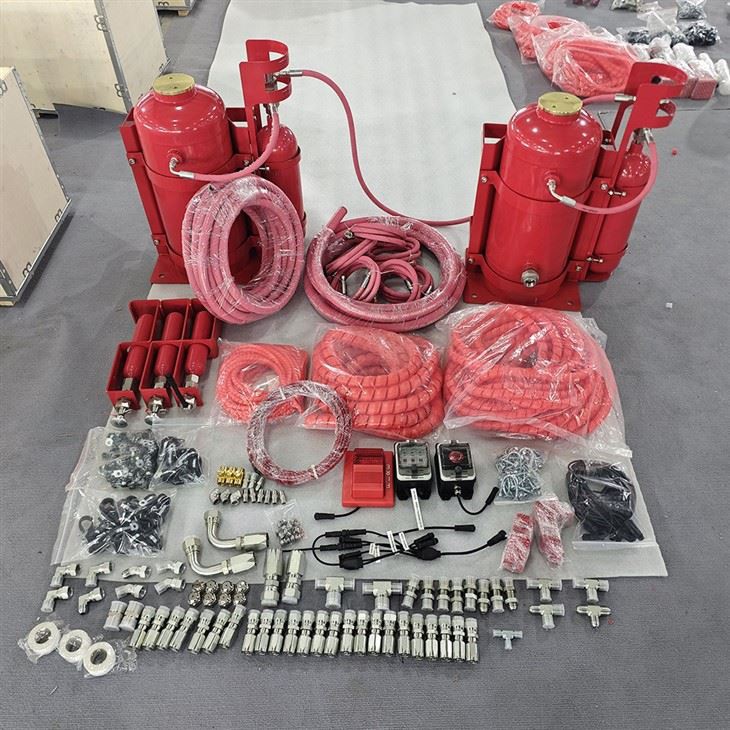

Products Packing and Shipping
The system is professionally packaged for secure international shipping, with each component carefully protected to prevent damage during transportation. Our packaging ensures that all system components arrive in perfect condition, ready for immediate installation.
