Cartridge Type C Serials Mining Machine Automatic Fire Suppression Systems

Cartridge Type Mining Machine Automatic Fire Suppression Systems For Truck/ Vehicle/ Excavator/ Mining /Bus

The Vehicle Fire Suppression System is a pre-engineered for protection of off-highway vehicles, commercial vehicles,or industrial type applications. Its applications include surface mining equipment, under ground mining machines,forest harvesting equipment, construction equipment, farming machinery, and transportation vehicles such as municipal busses.

The Vehicle Fire Suppression System consists of three major components:
●A container to store the dry chemical extinguisher agent;
● An actuation system operated manually or automatically.
●and an agent distribution system which delivers the agent from the tank through hydraulic hose and fixed nozzles to the hazard areas.

Automatic detection,either electric or pneumatic,and actuation,is recommended.The vehide fire system is
actuated manually by a pneumatic actuator located on the dashboard or on the exterior of the vehicle.
The fire agent is delivered from the tank through discharge hose and nozzles into the fire areas.

1) Technical paramters sheet





product Working Principle

01.Auto Model

The detection cable is flexible,it connect tocontrol panel,and
detect the temperature anywhere in protected space, once
temperature reach 180℃C(or 138°C),the detection cable send
signal to control panel, and control panel will activate the
solenoid valve to openit, the=n pressure will go into the fire
agent bottle,and thefireagent wasdischargedfromdischarge
pipes and nozzles, and activate the fire alarm at the same time,
and thecontrolpanel willoutputsignaltovehiclecontrollerfor
shutting off the engine.



02.Manual Model

On the control panel,there is a manual button,reset button,
lights,etc.in Emergency pushing the manual button can
activate the fire system too.
We can also use the manual actuationdeviceto start the fire
system,When you press the actuactor(3),then the released
pressure will be delivered to pneumatic actuator(5). Then it
will open the expellant gas cartridage(6), the released
expellant gas will be delivered to the fire agent bottle(8).
Then the fire agent willdischarge to the fire areas from the
pipe and nozzles.
If the detection cable not connected to control panel or
damaged the,thecontrolpanelwill alarm.

step1:There is 3 temperature sensor installed in the engine room, temperature sensor feedback the the temperature to the control panel. The control panel can indicate the temperature at anytime. The control panel was installed in the driver room, driver can see the temperature at anytime.

step2:Once the Temperature of engine room increase to 100ºC, the control panel will activate the fire alarm. Driver will stop and check the situation. If necessary, driver will push the manual button on the control panel to activate the system.

step3:Once the temperature still increasing, and reach to 140ºC, the temperature sensor feedback the signal to control panel, the control panel will activate the solenoid Valve, the solenoid Valve open and discharge agent to extinguish fire.

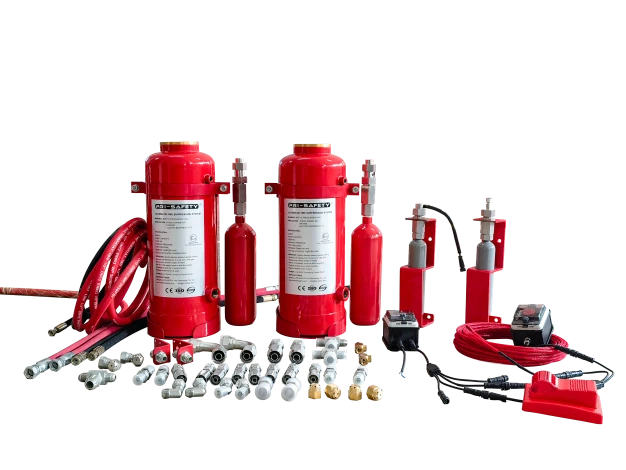

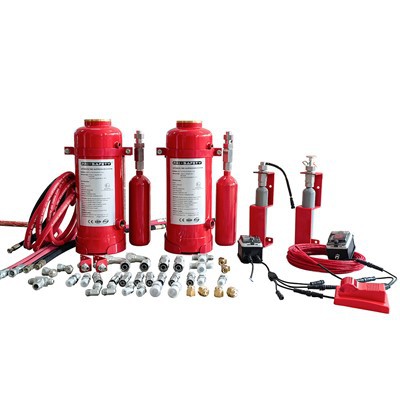

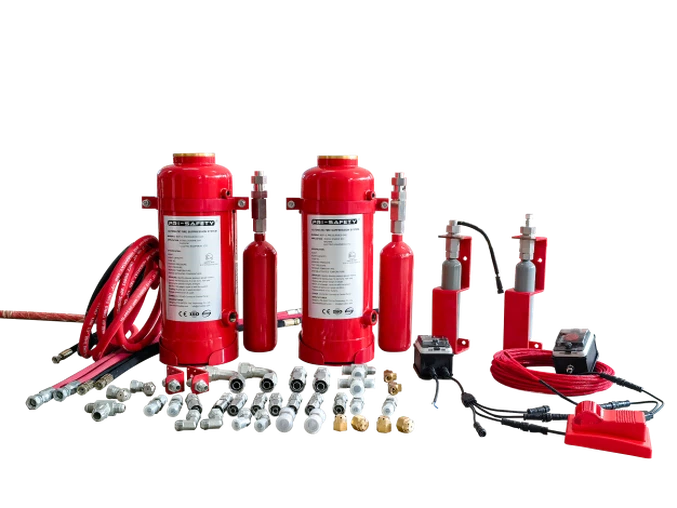

PRI-SAFETY Vehicle & Machine Fire System include the Fire Bottle, Solenoid Head Valve, Manual Aactuator, Nozzles, Pipe&Fittings, Brackets, Linear Detector, Control Panel, Fire Alarm,Etc. It was activated automatically or by emergency manual(Electric Manual Button or Pneumatic Manual Button).


Mass Transit: We know that all transit buses are not the same, so we offer different suppression agent options to protect your fleet needs.
School Bus: Children's lives are precious and protecting them from fire hazards has been an initiative for years. Fire suppression systems can be the difference between life and death; therefore, the Advantage stands out when choosing a fire suppression system for your school bus fleet. When making this choice, consider the Advantage. Our experienced team has equipped vehicles with quality fire safety solutions for three decades.
Small Bus: The Small Vehicle System is designed specifically for use with front engine vehicles
Airport Shuttle and other small front engine applications. The kit includes all hardware components required for a complete turn-key Automatic Fire Suppression System.
Mining: Fires on mining equipment with large volumes of hydraulics and diesel fuels can reignite after a fire is suppressed if the flammable fuel is not shut off, or the ignition sources aren't cooled. we offers customized solutions and protection.
Waste: Fire protection for landfill vehicles present a difficult challenge. The machines collect combustible Class A materials in the engine compartment which can absorb flammable liquids and ignite. If the fire is not detected and suppressed rapidly it can spread throughout the machine and ignite the surrounding combustible materials on the landfill or transfer station. vehicle fire suppression systems automatically detects the fire and discharges our fire suppression agents knocking the fire down in seconds.
Forestry: Fires on forestry equipment with large volumes of hydraulics and diesel fuels can reignite after a fire is suppressed if the flammable fuel is not shut off, or the ignition sources aren't cooled. System provides the best possible fire protection option by combining the rapid knockdown power of dry agent with the cooling effect of liquid agent

PRI-SAFETY specializes in the manufacture and exportation of Automatic Fire Systems, Throw Type Fire Extinguishers, CAFS Compressed Air Foam Fire Systems, Fire Extinguishers, Fire Hose Reels, Fire Hoses, Fire Cabinets, Valves, Pressure Gauges, Couplings, Smoke Alarms, Fire Blanket and other fire equipment, etc. We focus on providing one-stop fire-fighting products and professional service.

We have attained ISO9001:2000, CE, EN3, EN1869 and EN694 certifications. Almost all products that we provide are manufactured and tested according to the international standard. We also supply OEM service, we can design and produce the products as client's special request. PRI-SAFETY also has very good after-sales service, we have one professional,high efficient and warmly sales team. We promise that all feedbacks from clients would be replied within 8 hours during working days. We always try our best to provide better service to meet our clients' demands. Our company rule is saving time and cost for clients, taking good profit and well development for clients. We supply well growing space and training for each staff, help staffs to achieve their dreams. Then clients and staffs push our company development.
