We are known as one of the most professional manufacturers and suppliers of various safety products in China. If the novec1230 fk-5112 clean gas fire suppression system fm200 fire suppression system for data centers computer rooms meets your requirement, welcome to the quality equipment made in China. Our factory will offer you one stop service and one year warranty.
Products Description
At present, we have designed two types of appearance of cabinet and pipe network, and divided into a single bottle group, multi-bottle group has different size specifications, can be used for different occasions.
When the control mode selection key on the automatic fire alarm and fire extinguishing controller is set to the "auto" position, the fire extinguishing system is under automatic control. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal through the automatic fire alarm and extinguishing control After the logic analysis of the device, it sends out a combined sound and light alarm signal, and sends out a linkage command at the same time to close the linkage device. After a delay, a fire extinguishing command is issued, the starting valve is opened to release the starting gas, and the starting gas is opened through the control gas pipeline valves and container valves release the fire extinguishing agent and implement fire extinguishing.
Products Advantage
1. Easy Operate: Convenient and easy to operate
2. CCC Authentication: Quality assurance, safety genuine
3. Alarm system: Real-time detection, alert alerts
4. Automatic: Fire extinguishing automatically to reduce losses
5. Not Conductive: Safety agent to protect the machine
6. Environmentally: Green is easy to clean, no residue
7. Innocuity: Safe medicine, no poison harmless
8. Fast Fire Extinguishing: Fire extinguishing quickly reduces damage
Products Details & Specification
A. PAREMATERS
Need Customized one-to-one according to the scene
The specific specifications need to be customized one-to-one according to the scene you use and the height and size of the site.
If you have any needs, please contact us and we will customize a solution for you. The above is the specification details of Cylinder Specification---4.2MPa/5.6MPa(Filling Pressure)
|
FK-5112 Cylinder Specification---4.2MPa/5.6MPa |
|||
|
No. |
Specification |
Technical Parameter |
|
|
1 |
Filling pressure |
4.2Mpa |
5.6Mpa |
|
2 |
Scale of Protective region for one zone |
Area:max single-zone is 800m² volume:max single-zone is 3600m³ |
|
|
3 |
Spraying time |
10s |
|
|
4 |
Filling density |
≤950kg/m3 |
≤1080kg/m3 |
|
5 |
Power |
DC24V/1.6A |
|
|
6 |
Nitrogen Pressure of Driving Device |
6.0±1.0Mpa(20ºC) |
|
|
7 |
Condition of reserving room for container |
temperature: -10~50ºC, relative humidity: ≤97% |
|
|
8 |
Max working pressure |
5.6Mpa |
8.0Mpa |
|
9 |
Min working pressure |
4.2Mpa |
5.6Mpa |
|
10 |
Capacity |
16/32/40/70/82.5/90/100/120/140/150/250/345/350/450/500 L |
|

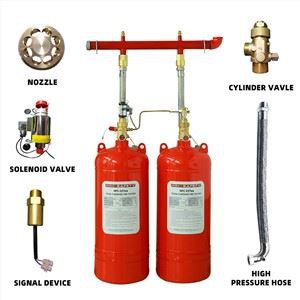

B. COMPONENTS
1. Storage cylinder with cabinet: Cylinder, container valve and solenoid valve, dip tube, etc.
2. High pressure hose: Connect cylinder valve and liquid check valve
3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent
4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.
Products Application
The FM200 HFC-227ea Fire system is widely used in various scenarios, including but not limited to
computer rooms, data processing centers, semiconductor manufacturing facilities, industrial process control rooms, petrochemical facilities, chemical storage rooms, libraries and museums, critical military applications, Bank vaults, Libraries, Book stores, Electronic data processing, Telephone exchanges, Communication centers, Transformer and switch room, Control rooms, Test laboratories, Flammable liquid storage.
-
Bank vaults
-
Libraries
-
Book stores
-
Electronic data processing
-
Telephone exchanges
-
Communication centers
-
Transformer and switchroom
-
Control rooms
-
Test laboratories
-
Flammable liquid storage
Packing & Delivery
Other related products
1. We also have FM200/HFC-227ea Total Flooding Fire System, FM200/HFC-227ea Fire Extinguishing system Pipe Network Type FM200/HFC-227ea Fire Extinguisher
FM200/HFC-227ea Total Flooding Fire System (Three Types)
2. We also have FK-5-1-12 / Novec-1230 Clean Agent Total Flooding Fire Systems, FK-5-1-12 / Novec-1230 Fire Extinguishing system Pipe Network Type FK-5-1-12 / Novec-1230 Fire Extinguisher
3. High Preesure Water Mist Fire Suppression System
High Preesure Water Mist Fire Suppression System
Pump Pressurized Type High Preesure Water Mist Fire Suppression System
A water mist system is a fire protection system which uses very fine water sprays (i.e. water mist). The small water droplets allow the water mist to control, suppress or extinguish fires by:
Cooling both the flame and surrounding gases by evaporation---Absorb Heat&Cooling
Displacing oxygen by evaporation---Isolate Oxygen
Attenuating radiant heat by the small droplets themselves---Isolate Heat
The effectiveness of a water mist system in fire suppression depends on its spray characteristics, which include the droplet size distribution, spray density and spray dynamics, with respect to the fire scenario, such as the shielding of the fuel, fire size and ventilation conditions.
So really high pressure system, specialized tubing or piping that's used for that. Now, there are differences between water mist systems and the droplet sizes that they produce, so typically the smaller the water droplet size the better it is at extinguishing a hot fire. Larger droplets can work faster on lower temperature fires, but they all work for the systems that they're approved for or listed for.
Cylinder Pressurized Type High Preesure Water Mist Fire Suppression System
In a cylinder type water mist fire system, the water (or water mixed with an additive) is stored in pressurized cylinders rather than in a large water tank or being connected to a continuous water supply. These cylinders are typically filled with water and pressurized with a gas, such as nitrogen.
Company Profile
PRI-SAFETY factory was built in 2005, is a national high-tech enterprise focusing on the research, design and manufacture of automatic fire suppression systems and fire fighting equipment.
And the main products we produce include : Vehicle and Mechanical Equipment Automatic Fire Suppression System, Kitchen Fire System, Heptafluoropropane Gas Fire Suppression System, FM200/FK-5112 Tool Flooding System, Water Mist Fire System, Compressed Air Foam Equipment(CAFS), Fire Trace Fire system, etc
We not only produce fire system but also design them and provide various fire solution, we have a professional technical team to help us with that, and also perfect aftersale-service.
Any question, like installlation, feel free to contact us, we are always online. And we has passed ISO9001:2015 quality management system certification, and its has CE and EN
certification, UN ECE R107 certificate for vehicle safety.
