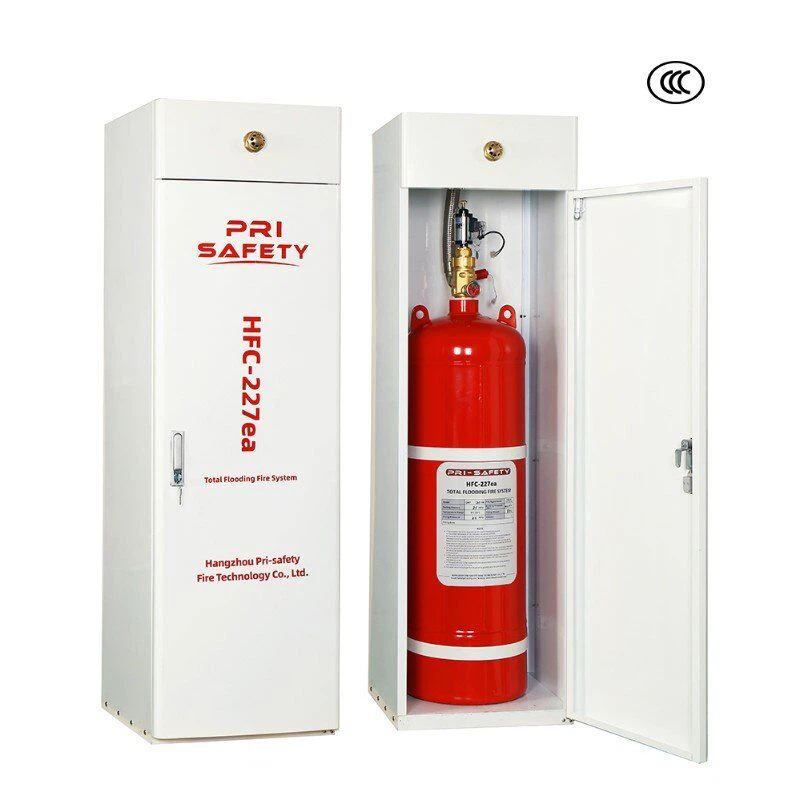

FM200 Gas Total Flooding Automatic Fire Suppression System

FM200 Gas Total Flooding Automatic Fire Suppression System 1. PRINCIPLES OF SYSTEM Cabinet type FM200 fire system devices are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators...

Send Inquiry

Chat Now

Description

Technical Parameters

Hangzhou PRI-SAFETY Fire Technology Co., Ltd. is known as one of the most professional manufacturers and suppliers of various safety products in China. If the fm200 gas total flooding automatic fire suppression system meets your requirement, welcome to buy quality equipment made in China here from our factory. Our factory will offer you one stop service and one year warranty.

FM200 Gas Total Flooding Automatic Fire Suppression System

1. PRINCIPLES OF SYSTEM

Cabinet type FM200 fire system devices are generally used in conjunction with fire detectors, fire alarm fire extinguishing controllers, emergency start/stop buttons, sound and light alarms, deflation indicators and other fire fighting equipment. When a fire occurs in the protection area, the temperature and smoke detectors will send out a fire signal. After the logic analysis of the automatic fire alarm and extinguishing controller, it will send out a sound and light composite alarm signal, and at the same time send out a linkage command to turn off the linkage equipment. After a delay time, a fire extinguishing command is issued, the solenoid valve driver is opened, the container valve is opened, the fire extinguishing agent is released, and the fire is extinguished; if the duty officer discovers a fire, he can press the emergency start button outside the protective area door to implement the fire extinguishing operation ; There is also a manual button on the solenoid valve driver, and mechanical emergency manual operation can also be used to extinguish fire in an emergency.

2. PRODUCT ADVANTAGES

Very swift fire suppression. Reach extinguishing level ≤10s.
Safe to people. People is safe when exposed at the FM200 gas discharge level.
Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
Easy to clean. No residue left, and minimize damage to sensitive equipment.
Environment friendly. Zero ozone depletion potential and zero global warming potential.
Simple installation, with small storage space.

3. PRODUCT SPECIFICATION

A. PAREMATERS

Item	Model	Volume(L) x Qty(unit)	Dimension	Maximum loading density of fire extinguishing agent	Stored Pressure (20ºC)	Max Working Pressure(50ºC)	Activate voltage/ current	Operating Temperature Range
1	GQQ40/2.5	40X1	450×400×1450	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC
2	GQQ70/2.5	70X1	500×450×1450	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC
3	GQQ90/2.5	90X1	500×450×1600	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC
4	GQQ100/2.5	100X1	500×450×1700	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC
5	GQQ120/2.5	120X1	500×450×1850	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC
6	GQQ150/2.5	150X1	550×500×1850	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC
7	GQQ180/2.5	180X1	1000×450×1600	≤1120kg/m3	2.5Mpa	4.2Mpa	DC24 V/1.2A	0ºC-50ºC

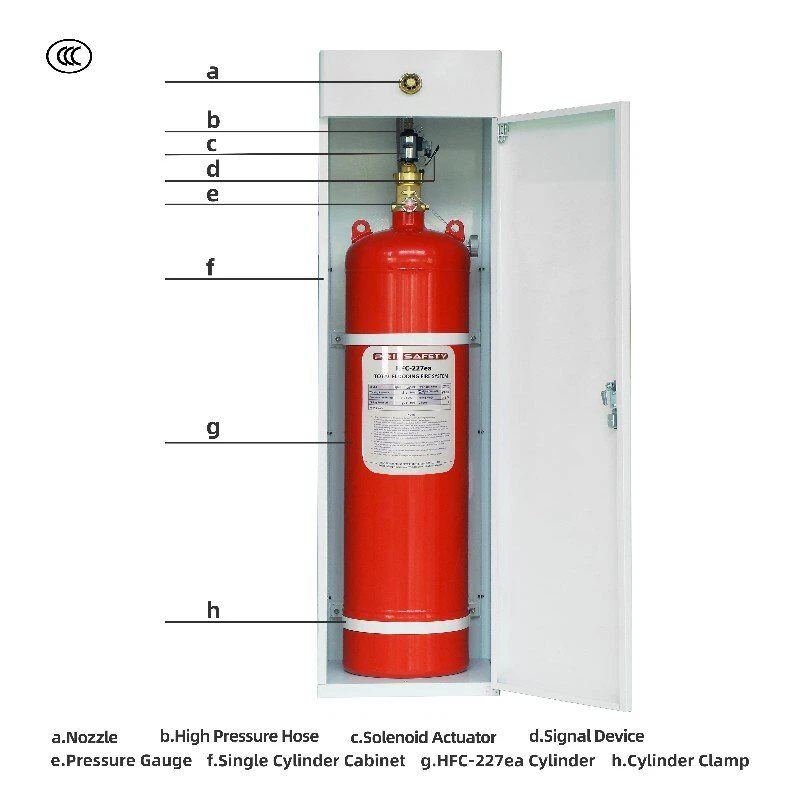

B. COMPONENTS

1. Storage cylinder with cabinet: Cylinder, container valve and solenoid valve, dip tube, etc.
2. High pressure hose: Connect cylinder valve and liquid check valve

3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent

4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.
