How to Choose the Right Clean Agent Fire Suppression System
"FM200 vs Novec 1230 – Configuration Comparison and Selection Guide"
As fire protection requirements continue to evolve, clean agent fire suppression systems such as FM200 (HFC-227ea) and Novec 1230 (FK-5-1-12) have become the preferred solutions for protecting critical facilities and high-value assets.
However, with multiple system types, cylinder materials, and configuration options available, many project owners and engineers face challenges when selecting the most suitable solution. This article provides a practical comparison of FM200 and Novec 1230 systems, and explains how to choose the right configuration based on real project needs.
Clean agent fire suppression systems extinguish fires without water, foam, or powder. They are designed for enclosed spaces where traditional extinguishing methods could cause secondary damage.
Both FM200 and Novec 1230 systems operate as total flooding systems, releasing the agent rapidly to reach an extinguishing concentration within seconds.
1. Overview of Clean Agent Fire Suppression Systems
| Item | Description |
|---|---|
| System Type | Total flooding clean agent fire suppression |
| Extinguishing Method | Rapid gas discharge to suppress fire |
| Typical Discharge Time | ≤ 10 seconds |
| Residue After Discharge | None |
| Impact on Equipment | No corrosion, no secondary damage |
| Applicable Spaces | Enclosed rooms with sensitive equipment |
2. FM200 vs Novec 1230 – Agent Comparison
| Parameter | FM200 (HFC-227ea) | Novec 1230 (FK-5-1-12) |
|---|---|---|
| Chemical Type | Hydrofluorocarbon | Fluorinated Ketone |
| Fire Suppression Mechanism | Heat absorption + chemical reaction interruption | Heat absorption |
| Ozone Depletion Potential | 0 | 0 |
| Global Warming Potential | High | < 1 |
| Atmospheric Lifetime | Long | Approx. 5 days |
| Environmental Compliance | Limited in some regions | Widely accepted |
| Typical Project Type | Standard industrial & commercial | Green buildings & high-end data centers |
3. System Type Comparison: Pipe Network vs Cabinet System
| Item | Pipe Network System | Cabinet System |
|---|---|---|
| Installation Method | Fixed piping and nozzles | Self-contained cabinet |
| Room Size | Large or multiple rooms | Small to medium rooms |
| Scalability | High | Limited |
| Installation Time | Longer | Short |
| Retrofit Suitability | Medium | High |
| Typical Use Case | Data centers, industrial facilities | Server rooms, UPS rooms |
4. Cylinder Material Comparison
| Cylinder Material | Key Features | Recommended Environment |
|---|---|---|
| HP345(GB/T6653) Steel | Cost-effective, widely used | Standard indoor environments |
| Stainless Steel | Excellent corrosion resistance, longer lifespan | Humid, coastal, or harsh industrial environments |
5. Application-Based Selection Guide
| Application Scenario | Recommended System Type | Recommended Agent | Cylinder Material |
|---|---|---|---|
| Small server room | Cabinet system | FM200 or Novec 1230 | HP345(GB/T6653) Steel |
| Large data center | Pipe network system | Novec 1230 | Stainless steel |
| Electrical control room | Pipe network system | FM200 | HP345(GB/T6653) Steel |
| Coastal or humid environment | Pipe network system | Novec 1230 | Stainless steel |
| Retrofit project | Cabinet system | FM200 | HP345(GB/T6653) Steel |
6. How to Choose the Right System – Decision Factors
| Decision Factor | Selection Logic |
|---|---|
| Room volume | Larger rooms require pipe network systems |
| Environmental regulations | Strict regulations favor Novec 1230 |
| Installation conditions | Limited space favors cabinet systems |
| Ambient environment | High humidity favors stainless steel cylinders |
| Budget consideration | FM200 offers lower initial cost |
| Long-term sustainability | Novec 1230 offers lower lifecycle impact |
7. Importance of Professional System Design
| Design Element | Impact on System Performance |
|---|---|
| Agent quantity calculation | Ensures effective extinguishing concentration |
| Nozzle layout | Guarantees uniform gas distribution |
| Enclosure integrity | Maintains required agent concentration |
| Control logic | Ensures safe and reliable system activation |
A properly designed system, supported by one-stop service including design, manufacturing, installation guidance, and training, significantly reduces project risk and improves long-term reliability.
8. Conclusion
| Key Takeaway | Summary |
|---|---|
| FM200 vs Novec 1230 | Both are effective clean agents with different environmental profiles |
| System type | Pipe network for large areas, cabinet for small rooms |
| Cylinder material | Stainless steel preferred for harsh environments |
| Final decision | Based on room size, regulations, environment, and budget |
Selecting the right clean agent fire suppression system is not about choosing the most expensive option, but about selecting the most appropriate configuration for the specific application.
More information you can check following product details:

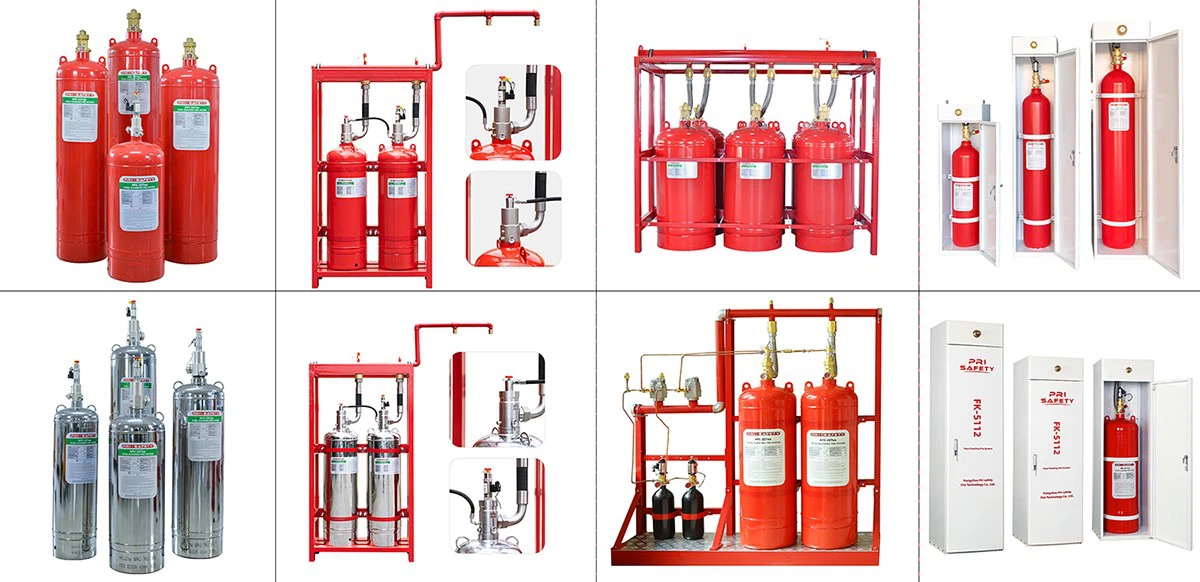

To meet worldwide project requirements, our company offers six fully engineered fire-suppression configurations, covering all combinations of:
