Automatic FK-5112 Flooding Fire Suppression System With Fire Alarm System

Hangzhou PRI-SAFETY Fire Technology Co., Ltd. is known as one of the most professional manufacturers and suppliers of various safety products in China. If the Automatic FK-5112 Flooding Fire Suppression System With Fire Alarm System meets your requirement, welcome to buy quality equipment made in China here from our factory. Our factory will offer you one stop service and one year warranty.



Automated FK-5112 Flooding Fire Suppression System With Fire Alarm System



FK5112 Total Flooding Fire Suppression System is an advanced, environmentally responsible clean agent fire protection solution engineered for rapid, reliable fire extinguishment in enclosed critical spaces. Utilizing FK5112 as the extinguishing medium, the system uniformly distributes the clean agent throughout the protected enclosure to quickly suppress flames without compromising equipment safety, human occupancy, or the environment.Stored as a liquefied compressed gas, FK5112 discharges as a colorless, transparent, electrically non-conductive vapor that does not obstruct vision or interfere with evacuation. It leaves zero residue upon vaporization, eliminating post-discharge cleanup, corrosion, or damage to delicate electronics and high-value assets. The agent operates through a synergistic combination of chemical interruption and physical heat absorption, delivering fast fire knockdown for Class A, Class B, and Class C hazards.

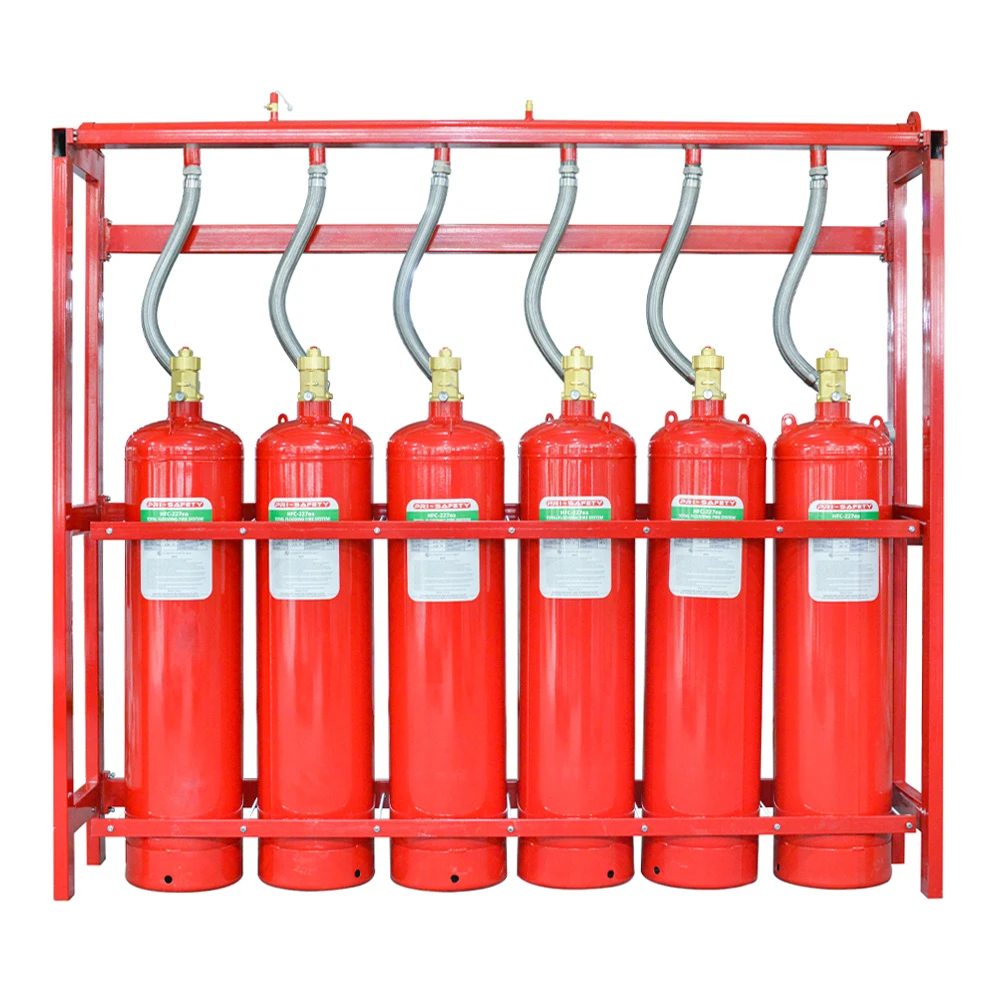

Components of FK-5-1-12 Total Flooding Fire Suppression Systems1. Storage cylinder: Cylinder, container valve (with pilot valve, pressure indicator), dip tube, etc.2. High pressure Flexible hose: Connect cylinder valve and liquid check valve .3. Discharge Nozzle: Fitted at the end of pipe network to discharge fire suppressing agent.4. Control System: Control panel, smoke and heat detector, fire alarm, discharge indicator light, etc.



Advantage:

Very swift fire suppression. Reach extinguishing level ≤10s.
Safe to people. People is safe when exposed at the FK-5-1-12 gas discharge level.
Low extinguishing concentration. Nearly no obscure to vision in person evacuation.
Easy to clean. No residue left, and minimize damage to sensitive equipment.
Environment friendly. Zero ozone depletion potential and zero global warming potential.
Simple installation, with small storage space.





Whole Fire System's Specification:

Filling Pressure	2.5Mpa, 4.2Mpa
Max Working Pressure	4.2Mpa, 5.6Mpa
Capacity of FM200 Cylinder	40L 70L 90L 120L 150L 180L 250L 345L 500L
Material of Cylinder	Steel or Stainless Steel
Filling Density	1.13



---1. Specification of Cylinder

Steel cylinder and Stainless steel cylinder

Item	Capacity	Thread	Diameter	Thickness	Max working pressure
1	40L	PZ56/2-8UN.2A	300	4	5.6Mpa
2	90L	PZ56/3-1/4''-8UN.2A	350	4.5	5.6Mpa
3	120L	PZ64X2/3-1/4''-8UN.2A	350	4.5	5.6Mpa
4	150L	PZ64X2/3-1/4''-8UN.2A	400	5	5.6Mpa
5	180L	PZ80X2/3-1/4''-8UN.2A	400	5.5	5.6Mpa
6	250L	PZ80X2/3-1/4''-8UN.2A	500	8	5.6Mpa
7	345L	PZ80X2/3-1/4''-8UN.2A	600	8.3	5.6Mpa
8	500L	PZ80X2/3-1/4''-8UN.2A	600	10	5.6Mpa



---2. Specification of Valve

Normally it has 3 model valve,







Code No.	AV25/4.2-PRIAV25/5.3-PRI	AV50/4.2-PRIAV50/5.3-PRI
Item	G1''	G2''
Neck thread	2-8UN.2A	3 1/4-8UN.2A
Actuator thread	G1''	G1''
High pressure flexible thread	G1''	G2''
Pressure gauge thread	1/8'' NPT	1/8'' NPT
Working pressure	6.7Mpa	6.7Mpa
Test pressure	10.05Mpa	10.05Mpa
Applicable cylinder	<=70L	90L 120L 150L 180L



For Normal Quality Valve



Item	DN32	DN40	DN50
Code NO.	V32/4.2-PRIV32/5.3-PRI	V40/4.2-PRIV40/5.3-PRI	V50/4.2-PRIV50/5.3-PRI
Neck Thread	PZ56	M64X2	M80X2
Actuator Thread	M18X1.5	M18X1.5	M18X1.5
Diptube Thread	RC 1-1/4''	RC 1-1/2''	RC 2''
High Pressure flexible thread	M48X2	M56X2	M68X2
Pressure gauge thread	M10x1	M10x1	M10x1
Working Pressure	4.2Mpa/5.3Mpa	4.2Mpa/5.3Mpa	4.2Mpa/5.3Mpa
Applicable cylinder	<=100L	120L 150L	180L 250L



---3.Nozzles:



for NOZZLE

Item	DN25	DN32	DN40	DN50
Code No.	N25-PRI	N32-PRI	N40-PRI	N50-PRI
Thread	RC 1''	RC 1-1/4''	RC 1-1/2''	RC 2''
Material	Brass

---4. High Pressure Pipe, Safety valve for Manifold Pipe, Liquid Check Valve, Gas Check Valve, Pressure Switch, Pressure Gauge, etc.



FK5112 and FM200 clean agent fire suppression systems are designed to provide rapid and reliable fire protection for critical facilities, electrical rooms, data centers, control rooms, telecommunication facilities, archives, and other high-value assets. These systems are typically integrated with a complete fire detection and alarm network to ensure automatic fire detection and extinguishment.A standard system configuration includes smoke detectors, heat detectors, fire alarm control panels, extinguishing control units, emergency release stations, abort switches, audible and visual alarms, pressure relief devices, and other associated fire safety equipment.



Working Principle of FK-5-1-12 Total Flooding Fire Suppression System

The FK-5-1-12 Total Flooding Fire Suppression System is designed to detect, suppress, and extinguish fires quickly while minimizing damage to valuable equipment and assets. The system combines advanced fire detection technology with a clean agent extinguishing system to provide fully automatic fire protection.



When smoke or heat detectors identify the early signs of a fire, they immediately transmit signals to the fire alarm and extinguishing control panel. After confirming the fire condition, the control panel activates audible and visual alarms to warn occupants and initiates a pre-set discharge delay, allowing personnel sufficient time to evacuate the protected area.

Once the delay period has expired, the control panel sends an electrical signal to the release actuator, opening the cylinder valve. The stored FK-5-1-12 clean agent is then discharged through a network of pipes and specially designed nozzles, rapidly flooding the entire protected enclosure with the required extinguishing concentration.



The FK-5-1-12 agent extinguishes the fire primarily by absorbing heat from the combustion process, reducing the flame temperature below the level required to sustain combustion. Because it suppresses fire without significantly reducing oxygen concentration, it is safe for occupied spaces when designed and installed according to applicable standards.

The system also supports manual emergency activation through a manual release station and mechanical release device, ensuring reliable operation even in the event of electrical failure. After discharge, the clean agent leaves no residue, making it ideal for protecting sensitive electronic equipment, data centers, electrical rooms, archives, museums, telecommunications facilities, and other mission-critical environments.





• Data centers, server rooms, and cloud computing facilities
• Telecommunication base stations and network control rooms
• Power control rooms, switchgear rooms, and electrical substations
• Medical equipment rooms, laboratory precision instruments
• Museum collections, archives, libraries, and cultural relic storage
• Financial data rooms, bank vaults, and security control centers
• Petrochemical control rooms, marine engine rooms, and industrial control cabinets
• Clean rooms, precision manufacturing workshops, and high-value asset storage areas
