reactions that can lead to thermal runaway- a common and dangerous phenomenon in lithium battery fires. This rapid cooling effect ensures that the fire is extinguished quickly and efficiently, minimizing damage and preventing re-ignition.
Product Advantages
Lithium Battery Fire Extinguisher use the special Liquid Agent (PRI900), which make our fire exthinguisher have the following features:
Absorbs a large amount of heat with thermal decomposition
Generate non flammable foam layer and isolate oxygen
Adhesion to battery surface, anti-reburning and lasting protection
Cooling and cooling effect
Release non-combustible gases, form steam and reduce oxygen concentration
Product Specification
|
Capacity |
2L |
4L |
6L |
9L |
|
Out-dia.(mm) |
Ф110 |
Ф135 |
Ф162 |
Ф182 |
|
Cylinder Length (mm) |
317 |
408 |
436 |
500 |
|
Volume(L) |
2.5 |
4.8 |
7.4 |
11.2 |
|
Fill Weight |
2 |
4 |
6 |
9 |
|
Temperautre Range |
0+60℃ |
|||
|
Working Pressure(bar) |
14 |
|||
|
Testig Pressure(bar) |
27 |
|||
|
Discharge Time(s) |
16 |
20 |
30 |
50 |
|
Material |
Carbon Steel |
|||
|
Packing Size(mm) |
370*270*410 |
155*155*510 |
180*180*530 |
200*200*610 |
|
Quantity/20ft(pcs) |
5000 |
2400 |
1700 |
1200 |
|
Capacity |
25L |
50L |
|
Out-Dia.(mm) |
250 |
325 |
|
Cylinder Length(mm) |
625 |
908 |
|
Volume(L) |
30 |
60 |
|
Temperature Range |
0~+60°C |
|
|
Working Pressure(bar) |
15 |
|
|
Test Pressure(bar) |
27 |
|
|
Discharge Time(s) |
120 |
240 |
|
Material |
Carbon Steel |
|
|
Packing Size(mm) |
470*430*960 |
550*450*1110 |
|
Quantity/20ft(pcs) |
150 |
110 |

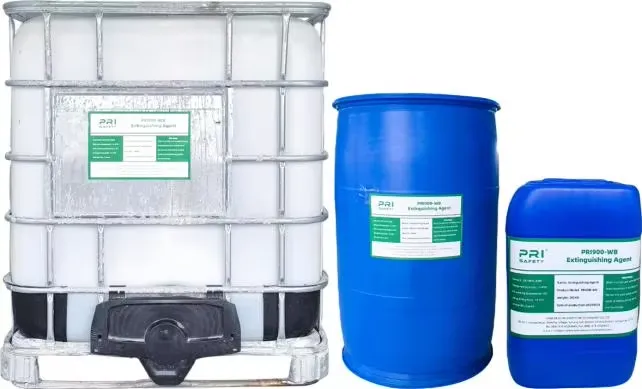

Fire Agent
PRI900 AGENT
1. Specialized Agent:
The extinguishers contain special additives in the water that help to cool the burning lithium battery and inhibit the chemical reactions that cause the fire.
2. Effective Heat Absorption:
The water-based solution rapidly absorbs heat, reducing the temperature of the lithium battery and preventing thermal runaway.
3. Safe for Use on Lithium Batteries
These extinguishers are specifically formulated to be safe and effective for use on lithium battery fires, avoiding adverse reactions that might occur with other extinguishing agents.
4. Non-Toxic and Eco-Friendly
The additives used in the water are typically non-toxic and environmentally friendly, making them safe for use in a variety of environments.
5. Wide Coverage and Penetration
The water-based solution can penetrate the battery pack and reach the internal cells, ensuring comprehensive fire suppression.
Product Application
Packing & Delivery
Company Profile
PRI-SAFETY
20
years
PRI-SAFETY specializes in the manufacture and exportation of Automatic Fire Systems, FM200/FK5112 Total Flooding Fire System, Automatic Tube Fire Extinguisher, Throw Type Fire Extinguishers, CAFS Compressed Air Foam Fire Systems, Fire Extinguishers and other fire equipment, etc. We focus on providing one-stop fire-fighting products and professional service.
8
certificates
We have attained ISO9001:2000, CE, UN ECE R107. Almost all products that we provide are manufactured and tested according to the international standard. We also supply OEM service, we can design and produce the products as client's special request.
21
Patents
We have won a lot of patents for strong creativity and support customize products. Besides, we can also supply solution services. PRI-SAFETY has been customizing a variety of engineering, vehicle and indus-trial equipment automatic fire extinguishing systems for European and American customers, after more than ten years of technical accumulation, forming a perfectand reliable system products.
